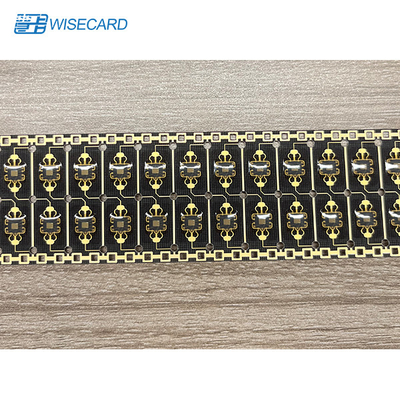

Visa Mastercard CIU9872B 01 Plus 32 bit EMV chip
Product Description:
EMV cards are smart cards, also called chip cards, integrated circuit cards, or IC cards, which store their data on integrated circuit chips, in addition to magnetic stripes for backward compatibility. These include cards that must be physically inserted or "dipped" into a reader, as well as contactless cards that can be read over a short distance using near-field communication technology. CIU9872B_01 Plus chip uses 32-bit secure CPU core and EEPROM memory, supports hardware cryptographic algorithms (DES/AES/ECC/RSA/SHA-n, SM1/SM2/SM3/SM4), supports multiple interfaces: 7816/14443/ I2C / GPIO, for financial applications.
Specification:
| CPU |
Security Features |
| CPU |
32 bit |
Security algorithm |
supports DES/3DES/AES |
| Main frequency |
72MHZ |
supports SM1/SM4/SM3 |
| Timer |
2 * 16/32bit Timer |
supports RSA/ECC/SM2 |
| |
|
Random
number |
Supports true random number, in line
with AIS31-P2 standard |
| Memory |
Memory |
Supports memory security protection
mechanism |
| EEPROM |
152KB |
Sensor |
Supports multiple safety sensor
detection |
Erasing and writing
≥ 500,000 times |
Active shield |
support |
Data storage time
≥ 25 years |
Unique serial
number |
The unique serial number of the chip
cannot be changed |
| |
|
Self-check
function |
Support self-check safety reset |
| |
|
|
|
| Interfaces |
|
Package Form |
| 7816 |
Comply with ISO/IEC 7816
T=0/1 standard |
Module
Package |
Dual interface |
| Supports up to 446400bps |
6PIN Silver/Gold |
| 14443 |
Comply with ISO/IEC 14443
TYPE A standard |
Applications |
| Supports up to 848Kbit/s |
EMV standard payment |
| I2C |
Supports master-slave mode,
support 400KHZ |
1)Supports VISA(VSDC2.8.1g1)+ Mastercard
(MChip Advance 1.2.3)Dual APP |
| GPIO |
2 |
| Electrical Characteristics |
|
Operating
Voltage |
1.6V～5.5V |
2)Supports Mastercard(MChip Advance 1.2.3) |
Operating
temperature |
-25℃~85℃ |
| ESD |
7816interface 6KV(HBM) |
| 14443interface 4KV(HBM) |
|
|
Service:
1. QC: Every single card will be carefully checked by machine or manual work before dispatched.
2. Accept personalized customization.
3. Strict quantity control on processing.
4. On time delivery.
5. Quality assurance: 1year warranty after delivery.
6. Quick response: Your inquiry will be replied in 24 hours.
FAQ:
Q:How long is the warranty time for your products?
A: Our officially promised warranty time is one whole year after delivery at best.
Q: Do you have your own enclosure factory?
A:Yes we do have our own enclosure factory, and we have the best structural Engineer, we hope to provide you with best screen and shape, so OEM is also welcome.
Q:Do you give any discount ?
A: We are Manufacturer, so we are able to give you the best price and best service at the same time.
Q: Is your company a real manufacturer?
A: Our company is the professional manufacturer in Shenzhen, you are the mostly welcomed to visit our factory anytime.
