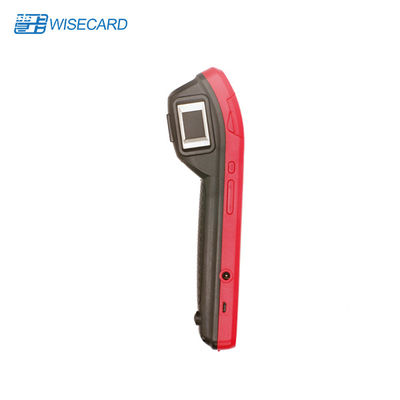

Capacitive Touch Screen Android POS Machine with FBI Certified Fingerprint Reader
Features:
1. Creative Original Design.
2. Arc design with shell process that conforms to ergonomics, easier to hold with one hand, more modern & more fashionable.
3. 5.5 inch capacitive screen, less than 1kg, mainstream size of market mobile devices.
4. With built-in 58mm thermal printer, 70mm/s printing speed, 50km print head span, About 5000 times continuous flip.
5. Built-in battery 5800mAh. work continuously for 25 hours, dark screen standby time of above 18 days, 5500 order printing jobs.
6. 1G RAM+8G (2G+16G) Flash can support 3G, 4G, WiFi, Bluetooth, NFC.
7. 1D bar-code or 2D QR Code quick reading.
8. FBI certified Fingerprint reader.
Quick Details
Place of Origin:China
Brand Name:WCT
Power:40
After-sales Service Provided:Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support
Warranty:1 Year
| WCT-S8 Android POS Configuration |
| Type |
Product Spec |
| Platform |
Processor |
MTK MT8735 ( 4-Core ARM Cortex-A53,1.3GHz ) |
| RAM |
1GB / 2GB LPDDR3 |
| FLASH |
8GB / 16GB EMMC |
| OS |
Android 7.0 Security Payment OS |
| Security Processor |
MAXIM MAX32555 (DeepCover Secure microcontroller) |
| Wireless |
Wireless Standard |
LTE-FDD/TDD-LTE/TDS-CDMA/WCDMA/CDMA2000/EDGE/GPRS |
| 4G |
LTE-FDD : B1/B3/B8 (TBD) |
| TDD-LTE : B38/B39/B40/B41 |
| 3G |
UMTS/HSPA/HSPA+/DC-HSPA+ : B1/B8 |
| TDS-CDMA : B34/B39 |
| EVDO : BC0 |
| 2G |
EDGE/GPRS : B3/B8 |
| WLAN |
2.4GHz ISM 2402MHz~2482MHz |
| BT 4.1 LE |
2.4GHz ISM 2402MHz~2480MHz |
| USIM |
Card Slots |
4 PSAM slots, 2 SIM slots |
| GPS |
GPS |
GPS, GLONASS |
| LCD and Touch Panel |
LCD Pixels |
720*1280 IPS |
| LCD |
5.5 inch |
| Touch Panel |
G+F+F, Capacitive Color Touch,Multi Touch, signature capable, video capable |
| Keypad |
Physical key |
Power ON/OFF, Volumn up, Volumn down. |
| Virtual Keypad |
Home Key, Function key, Numeric Keys. |
| Audio |
Speaker |
1 W x 1 |
| Microphone |
Voice input |
| USB |
USB Standard |
USB Type C 2.0 |
| Other |
Charge Battery, OTG support |
| Camera |
REAR |
8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video. |
| FRONT |
2Mega Pixels, CMOS, JPEG picture, Video. |
| NFC |
Standard |
ISO14443 type A/B ( ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support ) |
| Spectrum |
13.56MHz |
| IC card |
Contactless Card |
NFC 13.56 MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC 14443&7816 |
| EMV card |
Smart Card |
EMV & PBOC Compliant |
| MSR |
Magnetic Card |
ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec. |
| Battery |
Battery type |
Li-ion polymer battery |
| Capacity |
3.7V, 5800mAh |
| Charger |
5V/2A |
| Certification |
ICC |
EMV contact L1 / PBCO L1 |
| EMV contact L2 / PBOC L2 |
| NFC |
EMV contactless L1 / qPBOC L1 |
| EMV contactless L2 / qPBOC L2 |
| Security |
PCI 5.0 |
| UPTS 2.0 |
| Operating environment |
Temperature |
-5 to +50 °C |
| Relative humidity |
10 % to 85 % RH |
| Storage environment |
Temperature |
-10 to +60 °C |
| Relative humidity |
10 % to 90 % RH |
| Size and Weigt |
Dimension and Weight |
203mm*85mm*53mm, 480g with battery |
| Micro Printer |
Printing method |
Thermal-line dot method |
| Paper |
Thermal roll paper (standard) 57*40 mm |
| Effective Printing area |
48mm |
| Speed |
Maximum 70mm/sec(480 dot line/sec) |
| Printing resolutions |
8 dots/mm |
| Character |
12*24dots and 24*48 dots |
| Number of columns |
32columns/line |
| Printing head life |
Pulse resistance:100 million pulses/dot (under our standard conditions); |
| Abrasion resistance: paper traveling distance 50km (print ratio:25% or less) |
WHY CHOOSE US
- We currently provide OEM/ODM services for many customers worldwide, building, proof of concepts, designs and large orders is our strength.
- Many of our current products are available in a very fast manner in order for you to test and approve of our strong quality of goods. Don’t be fooled by some factories that will offer the best products below the market price, you pay for what you get is the safe way to look at your over sea’s purchases.
Company Information:
Wisecard (a WiseGroup company) is a global solution provider that has been providing innovative payment and secure solutions to financial institutions, government entities and telco operators worldwide.
Wisecard have been providing EMV smart card, EMV biometric card, EMV perso software, card issuance, EMV embossers, POS terminals, smart banking, smart teller machine, kiosk, vending machine, biometric POS, Hardware Secure Module, mobile payment platform, private label card solution, prepaid card solution, card management system to partners in more than 60 countries worldwide. Wisecard’s product suite empower large global financial institutions and government sectors as well as small to medium sized retail banks.
Wisecard solutions are adapting to the highest and latest secure standard, and the solutions have been fully tested and certified by international test labs, like FBI, STQC, EMV, PCI DSS, PA DSS, VISA, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay and etc.
Notes: FBI, STQC, EMV, PCIDSS, PADSS, Visa, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay is a registered trademark. All trademarks referenced here are the property of the respective owners.
