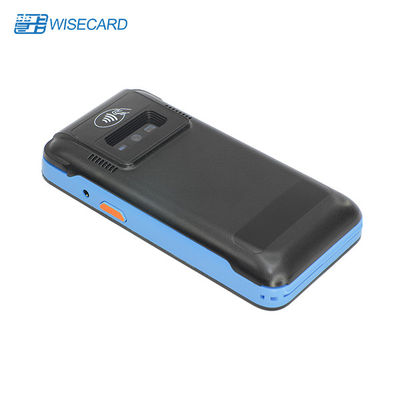

Android Handheld touch screen wifi 3G 4G GPRS mobile portable pos terminal
Quick Details
Place of Origin: China
Brand Name: WCT
After-sales Service Provided:Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support
Warranty: 1 Year
WCT-Mini is an Android OS based smartphone payment terminal with WIFI and 3G/4G communication modules which is designed to make various mobile payments on the go, such as magnetic card, IC card, NFC, barcode, QR code and sound wave payment.
WCT-Mini Android Smartphone Payment Device with Touch Screen, IC and Magstripe Card Reader and 1D&2D Code Scanner
| Product Specifications |
| Iems |
Specifications |
| Operation |
Security OS, Android 5.1 |
| CPU |
Qualcomm Quad-core, 1.1 GHz |
| Memory |
1GB DDR3, 8GB Flash Optional: 2+16GB |
| Display |
4.5 inch, Resolution: 854*480 |
| Screen |
High Sensitivity Capacitive Touch Screen |
| Camera |
Rear Camera: 5 Mega Pixel Auto Focus Support Optional: 0.3M, FF; Support 1D/2D Code |
| Communication |
2G: GSM/EDGE 850/900/1800/1900 3G:WCDMA Band 1/2/5/8 4G: FDD Band 1/3/7; TDD Band: 38/39/40/41 |
| WIFI |
Support 2.4G/5G, a/b/g/n |
| Bluetooth |
BT 4.0+BLE |
| GPS |
Support: GPS/A-GPS, GLONASS, BEIDOU |
| NFC |
ISO/IEC 14443 Type A&B, Felica,ISO/IEC 14443&7816 |
| IC Card Reader |
ISO/IEC 7816, Conform toEMV L1/L2 |
| Magnetic Card Reader |
ISO/IEC 7816, Track 1/2/3, Bi-directional |
| PSAM |
1 PSAM Slots, ISO/IEC 7816 |
| Indicator |
4 Independent POS Indicators |
| Buzzer |
Support |
| Memory Extension |
Micro SD/TF, 64GB |
| USB Port |
Micro USB, OTG Supported |
| SIM Card Slot |
1 Slot, 25*15mm |
| Audio |
1 Speaker, 1 Mircophone |
| Auxiliary Lamp |
Support Red Light Position, White Light Compensation |
| Keys |
Power Key, Push-talk Key,Volume Key, Multifunction Key(Default Scaning Key); Touch Key: MENU/HOME/BACK Keys |
| Battery |
3000mAh |
| Power |
Input: 100-240V, 50/60 Hz 0.35A |
| Dimensions |
136*69*22.1 mm |
| Weight |
225g |
| Accessories |
Adaptor, USB Cable |
| Optional Accessories |
BT Earphone, BT Printer, Waist Pocket |
| Certifications |
PCI PTS, EMV L1&L2, EMV Contactless L1, Visa Paywave, MasterCard Paypass, MasterCard TQM, CE, Conformity Certificate of Explosion-Proof |
Packaging & Delivery
Port: shenzhen shekou seaport
Lead Time :
| Quantity(Units) |
1 - 10000 |
>10000 |
| Est. Time(days) |
30 |
To be negotiated |
Supply Ability: 1000 Unit/Units per Day
FAQ
1. About Price:
The price is negotiable. It can be changed according to your quantity or package. When you are making an inquiry, please let us know the quantity you want.
2. About Sample:
Sample is Free, but the air freight is collect or you pay us the cost in advance.
3. About language and operation system:
Our printers support diffrent languages include Englishi, Russian, Spanish and so on. It backups IOS, Android, Windows, Linux, Oppos operation systems.
4. About warranty:
Each printer will have one year (12 months) warranty. Free components will be offered for repair in warranty period, if the issue caused by non-artificial damages.
Company Information:
Wisecard (a WiseGroup company) is a global solution provider that has been providing innovative payment and secure solutions to financial institutions, government entities and telco operators worldwide.
Wisecard have been providing EMV smart card, EMV biometric card, EMV perso software, card issuance, EMV embossers, POS terminals, smart banking, smart teller machine, kiosk, vending machine, biometric POS, Hardware Secure Module, mobile payment platform, private label card solution, prepaid card solution, card management system to partners in more than 60 countries worldwide. Wisecard’s product suite empower large global financial institutions and government sectors as well as small to medium sized retail banks.
Wisecard solutions are adapting to the highest and latest secure standard, and the solutions have been fully tested and certified by international test labs, like FBI, STQC, EMV, PCI DSS, PA DSS, VISA, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay and etc.
Notes: FBI, STQC, EMV, PCIDSS, PADSS, Visa, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay is a registered trademark. All trademarks referenced here are the property of the respective owners.
