ISO14443 ATM Card Chip GPIO Interface CIU9872B 01 Plus EMV Chip

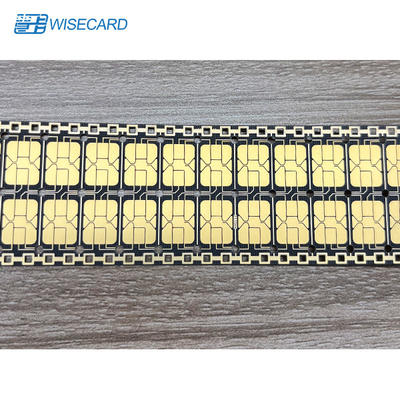

Large Image : ISO14443 ATM Card Chip GPIO Interface CIU9872B 01 Plus EMV Chip

Product Details:

Place of Origin:	China
Brand Name:	Wisecard Technology
Certification:	ISO14443,7816
Model Number:	CIU9872B

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	200pcs/box, 10boxes/carton; For standard size card or customized boxes or cartons as required.
Delivery Time:	7 week days
Payment Terms:	T/T
Supply Ability:	100,000 pcs per week

Contact Now

Detailed Product Description

CPU:	32 Bit	Main Frequency:	72MHZ
Timer:	2 * 16/32bit Timer	EEPROM:	152KB
Interface 7816:	Comply With ISO/IEC 7816 T=0/1 Standard; Supports Up To 446400bps	Interface 14443:	Comply With ISO/IEC 14443 TYPE A Standard
Interface I2C:	Supports Master-slave Mode, Support 400KHZ	Interface GPIO:	2
Highlight:	GPIO Interface atm card chip , ISO14443 atm card chip , CIU9872B 01 Plus EMV Chip

WCT Duo-Surface 32-Bit EMV Chip CIU9872B_01 Plus Chip

Product Description:

EMV cards are smart cards, also called chip cards, integrated circuit cards, or IC cards, which store their data on integrated circuit chips, in addition to magnetic stripes for backward compatibility. CIU9872B_01 Plus chip uses 32-bit secure CPU core and EEPROM memory, supports hardware cryptographic algorithms (DES/AES/ECC/RSA/SHA-n, SM1/SM2/SM3/SM4), supports multiple interfaces: 7816/14443/ I2C / GPIO, for financial applications.

Specification:

CPU		Security Features
CPU	32 bit	Security algorithm	supports DES/3DES/AES
Main frequency	72MHZ		supports SM1/SM4/SM3
Timer	2 * 16/32bit Timer		supports RSA/ECC/SM2
		Random number	Supports true random number, in line with AIS31-P2 standard
Memory		Memory	Supports memory security protection mechanism
EEPROM	152KB	Sensor	Supports multiple safety sensor detection
	Erasing and writing ≥ 500,000 times	Active shield	support
	Data storage time ≥ 25 years	Unique serial number	The unique serial number of the chip cannot be changed
		Self-check function	Support self-check safety reset

Interfaces		Package Form
7816	Comply with ISO/IEC 7816 T=0/1 standard	Module Package	Dual interface
7816	Supports up to 446400bps	Module Package	6PIN Silver/Gold
14443	Comply with ISO/IEC 14443 TYPE A standard	Applications
14443	Supports up to 848Kbit/s	EMV standard payment
I2C	Supports master-slave mode, support 400KHZ	1)Supports VISA(VSDC2.8.1g1)+ Mastercard (MChip Advance 1.2.3)Dual APP
GPIO	2
Electrical Characteristics
Operating Voltage	1.6V～5.5V	2)Supports Mastercard(MChip Advance 1.2.3)
Operating temperature	-25℃~85℃
ESD	7816interface 6KV(HBM)
ESD	14443interface 4KV(HBM)

Service:

1. QC: Every single card will be carefully checked by machine or manual work before dispatched.

2. Accept personalized customization.

3. Strict quantity control on processing.

4. On time delivery.

5. Quality assurance: 1year warranty after delivery.

6. Quick response: Your inquiry will be replied in 24 hours.

Why Choose Us

1. We have our own production factory help us make sure of our delivery times and product quality. Over 10 years of experience gives us the edge!

2. Our professional technical team can quickly provide pre-sales and after-sales service. and we have full experience in construction, our engineer team is integration of theory and practice.

3. We currently provide OEM/ODM services for many customers worldwide. We have full design experience for indoor and outdoor display.

4.Many of our current products are available in a very fast manner in order for you to test and approve of our strong quality of goods. Don’t be fooled by some factories that will offer the best products below the market price, you pay for what you get is the safe way to look at your over sea’s purchases.

5. As part of our multiple services, we can offer 1 year warranty on all our products. Secure yourself and ask us about our extended warranty programs.

ISO14443 ATM Card Chip GPIO Interface CIU9872B 01 Plus EMV Chip 0
