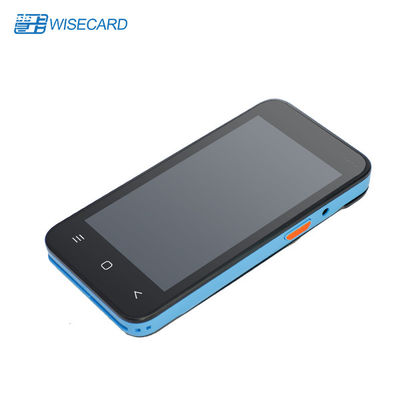

Android Mini smart POS Handheld touch screen GPRS QR code WIFI NFC barcode magnetic
WCT-Mini is an Android OS based smartphone payment terminal with WIFI and 3G/4G communication modules which is designed to make various mobile payments on the go, such as magnetic card, IC card, NFC, barcode, QR code and sound wave payment.
WCT-Mini Android Smartphone Payment Device with Touch Screen, IC and Magstripe Card Reader and 1D&2D Code Scanner
Our Services
Reserch&Design
AR&Dteam of 80 members masters in design and development of pos terminals
Partner Training
Necessary course for customer training on hardwarre and software maintenance
1 year guarantee
Free repairing service within 1 year started from cargo dispatch date. logistic support from customer side.
OEM ODM
Rich experience in OEM & ODM customization, from more than 30 countries
Professional Require
Provides you professional product analysis cost-effective product recommendations
| Product Specifications |
| Iems |
Specifications |
| Operation |
Security OS, Android 5.1 |
| CPU |
Qualcomm Quad-core, 1.1 GHz |
| Memory |
1GB DDR3, 8GB Flash Optional: 2+16GB |
| Display |
4.5 inch, Resolution: 854*480 |
| Screen |
High Sensitivity Capacitive Touch Screen |
| Camera |
Rear Camera: 5 Mega Pixel Auto Focus Support Optional: 0.3M, FF; Support 1D/2D Code |
| Communication |
2G: GSM/EDGE 850/900/1800/1900 3G:WCDMA Band 1/2/5/8 4G: FDD Band 1/3/7; TDD Band: 38/39/40/41 |
| WIFI |
Support 2.4G/5G, a/b/g/n |
| Bluetooth |
BT 4.0+BLE |
| GPS |
Support: GPS/A-GPS, GLONASS, BEIDOU |
| NFC |
ISO/IEC 14443 Type A&B, Felica,ISO/IEC 14443&7816 |
| IC Card Reader |
ISO/IEC 7816, Conform toEMV L1/L2 |
| Magnetic Card Reader |
ISO/IEC 7816, Track 1/2/3, Bi-directional |
| PSAM |
1 PSAM Slots, ISO/IEC 7816 |
| Indicator |
4 Independent POS Indicators |
| Buzzer |
Support |
| Memory Extension |
Micro SD/TF, 64GB |
| USB Port |
Micro USB, OTG Supported |
| SIM Card Slot |
1 Slot, 25*15mm |
| Audio |
1 Speaker, 1 Mircophone |
| Auxiliary Lamp |
Support Red Light Position, White Light Compensation |
| Keys |
Power Key, Push-talk Key,Volume Key, Multifunction Key(Default Scaning Key); Touch Key: MENU/HOME/BACK Keys |
| Battery |
3000mAh |
| Power |
Input: 100-240V, 50/60 Hz 0.35A |
| Dimensions |
136*69*22.1 mm |
| Weight |
225g |
| Accessories |
Adaptor, USB Cable |
| Optional Accessories |
BT Earphone, BT Printer, Waist Pocket |
| Certifications |
PCI PTS, EMV L1&L2, EMV Contactless L1, Visa Paywave, MasterCard Paypass, MasterCard TQM, CE, Conformity Certificate of Explosion-Proof |
FAQ
Q: Does your stand secured?
A: Yes, our products are durable metal construction. Please see our brochure for more details.
Q: Would it be possible to order a sample of products?
A: Yes, definitely no problem to order one sample at first before bulk order.
Q: I would like to order custom tablet stand. Do you manufacture custom design tablet stand?
A: Yes, we have strong R&D center who can custom creative design for you. Please offer us your requirements.
Q: Is it possible to have our logo printed on top of it?
A: Yes, it is no problem to print logo on top of the tablet enclosure. Please offer us the logo picture and offer us international Pan-tone color code for the logo color.
Q: Are you a manufacturer?
A: Yes, we have our own factory with advanced facilities.
Company Information:
Wisecard (a WiseGroup company) is a global solution provider that has been providing innovative payment and secure solutions to financial institutions, government entities and telco operators worldwide.
Wisecard have been providing EMV smart card, EMV biometric card, EMV perso software, card issuance, EMV embossers, POS terminals, smart banking, smart teller machine, kiosk, vending machine, biometric POS, Hardware Secure Module, mobile payment platform, private label card solution, prepaid card solution, card management system to partners in more than 60 countries worldwide. Wisecard’s product suite empower large global financial institutions and government sectors as well as small to medium sized retail banks.
Wisecard solutions are adapting to the highest and latest secure standard, and the solutions have been fully tested and certified by international test labs, like FBI, STQC, EMV, PCI DSS, PA DSS, VISA, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay and etc.
Notes: FBI, STQC, EMV, PCIDSS, PADSS, Visa, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay is a registered trademark. All trademarks referenced here are the property of the respective owners.
