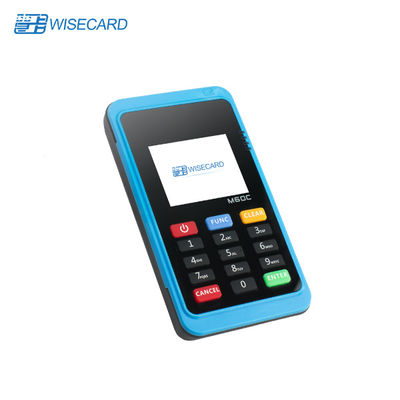

NFC EMV Visa Card Reader Digital Signature Mpos Terminal With 2 PSAM Slot For Retail Railway / Topup / Utility Fare:
An innovative mobile payment terminal, connects with mobile phones and other smart devices via Bluetooth®, combined with multiple applications, supports for magnetic card, IC card and contactless card. Support keyboard input password, LCD prompt transaction information and electronic signatures. Small and portable, simple operation, smart and security, bring you a new era of mobile payment experience!
Product Specification:
| Specifications |
|
| Processor |
32-bits High-performance security processor |
| Memory |
512KB flash, 64KB SRAM, External: 2MB flash |
| Display |
2 inches 320*240 Color LCD display |
| Keypad |
10 alphanumeric keys, 4 function keys, 1 power key |
| Magnetic Card Reader |
Compliant with ISO7811, ISO7812 |
| |
Track 1/2/3, Bi-directional Swipe |
| IC Card Reader |
Meets EMV/ PBOC 3.0 standards |
| Contactless Reader |
Support ISO/ IEC 14443 Type A&B, ISO/IEC 14443&7816 Standards |
| Status Bar |
4 signal lights |
| Communication |
Bluetooth 4.0, Support Android, IOS and Windows |
| Interface |
Micro USB |
| Language |
Support Chinese, English, etc. |
| Battery |
Rechargeable Lithium battery, 3.7V/ 250mAh |
| Working Environment |
Temperature: 0~50℃(32~122℉) Humidity: 10%~90%(non-condense) |
| Storage Environment |
Temperature: -20~70℃(-4~158℉) Humidity: 5%~95%(non-condense) |
| Cable |
USB Cable |
| Dimensions |
120mm*65mm*17.5mm(L*W*H) |
| Weight |
116g (include battery) |
| Certification |
PCI PTS 5.x, EMV Contact L1&L2, EMV Contactless L1, PBOC 3.0 L1&L2 |
| Optional Module |
Built-in 1D/ 2D Barcode Scanner |
Advantage:
1. Android 5.1 operating system: high security OS;
2. carry easily: 4.5-inch screen. It’s about the same size as a mobile phone, and it’s easy to carry, making it easier for you to work outdoors;
3. strong performance:CPU: Qualcomm quad-core, 1.1 GHz
4. Safe payment: It has a lot of payment methods. Conform to < China unionpay terminal security standards>,<China unionpay terminal Applicaion standards>, as well as EMVPCCCCCTA,and other domestic and international security standards,with anti-demolition, anti-atack,anti-spy hardware, physical safety design,and unique PIN input protection technology.
