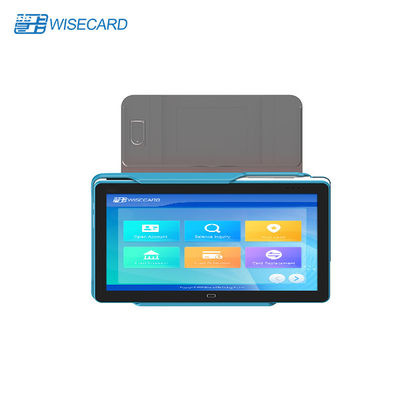

Portable Cash Register Tablet POS Machine with Stand and Bracket Tab POS Terminal
Wisecard touch screen ECR tablet, built in Dual core ARM-CORTEX A7 CPU. 8G EMMC flash, 1G DDR3 RAM.
Android 5.1 OS. TS1K APK preinstalled.
11.6 inch TFT LCD with industrial capacitive touch screen.
2*USB host for USB printer, USB scanner, or USB disk
2*RS232 for RS232 device, such as RS232 kitchen printer or scale.
1*RJ11 for cash drawer
1*RJ45 for Ethernet
Terminal Data Management:
★ Manufactuer Name & Code
★ Serial Number
★ Installation Infomation
★ Firmware Type
★ Firmware Version
★ CID
★ CPUID
| WCT-Tab Product Specifications |
| Item |
Specification |
| Operation |
Security OS, Android 5.1 |
| CPU |
Quad-core, 1.2 GHz |
| Memory |
2GB DDR3, 16GB Flash Optional: 3+32GB |
| Display |
11.6 inch, Resolution: 1366*768 |
| Screen |
High Sensitivity Capacitive Touch Screen |
| Camera |
Front Camera: 5 Mega Pixel Auto Focus
Rear Camera: 5 Mega Pixel Auto Focus
Optional: Rear Camera: 8 Mega Pixel Auto Focus
Support High-speed Scanning Algorithm |
| Communication |
2G: GSM/EDGE 850/900/1800/1900 3G:WCDMA Band 1/2/5/8
4G: FDD Band 1/3/7; TDD Band: 38/39/40/41 |
| WIFI |
Support 2.4G/5G, a/b/g/n |
| Bluetooth |
BT 4.0+BLE |
| GPS |
Support: GPS/A-GPS, GLONASS, BEIDOU |
| NFC |
ISO/IEC 14443 Type A&B, Felica,ISO/IEC 14443&7816 |
| IC Card Reader |
ISO/IEC 7816, Conform toEMV L1/L2 |
| Magnetic Card Reader |
ISO/IEC 7816, Track 1/2/3, Bi-directional |
| PSAM |
1 PSAM Slots, ISO/IEC 7816 |
| Indicator |
4 Independent POS Indicators |
| Buzzer |
Support |
| Memory Extension |
Micro SD/TF, 64GB |
| USB Port |
Micro USB, OTG Supported |
| SIM Card Slot |
1 SIM Card Mirco SIM Card |
| Audio |
1 Speaker, 1 Mircophone |
| Auxiliary Lamp |
Support Red Light Position |
| Keys |
Power Key, Physical Key,Volume Key; Touch Key: HOME Key |
| Battery & Power |
6900mAh, Input: 100-240V, 50/60 Hz 0.35A, Output: 9V/2000 mA |
| Weight |
880g (pad), 2297g (including bracket) |
| Optional Accessories |
Cash Drawer, Barcode Scanner, Mobile Printer
USB Commercial Keyboard, Electronic Scale |
| Certifications |
PCI PTS, EMV L1&L2, EMV Contactless L1
Visa Paywave, MasterCard Paypass, RoHS |
Company Information:
Wisecard (a WiseGroup company) is a global solution provider that has been providing innovative payment and secure solutions to financial institutions, government entities and telco operators worldwide.
Wisecard have been providing EMV smart card, EMV biometric card, EMV perso software, card issuance, EMV embossers, Smart POS machine, Android POS, POS terminals, smart banking, smart teller machine, kiosk, vending machine, biometric POS, Hardware Secure Module, mobile payment platform, private label card solution, prepaid card solution, card management system to partners in more than 60 countries worldwide. Wisecard’s product suite empower large global financial institutions and government sectors as well as small to medium sized retail banks.
Wisecard solutions are adapting to the highest and latest secure standard, and the solutions have been fully tested and certified by international test labs, like FBI, STQC, EMV, PCI DSS, PA DSS, VISA, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay and etc.
Notes: FBI, STQC, EMV, PCIDSS, PADSS, Visa, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay is a registered trademark. All trademarks referenced here are the property of the respective owners.
