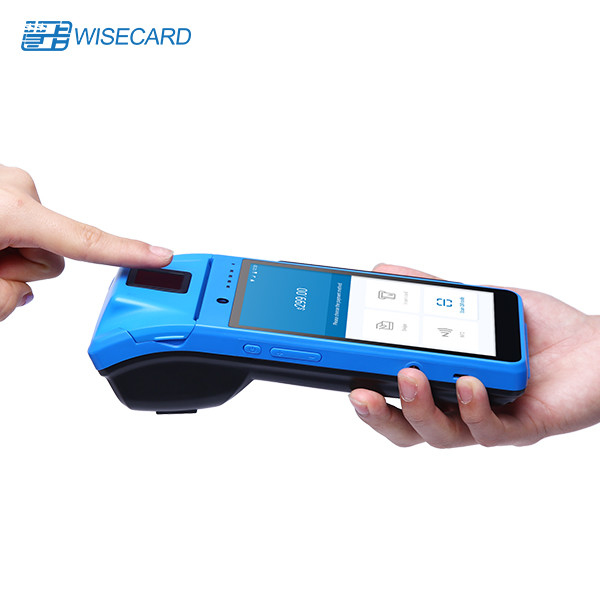

Android 7.0 Biometric POS Terminal , Portable POS Machine With Printer Built In Battery
Contact Person : Steven Yao
Phone Number : +86-13424312532
WhatsApp : +8613424312532
| Minimum Order Quantity : | Negotiable | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | 1 pc per box, 10 pc per carton | Delivery Time : | 1-4 weeks |
| Payment Terms : | T/T | Supply Ability : | 10000 Set/Sets per Month |
| Place of Origin: | China | Brand Name: | Wisecard |
|---|---|---|---|
| Certification: | PCI CE Rohs | Model Number: | T90-FO |
|
Detail Information |
|||
| Name: | Vein Module 16GB EMMC With 80mm Printer Desktop Pos With Printer | Battery Type: | Li-ion Polymer Battery |
|---|---|---|---|
| REAR Camera:: | 8Mega Pixels, CMOS, AF, QR/2D Barcode, JPEG Picture, Video. | Dimension And Weight: | 203mm*85mm*53mm, 480g With Battery |
| Fingerprint Module:: | FBIcertificated High Secured Fingerprint Module | Security Processor: | MAXIM MAX32555 (DeepCover Secure Microcontroller) |
| USIM Card Slots: | 4 PSAM Slots, 2 SIM Slots | Contactless Card: | NFC 13.56MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC 14443&7816 |
| High Light: | Vein Module Desktop Pos Terminal,2.4GHz ISM Desktop Pos Terminal,16GB EMMC Android Mobile Pos |
||
Product Description
Products
Samples or trial order, we provide latest inventory products, for bulk requirements, we need 3 weeks to produce. We will have all products inspected before shipping, and we provide a sound packing in case of damage during delivery.
Tech Support
Tech support and free sdk provided regardless of quantities. Remote compile or free demo and demo video and code available as requested. Customized application may charge according to detailed functions.
Logistics
Express, by air, by sea. Delivery may take 3-15 days after receipt of payment. Most areas, we send goods via DHL, TNT, UPS, Fedex, EMS. We can also arrange special line for Russia, Iran, etc.
1: We have advanced production equipment,used in the manufacture of printer.
2: The company staff skills staff in ou company, serving nearly 3 years.
3: We have the procurement team and quality inspection team of professional.
Each printer will be required from raw materials to finished products, such as raw materials procurement assessment, incoming inspection, printing plate test, automatic shear test, pinter head test, etc......
4: Our experienced packaging team will pack the best way for each printer in the air / sea ransport carton
5: We have a cheap and safe transportation system. For customer service.
| WCT Android POS Configuration | ||
| Type | Product Spec | |
| Platform | Processor | MTK MT8735 ( 4-Core ARM Cortex-A53,1.3GHz ) |
| RAM | 1GB / 2GB LPDDR3 | |
| FLASH | 8GB / 16GB EMMC | |
| OS | Android 7.0 Security Payment OS | |
| Security Processor | MAXIM MAX32555 (DeepCover Secure microcontroller) | |
| Wireless | Wireless Standard | LTE-FDD/TDD-LTE/TDS-CDMA/WCDMA/CDMA2000/EDGE/GPRS |
| 4G | LTE-FDD : B1/B3/B8 (TBD) | |
| TDD-LTE : B38/B39/B40/B41 | ||
| 3G | UMTS/HSPA/HSPA+/DC-HSPA+ : B1/B8 | |
| TDS-CDMA : B34/B39 | ||
| EVDO : BC0 | ||
| 2G | EDGE/GPRS : B3/B8 | |
| WLAN | 2.4GHz ISM 2402MHz~2482MHz | |
| BT 4.1 LE | 2.4GHz ISM 2402MHz~2480MHz | |
| USIM | Card Slots | 4 PSAM slots, 2 SIM slots |
| GPS | GPS | GPS, GLONASS |
| LCD and Touch Panel | LCD Pixels | 720*1280 IPS |
| LCD | 5.5 inch | |
| Touch Panel | G+F+F, Capacitive Color Touch,Multi Touch, signature capable, video capable | |
| Keypad | Physical key | Power ON/OFF, Volumn up, Volumn down. |
| Virtual Keypad | Home Key, Function key, Numeric Keys. | |
| Audio | Speaker | 1 W x 1 |
| Microphone | Voice input | |
| USB | USB Standard | USB Type C 2.0 |
| Other | Charge Battery, OTG support | |
| Camera | REAR | 8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video. |
| FRONT | 2Mega Pixels, CMOS, JPEG picture, Video. | |
| NFC | Standard | ISO14443 type A/B ( ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support ) |
| Spectrum | 13.56MHz | |
| IC card | Contactless Card | NFC 13.56 MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC 14443&7816 |
| EMV card | Smart Card | EMV & PBOC Compliant |
| MSR | Magnetic Card | ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec. |
| Battery | Battery type | Li-ion polymer battery |
| Capacity | 3.7V, 5800mAh | |
| Charger | 5V/2A | |
| Certification | ICC | EMV contact L1 / PBCO L1 |
| EMV contact L2 / PBOC L2 | ||
| NFC | EMV contactless L1 / qPBOC L1 | |
| EMV contactless L2 / qPBOC L2 | ||
| Security | PCI 5.0 | |
| UPTS 2.0 | ||
| Operating environment | Temperature | -5 to +50 °C |
| Relative humidity | 10 % to 85 % RH | |
| Storage environment | Temperature | -10 to +60 °C |
| Relative humidity | 10 % to 90 % RH | |
| Size and Weigt | Dimension and Weight | 203mm*85mm*53mm, 480g with battery |
| Micro Printer | Printing method | Thermal-line dot method |
| Paper | Thermal roll paper (standard) 57*40 mm | |
| Effective Printing area | 48mm | |
| Speed | Maximum 70mm/sec(480 dot line/sec) | |
| Printing resolutions | 8 dots/mm | |
| Character | 12*24dots and 24*48 dots | |
| Number of columns | 32columns/line | |
| Printing head life | Pulse resistance:100 million pulses/dot (under our standard conditions); | |
| Abrasion resistance: paper traveling distance 50km (print ratio:25% or less) | ||
1. Are you a manufacturer?
Yes. Our company head office and factory are both in Shenzhen.
2. Can you provide application software for the hardware?
We provide free SDK with API and demo to support your development or programming.
3. What is the warranty?
The warranty time is 1 year without man-made damage.
4. Does the device have the language default as English?
Of course, our device supports multi-language such as English, Spanish, Portuguese, French, German, Polish, Japanese, Russian and so on.
5. Can your device install the Android Apps that our customers provide?
No problem. Just send us your Apps which you need to get the license of the apps and then our Engineers can do that for you.
If you have further question about our products, please don’t hesitate to contact us, we will be happy to serve you.
Company Information:
Wisecard (a WiseGroup company) is a global solution provider that has been providing innovative payment and secure solutions to financial institutions, government entities and telco operators worldwide.
Wisecard have been providing EMV smart card, EMV biometric card, EMV perso software, card issuance, EMV embossers, POS terminals, smart banking, smart teller machine, kiosk, vending machine, biometric POS, Hardware Secure Module, mobile payment platform, private label card solution, prepaid card solution, card management system to partners in more than 60 countries worldwide. Wisecard’s product suite empower large global financial institutions and government sectors as well as small to medium sized retail banks.
Wisecard solutions are adapting to the highest and latest secure standard, and the solutions have been fully tested and certified by international test labs, like FBI, STQC, EMV, PCI DSS, PA DSS, VISA, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay and etc.
Notes: FBI, STQC, EMV, PCIDSS, PADSS, Visa, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay is a registered trademark. All trademarks referenced here are the property of the respective owners.
