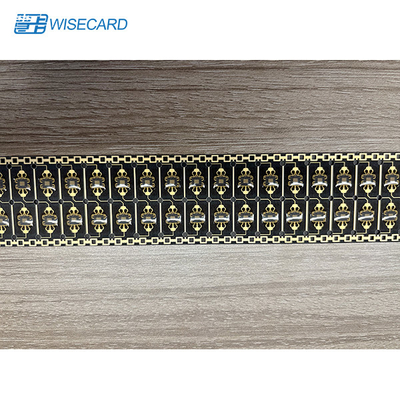

10.62*8.0mm 32-Bit Secure CPU EEPROM Memory EMV Chip
Product Description:
CIU9872B_01 Plus chip uses 32-bit secure CPU core and EEPROM memory, supports hardware cryptographic algorithms (DES/AES/ECC/RSA/SHA-n, SM1/SM2/SM3/SM4), supports multiple interfaces: 7816/14443/ I2C / GPIO, for financial applications.EMV chips are the small, square computer chips that appear on debit, credit and prepaid cards to help safeguard them against fraud. EMV (which stands for Europay, Mastercard and Visa) chips create a one-of-a-kind code for each credit transaction.
Specification:
| CPU |
Security Features |
| CPU |
32 bit |
Security algorithm |
supports DES/3DES/AES |
| Main frequency |
72MHZ |
supports SM1/SM4/SM3 |
| Timer |
2 * 16/32bit Timer |
supports RSA/ECC/SM2 |
| |
|
Random
number |
Supports true random number, in line
with AIS31-P2 standard |
| Memory |
Memory |
Supports memory security protection
mechanism |
| EEPROM |
152KB |
Sensor |
Supports multiple safety sensor
detection |
Erasing and writing
≥ 500,000 times |
Active shield |
support |
Data storage time
≥ 25 years |
Unique serial
number |
The unique serial number of the chip
cannot be changed |
| |
|
Self-check
function |
Support self-check safety reset |
| |
|
|
|
| Interfaces |
|
Package Form |
| 7816 |
Comply with ISO/IEC 7816
T=0/1 standard |
Module
Package |
Dual interface |
| Supports up to 446400bps |
6PIN Silver/Gold |
| 14443 |
Comply with ISO/IEC 14443
TYPE A standard |
Applications |
| Supports up to 848Kbit/s |
EMV standard payment |
| I2C |
Supports master-slave mode,
support 400KHZ |
1)Supports VISA(VSDC2.8.1g1)+ Mastercard
(MChip Advance 1.2.3)Dual APP |
| GPIO |
2 |
| Electrical Characteristics |
|
Operating
Voltage |
1.6V～5.5V |
2)Supports Mastercard(MChip Advance 1.2.3) |
Operating
temperature |
-25℃~85℃ |
| ESD |
7816interface 6KV(HBM) |
| 14443interface 4KV(HBM) |
|
|
