Product Description

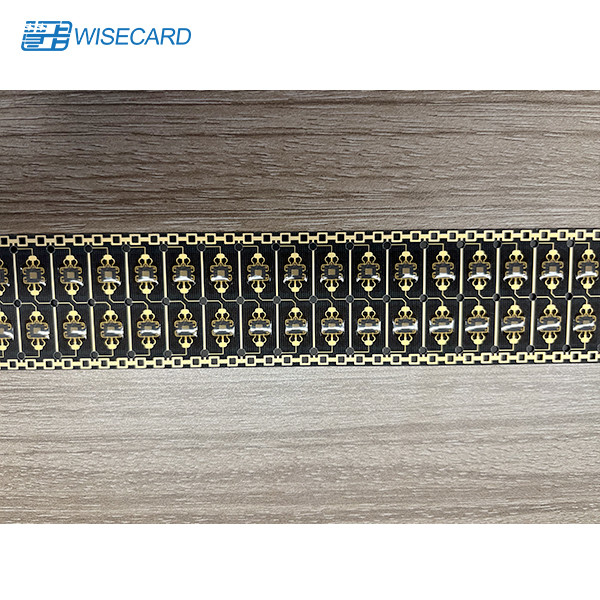

10.62*8.0mm 32-Bit Secure CPU EEPROM Memory EMV Chip
Product Description:
CIU9872B_01 Plus chip uses 32-bit secure CPU core and EEPROM memory, supports hardware cryptographic algorithms (DES/AES/ECC/RSA/SHA-n, SM1/SM2/SM3/SM4), supports multiple interfaces: 7816/14443/ I2C / GPIO, for financial applications.EMV chips are the small, square computer chips that appear on debit, credit and prepaid cards to help safeguard them against fraud. EMV (which stands for Europay, Mastercard and Visa) chips create a one-of-a-kind code for each credit transaction.
Specification:
| CPU |
Security Features |
| CPU |
32 bit |
Security algorithm |
supports DES/3DES/AES |
| Main frequency |
72MHZ |
supports SM1/SM4/SM3 |
| Timer |
2 * 16/32bit Timer |
supports RSA/ECC/SM2 |
| |
|
Random
number |
Supports true random number, in line
with AIS31-P2 standard |
| Memory |
Memory |
Supports memory security protection
mechanism |
| EEPROM |
152KB |
Sensor |
Supports multiple safety sensor
detection |
Erasing and writing
≥ 500,000 times |
Active shield |
support |
Data storage time
≥ 25 years |
Unique serial
number |
The unique serial number of the chip
cannot be changed |
| |
|
Self-check
function |
Support self-check safety reset |
| |
|
|
|
| Interfaces |
|
Package Form |
| 7816 |
Comply with ISO/IEC 7816
T=0/1 standard |
Module
Package |
Dual interface |
| Supports up to 446400bps |
6PIN Silver/Gold |
| 14443 |
Comply with ISO/IEC 14443
TYPE A standard |
Applications |
| Supports up to 848Kbit/s |
EMV standard payment |
| I2C |
Supports master-slave mode,
support 400KHZ |
1)Supports VISA(VSDC2.8.1g1)+ Mastercard
(MChip Advance 1.2.3)Dual APP |
| GPIO |
2 |
| Electrical Characteristics |
|
Operating
Voltage |
1.6V～5.5V |
2)Supports Mastercard(MChip Advance 1.2.3) |
Operating
temperature |
-25℃~85℃ |
| ESD |
7816interface 6KV(HBM) |
| 14443interface 4KV(HBM) |
|
|
Service:
1. QC: Every single card will be carefully checked by machine or manual work before dispatched.
2. Accept personalized customization.
3. Strict quantity control on processing.
4. On time delivery.
5. Quality assurance: 1year warranty after delivery.
6. Quick response: Your inquiry will be replied in 24 hours.
FAQ:
Q: Are you a factory or simply a trading company?
A: We are a true OEM/ODM factory. Please read our company profile, for more information on this issue.
Q: What are the shipment terms and delivery times of your company?
A: Delivery / production time is directly affected by the size of the order. Also, please be aware, some factories may not advise you, but after the production delays, you might be facing a few more days delays before catching your sea or your on-board flight departures. ( might be anywhere from 3 to 7 working days). Again, depending in which season you are shipping.
Q: What payment methods your company accept?
A: We accept most of the payment methods, but mainly accept T/T.
Q: How long is the warranty time?
A: As part of our multiple services, we can offer 1 to 3 years warranty on all our products. Secure yourself and ask us about our extended warranty programs.
Q: Accept Sample?
A: Sample is available. We always supply sample to our clients for testing.
Q: How is the quality?
A: We have very strict quality controlling which promises the goods we produced are always of the best quality.
