Wisecard LF / HF / UHF Chip RFID Prelam Inlay For EMV Smart Card

Large Image : Wisecard LF / HF / UHF Chip RFID Prelam Inlay For EMV Smart Card

Product Details:

Place of Origin:	China
Brand Name:	Wisecard Technology
Certification:	ISO14443,7816
Model Number:	ISO/IEC 14443&7816

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	200pcs/box, 10boxes/carton; For standard size card or customized boxes or cartons as required.
Delivery Time:	7 week days
Payment Terms:	T/T
Supply Ability:	100,000 pcs per week

Contact Now

Detailed Product Description

Operating Frequency:	125 KHz, 13.56 MHz Or UHF	Chip Type:	ISO/IEC 14443&7816 Ultralight, ISO/IEC 14443&7816 Hospitality, ISO/IEC 14443&7816 Classic And Etc.
Memory:	48 Byte To 140 KB EEPROM	Modules:	All Standard Modules Or DBond™ Technology
Dimensions:	Up To 30.3 In × 24.8 In (770 Mm × 630mm)	Format:	Custom Format For ID1 Or Other Shapes
Thickness:	190 μm To 500 μm	Housing Materials:	PVC, PETG, PC, Synthetic Paper, Teslin®
Highlight:	HF Chip rfid prelam inlay , UHF Chip RFID Prelam Inlay , Smart Card rfid prelam

Wisecard EMV Chip Inlay Prelam Inlay Rfid Chip

Description:

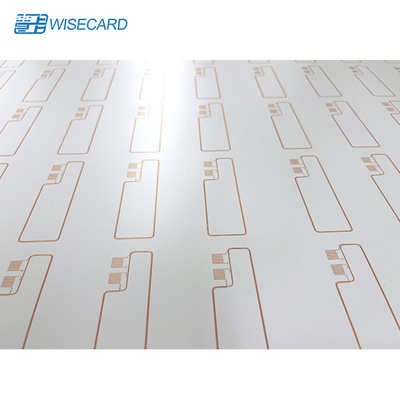

Inlays are sheets of prelaminate with chip modules and copper antennas applied, designed for the production of contactless cards. They are used as an intermediate layer of a multilayer welded construction of a plastic card.

The inlets may consist of a different number of layers:

1) plastic + antenna with chip

2) plastic + antenna with chip + laminate (on one or two sides)

Specification:

Base Model Number	Specific to customer format & thickness requirement
ELECTRONIC
Operating Frequency	125 kHz	13.56 MHz	860 to 960 MHz	13.56 MHz	125 kHz, 13.56 MHz or UHF
Chip Type	EM4102, Q5, ATA5577, Hitag S	ISO/IEC 14443&7816 Ultralight, ISO/IEC 14443&7816 Hospitality, ISO/IEC 14443&7816 Classic, ISO/IEC 14443&7816 Plus, ISO/IEC 14443&7816 DESFire, SmartMX, NTAG, ICODE, LEGIC Prime, LEGIC Advant, Calypso, Cipurse, KIAT™, Vigo™, HID Trusted Tag™, SLE66R35R, EM NF48K, EM4830 chip families.	Monza 4QT/R6; UCODE DNA/City	Dual Interface (no chip)	Combine multiple chips per unit
Memory	up to 2048 bit EEPROM	48 byte to 140 KB EEPROM	up to 224 bit EPC + up to 3 kbit user memory	Based on requirements
Modules	Patented DBond™ technology (Hitag)	All standard modules or DBond™ technology	n/a		Based on requirements
PHYSICAL
Dimensions	Up to 26 in x 20.8 in (660mm x 530mm)	Up to 30.3 in × 24.8 in (770 mm × 630mm)
Format	Custom format for ID1 or other shapes
Thickness varies by materials and chips	410 μm to 500 μm	190 μm to 500 μm	290μm to 500μm	150 μm to 410 μm	Based on requirements
Thickness over IC Module	n/a	191 μm to 500 μm	n/a		Based on modules
Housing Materials	PVC, PETG, PC, synthetic paper, Teslin®
Colors	Standard white; available transparent or custom colors & e-window option
CHEMICAL AND MECHANICAL
Water	50% relative humidity for storage, +/- 10%
THERMAL
Storage	73° F (23° C , +/- 3°C)
Operating	Based on requirements and chip selected
Shock/Fatigue	Based on requirements and chip selected
OTHER
Standards	ISO 7810, ISO 7816, optional NFC
		ISO 14443 or ISO 15693 depending on chip	EPC C1G2, ISO 18000-6	Based on requirements, optional NFC
Options	Layout; material; color; transparency; other chips; customized card size (CR100, XL, XXL)
Certifications	ISO 9001:2015, MasterCard® CQM certification, Industry-specific product certifications

Service:

100% Brand new and good quality.
85% conventional orders will be delivered within 7-18days.Some remote countries will take longer.We provide DHL expedited service. The time limit is 3-7 days. (Excluding preparation time.) If the order amount is more than 150$, we will use the DHL service free of charge.
We offer tens of thousands of electronic accessories and modules. You just need to search for keywords in my store.
If the packages not be delivered on time or the products may not be satisfactory. You just need to send a refund request, we will full refund for you without asking.
We make every effort to provide customers with satisfactory service.

FAQ:

Q: What payment methods your company accept?

A: We accept most of the payment methods, but mainly accept T/T.

Q: How long is the warranty time?

As part of our multiple services, we can offer 1 to 3 years warranty on all our products. Secure yourself and ask us about our extended warranty programs.

Q: Accept Sample?
A: Sample is available. We always supply sample to our clients for testing.

Q: Can you accept customized order?
A: Welcome, We have our own hardware factory and component engineer. Please send your own design and logo, we could make it as your idea/design.
