Product Details
Place of Origin: China
Brand Name: Wisecard Technology
Certification: ISO14443,7816
Model Number: ISO/IEC 14443&7816
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 200pcs/box, 10boxes/carton; For standard size card or customized boxes or cartons as required.
Delivery Time: 7 week days
Payment Terms: T/T
Supply Ability: 100,000 pcs per week
Operating Frequency: |
125 KHz, 13.56 MHz Or UHF |
Chip Type: |
ISO/IEC 14443&7816 Ultralight, ISO/IEC 14443&7816 Hospitality, ISO/IEC 14443&7816 Classic And Etc. |
Memory: |
48 Byte To 140 KB EEPROM |
Modules: |
All Standard Modules Or DBond™ Technology |
Dimensions: |
Up To 30.3 In × 24.8 In (770 Mm × 630mm) |
Format: |
Custom Format For ID1 Or Other Shapes |
Thickness: |
190 μm To 500 μm |
Housing Materials: |
PVC, PETG, PC, Synthetic Paper, Teslin® |
Operating Frequency: |
125 KHz, 13.56 MHz Or UHF |
Chip Type: |
ISO/IEC 14443&7816 Ultralight, ISO/IEC 14443&7816 Hospitality, ISO/IEC 14443&7816 Classic And Etc. |
Memory: |
48 Byte To 140 KB EEPROM |
Modules: |
All Standard Modules Or DBond™ Technology |
Dimensions: |
Up To 30.3 In × 24.8 In (770 Mm × 630mm) |
Format: |
Custom Format For ID1 Or Other Shapes |
Thickness: |
190 μm To 500 μm |
Housing Materials: |
PVC, PETG, PC, Synthetic Paper, Teslin® |
Description:

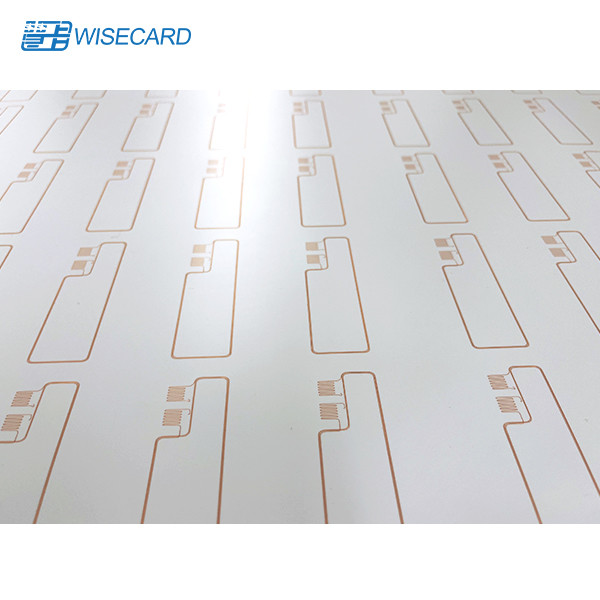

Inlays are sheets of prelaminate with chip modules and copper antennas applied, designed for the production of contactless cards. They are used as an intermediate layer of a multilayer welded construction of a plastic card.
The inlets may consist of a different number of layers:
1) plastic + antenna with chip
2) plastic + antenna with chip + laminate (on one or two sides)
Specification:
| Base Model Number | Specific to customer format & thickness requirement | ||||
| ELECTRONIC | |||||
| Operating Frequency | 125 kHz | 13.56 MHz | 860 to 960 MHz | 13.56 MHz |
125 kHz, 13.56 MHz or UHF |
|
Chip Type |
EM4102, Q5, ATA5577, Hitag S |
ISO/IEC 14443&7816 Ultralight, ISO/IEC 14443&7816 Hospitality, ISO/IEC 14443&7816 Classic, ISO/IEC 14443&7816 Plus, ISO/IEC 14443&7816 DESFire, SmartMX, NTAG, ICODE, LEGIC Prime, LEGIC Advant, Calypso, Cipurse, KIAT™, Vigo™, HID Trusted Tag™, SLE66R35R, EM NF48K, EM4830 chip families. |
Monza 4QT/R6; UCODE DNA/City |
Dual Interface (no chip) |
Combine multiple chips per unit |
| Memory |
up to 2048 bit EEPROM |
48 byte to 140 KB EEPROM |
up to 224 bit EPC + up to 3 kbit user memory | Based on requirements | |
| Modules | Patented DBond™ technology (Hitag) | All standard modules or DBond™ technology | n/a | Based on requirements | |
| PHYSICAL | |||||
| Dimensions | Up to 26 in x 20.8 in (660mm x 530mm) | Up to 30.3 in × 24.8 in (770 mm × 630mm) | |||
| Format | Custom format for ID1 or other shapes | ||||
|
Thickness varies by materials and chips |
410 μm to 500 μm | 190 μm to 500 μm | 290μm to 500μm | 150 μm to 410 μm |
Based on requirements |
|
Thickness over IC Module |
n/a | 191 μm to 500 μm | n/a |
Based on modules |
|
| Housing Materials | PVC, PETG, PC, synthetic paper, Teslin® | ||||
| Colors | Standard white; available transparent or custom colors & e-window option | ||||
| CHEMICAL AND MECHANICAL | |||||
| Water | 50% relative humidity for storage, +/- 10% | ||||
| THERMAL | |||||
| Storage | 73° F (23° C , +/- 3°C) | ||||
| Operating | Based on requirements and chip selected | ||||
| Shock/Fatigue | Based on requirements and chip selected | ||||
| OTHER | |||||
|
Standards |
ISO 7810, ISO 7816, optional NFC | ||||
|
ISO 14443 or ISO 15693 depending on chip |
EPC C1G2, ISO 18000-6 |
Based on requirements, optional NFC |
|||
| Options | Layout; material; color; transparency; other chips; customized card size (CR100, XL, XXL) | ||||
| Certifications | ISO 9001:2015, MasterCard® CQM certification, Industry-specific product certifications | ||||
Service:
FAQ:
Q: What payment methods your company accept?
A: We accept most of the payment methods, but mainly accept T/T.
Q: How long is the warranty time?
As part of our multiple services, we can offer 1 to 3 years warranty on all our products. Secure yourself and ask us about our extended warranty programs.
Q: Accept Sample?
A: Sample is available. We always supply sample to our clients for testing.
Q: Can you accept customized order?
A: Welcome, We have our own hardware factory and component engineer. Please send your own design and logo, we could make it as your idea/design.
![]()
![]()
![]()
