WIFI Handheld Smart POS Terminal With NFC Reader Loyalty Program System
Contact Person : Steven Yao
Phone Number : +86-13424312532
WhatsApp : +8613424312532
Minimum Order Quantity : | Negotiable | Price : | Negotiable |
---|---|---|---|
Packaging Details : | 1 pc per box, 10 pc per carton | Delivery Time : | 1-4 weeks |
Payment Terms : | T/T | Supply Ability : | 10000 Set/Sets per Month |
Place of Origin: | China | Brand Name: | Wisecard |
---|---|---|---|
Certification: | PCI CE Rohs | Model Number: | S8 |
Detail Information |
|||
OS: | Android 7 Or Above | FingerPrint: | Optional |
---|---|---|---|
Screen: | 5.5 Inch Touch Screen | Battery: | 7.4V5800mAh |
Printer: | Thermal Printer Inbedded | Camera: | 5M Pixel |
Communication: | 2G / 3G / 4G /wifi, Bluetooth | Color: | Blue |
Highlight: | touch screen Smart POS Terminal,4G Smart POS Terminal,5.5in wireless POS machine |
Product Description

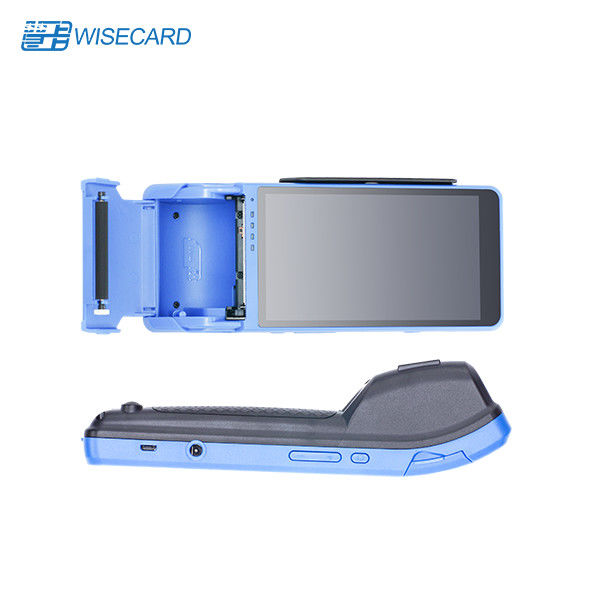

WCT-S8 is an intelligent multimedia handheld POS terminals, it adopts the mainstream intelligent technology, uses 4G, 3G, 2G, WIFI, and other communication technology, the safest Android version 7.0. security chip meets with the requirement of the PCI, reaching the highest safety standards of international PCI5. X, which makes it the absolute secury financial payment smart POS terminal. It supports to swipe magnetic stripe card, read smart IC card and contactless IC card, QR code, etc, which is the flagship product in the field of financial payment.
WCT-S8 Android POS Configuration | ||
Type | Product Spec | |
Platform | Processor | MTK MT8735 ( 4-Core ARM Cortex-A53,1.3GHz ) |
RAM | 1GB / 2GB LPDDR3 | |
FLASH | 8GB / 16GB EMMC | |
OS | Android 7.0 Security Payment OS | |
Security Processor | MAXIM MAX32555 (DeepCover Secure microcontroller) | |
Wireless | Wireless Standard | LTE-FDD/TDD-LTE/TDS-CDMA/WCDMA/CDMA2000/EDGE/GPRS |
4G | LTE-FDD : B1/B3/B8 (TBD) | |
TDD-LTE : B38/B39/B40/B41 | ||
3G | UMTS/HSPA/HSPA+/DC-HSPA+ : B1/B8 | |
TDS-CDMA : B34/B39 | ||
EVDO : BC0 | ||
2G | EDGE/GPRS : B3/B8 | |
WLAN | 2.4GHz ISM 2402MHz~2482MHz | |
BT 4.1 LE | 2.4GHz ISM 2402MHz~2480MHz | |
USIM | Card Slots | 4 PSAM slots, 2 SIM slots |
GPS | GPS | GPS, GLONASS |
LCD and Touch Panel | LCD Pixels | 720*1280 IPS |
LCD | 5.5 inch | |
Touch Panel | G+F+F, Capacitive Color Touch,Multi Touch, signature capable, video capable | |
Keypad | Physical key | Power ON/OFF, Volumn up, Volumn down. |
Virtual Keypad | Home Key, Function key, Numeric Keys. | |
Audio | Speaker | 1 W x 1 |
Microphone | Voice input | |
USB | USB Standard | USB Type C 2.0 |
Other | Charge Battery, OTG support | |
Camera | REAR | 8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video. |
FRONT | 2Mega Pixels, CMOS, JPEG picture, Video. | |
NFC | Standard | ISO14443 type A/B ( ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support ) |
Spectrum | 13.56MHz | |
IC card | Contactless Card | NFC 13.56 MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC 14443&7816 |
EMV card | Smart Card | EMV & PBOC Compliant |
MSR | Magnetic Card | ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec. |
Battery | Battery type | Li-ion polymer battery |
Capacity | 3.7V, 5800mAh | |
Charger | 5V/2A | |
Certification | ICC | EMV contact L1 / PBCO L1 |
EMV contact L2 / PBOC L2 | ||
NFC | EMV contactless L1 / qPBOC L1 | |
EMV contactless L2 / qPBOC L2 | ||
Security | PCI 5.0 | |
UPTS 2.0 | ||
Operating environment | Temperature | -5 to +50 °C |
Relative humidity | 10 % to 85 % RH | |
Storage environment | Temperature | -10 to +60 °C |
Relative humidity | 10 % to 90 % RH | |
Size and Weigt | Dimension and Weight | 203mm*85mm*53mm, 480g with battery |
Micro Printer | Printing method | Thermal-line dot method |
Paper | Thermal roll paper (standard) 57*40 mm | |
Effective Printing area | 48mm | |
Speed | Maximum 70mm/sec(480 dot line/sec) | |
Printing resolutions | 8 dots/mm | |
Character | 12*24dots and 24*48 dots | |
Number of columns | 32columns/line | |
Printing head life | Pulse resistance:100 million pulses/dot (under our standard conditions); | |
Abrasion resistance: paper traveling distance 50km (print ratio:25% or less) |
1, Do you have the items in stock?
The most of products are in stock. We can send the goods out within 3days after payment received. For the goods are out of stock, production time is about 7-10 days.
2, Do you offer other relevant items?
Yes, we do. We are offering PDA data collector, POS system, barcode scanner, label printer and label rewinder and so on.
3, If the goods are damaged badly, who is responsible for it?
We will be responsible for the damaged goods when it is damaged during transport, and we can exchange the new goods for you.
4, Can you make OEM or ODM for products?
OEM and ODM products is available for customer, as long as customer meet the MOQ. Also we have engineers for logo and products design for customers.
5, What about delivery time?
Samples and small order within 5 working days; bulk order delivery kindly check with seller.
6, What about MOQ?
For pos terminal, we can accept sample order firstly, so there is not limit for MOQ. For label paper/receipt paper ect.
7, Besides the English language, do your printers support other languages? what operation system they backup?
Yes, our printer not only supports English language, but also Russian, Spanish, Portuguese ect. 48 different languages available, and it backups IOS, Android, Windows, Linux, Opos operation systems.
8, What warranty and after-sale service do you offer?
Each POS terminal will have one year (12 months) warranty. Free components will be offered for repair in warranty period, if the issue caused by non-artificial damages.
Company Information:
Wisecard (a WiseGroup company) is a global solution provider that has been providing innovative payment and secure solutions to financial institutions, government entities and telco operators worldwide.
Wisecard have been providing EMV smart card, EMV biometric card, EMV perso software, card issuance, EMV embossers, POS terminals, smart banking, smart teller machine, kiosk, vending machine, biometric POS, Hardware Secure Module, mobile payment platform, private label card solution, prepaid card solution, card management system to partners in more than 60 countries worldwide. Wisecard’s product suite empower large global financial institutions and government sectors as well as small to medium sized retail banks.
Wisecard solutions are adapting to the highest and latest secure standard, and the solutions have been fully tested and certified by international test labs, like FBI, STQC, EMV, PCI DSS, PA DSS, VISA, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay and etc.
Notes: FBI, STQC, EMV, PCIDSS, PADSS, Visa, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay is a registered trademark. All trademarks referenced here are the property of the respective owners.
