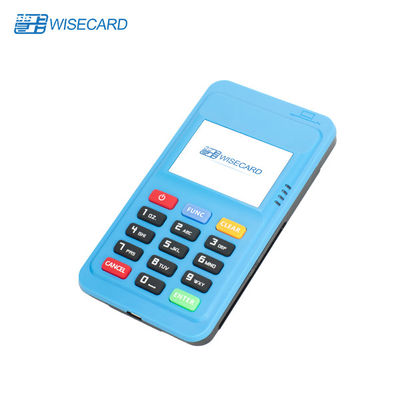

Mobile Handheld Portable Android & IOS Pos Terminal Mpos Terminal EMV PCI NFC Card Readers :
Secure Mobile Payment:
A fully encrypted card reader can ensure account information and credit card security.
Certificates:
EMV, PCI, Paywave, Paypass, etc
Bluetooth Connection
Connecting intelligent terminals via BT, and provide many convenient services include collection, payment, transfer, and so on combined with APP client-side.
Product Specification:
| Specifications |
|
| Processor |
32-bits High-performance security processor |
| Memory |
512KB flash, 64KB SRAM, External: 2MB flash |
| Display |
2 inches 320*240 Color LCD display |
| Keypad |
10 alphanumeric keys, 4 function keys, 1 power key |
| Magnetic Card Reader |
Compliant with ISO7811, ISO7812 |
| |
Track 1/2/3, Bi-directional Swipe |
| IC Card Reader |
Meets EMV/ PBOC 3.0 standards |
| Contactless Reader |
Support ISO/ IEC 14443 Type A&B, ISO/IEC 14443&7816 Standards |
| Status Bar |
4 signal lights |
| Communication |
Bluetooth 4.0, Support Android, IOS and Windows |
| Interface |
Micro USB |
| Language |
Support Chinese, English, etc. |
| Battery |
Rechargeable Lithium battery, 3.7V/ 250mAh |
| Working Environment |
Temperature: 0~50℃(32~122℉) Humidity: 10%~90%(non-condense) |
| Storage Environment |
Temperature: -20~70℃(-4~158℉) Humidity: 5%~95%(non-condense) |
| Cable |
USB Cable |
| Dimensions |
120mm*65mm*17.5mm(L*W*H) |
| Weight |
116g (include battery) |
| Certification |
PCI PTS 5.x, EMV Contact L1&L2, EMV Contactless L1, PBOC 3.0 L1&L2 |
| Optional Module |
Built-in 1D/ 2D Barcode Scanner |
FAQ:
Q: How long do I need to wait before my goods arrive?
A: 7-9 days for air transportation, 4-6 days for international express. 20-40 days for sea transportation.
Q: How long can I use before I need to recharge the battery?
A: Working time: up to 9 hours for continual scanning;
Standby time: Up to 120 hours (5 days);
Times will vary based on user settings, feature use and network configuration.
Q: What is the cost for your OEM service?
A: No need to pay extra for our OEM service if order qty over 1000pcs. Further discussion of other quantity.
Q: Can you offer ODM service?
A: Yes. We have more than 100 R&D staffs. And we have offered ODM services to top brands in the world.
Q: What payment methods do you accept?
A: T/T is highly acceptable.
Q: What is your warranty?
A: 12 months for main device, 6 months for accessories.
Company Information:
Wisecard (a WiseGroup company) is a global solution provider that has been providing innovative payment and secure solutions to financial institutions, government entities and telco operators worldwide.
Wisecard have been providing EMV smart card, EMV biometric card, EMV perso software, card issuance, EMV embossers, Smart POS machine, Android POS, POS terminals, smart banking, smart teller machine, kiosk, vending machine, biometric POS, Hardware Secure Module, mobile payment platform, private label card solution, prepaid card solution, card management system to partners in more than 60 countries worldwide. Wisecard’s product suite empower large global financial institutions and government sectors as well as small to medium sized retail banks.
Wisecard solutions are adapting to the highest and latest secure standard, and the solutions have been fully tested and certified by international test labs, like FBI, STQC, EMV, PCI DSS, PA DSS, VISA, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay and etc.
Notes: FBI, STQC, EMV, PCIDSS, PADSS, Visa, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay is a registered trademark. All trademarks referenced here are the property of the respective owners.
