WCT-T80 Handheld Android POS Terminal 4G NFC MT8766 Mobile System
Contact Person : Steven Yao
Phone Number : +86-13424312532
WhatsApp : +8613424312532
| Minimum Order Quantity : | Negotiable | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | 1 pc per box, 10 pc per carton | Delivery Time : | 1-4 weeks |
| Payment Terms : | T/T | Supply Ability : | 10000 Set/Sets per Month |
| Place of Origin: | China | Brand Name: | Wisecard |
|---|---|---|---|
| Certification: | PCI CE Rohs | Model Number: | S8 |
|
Detail Information |
|||
| Processor: | 4 Core ARM Cortex-A53 | OS: | Android 7 Or Above |
|---|---|---|---|
| Screen: | 5.5 Inch Touch Screen | Battery: | 7.4V5800mAh |
| Printer: | Thermal Printer Inbedded | Communication: | 2G / 3G / 4G /wifi, Bluetooth |
| CardReader: | Contactless, Contact, Magstripe | Color: | Blue |
| High Light: | PCI android POS terminal with printer,S8 android POS terminal with printer,PCI mobile POS terminal with printer |
||
Product Description

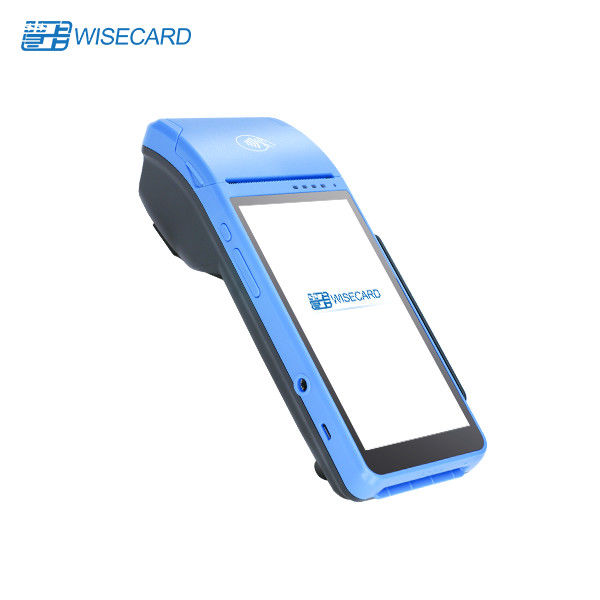

Android Handheld Smart POS Terminal With Printer and Barcode Scanner
Support full 3G, 4G Net-com, Bluetooth, WIFl multiple versions of connection, Excellent experience
Support Bluetooth 3.0/4.0
WIFI 2.4/50Hz dual band
Support 3G 4G mobile connection
Powerful core, intelligent and fast
Equipped with 4 core processor, powerful power, smooth and fast operation
4-core Cortex-A53 core
HD+ graphics processing
1.4GHz Principal frequency
5 million rear HD camera
HD camera quickly identify barcodes QR codes and record important information
Scan /Photo /Video
High speed printing Clear and Stable
Professional thermal print head with stable performance, clear print and longer service life
| WCT-S8 Android POS Configuration | ||
| Type | Product Spec | |
| Platform | Processor | MTK MT8735 ( 4-Core ARM Cortex-A53,1.3GHz ) |
| RAM | 1GB / 2GB LPDDR3 | |
| FLASH | 8GB / 16GB EMMC | |
| OS | Android 7.0 Security Payment OS | |
| Security Processor | MAXIM MAX32555 (DeepCover Secure microcontroller) | |
| Wireless | Wireless Standard | LTE-FDD/TDD-LTE/TDS-CDMA/WCDMA/CDMA2000/EDGE/GPRS |
| 4G | LTE-FDD : B1/B3/B8 (TBD) | |
| TDD-LTE : B38/B39/B40/B41 | ||
| 3G | UMTS/HSPA/HSPA+/DC-HSPA+ : B1/B8 | |
| TDS-CDMA : B34/B39 | ||
| EVDO : BC0 | ||
| 2G | EDGE/GPRS : B3/B8 | |
| WLAN | 2.4GHz ISM 2402MHz~2482MHz | |
| BT 4.1 LE | 2.4GHz ISM 2402MHz~2480MHz | |
| USIM | Card Slots | 4 PSAM slots, 2 SIM slots |
| GPS | GPS | GPS, GLONASS |
| LCD and Touch Panel | LCD Pixels | 720*1280 IPS |
| LCD | 5.5 inch | |
| Touch Panel | G+F+F, Capacitive Color Touch,Multi Touch, signature capable, video capable | |
| Keypad | Physical key | Power ON/OFF, Volumn up, Volumn down. |
| Virtual Keypad | Home Key, Function key, Numeric Keys. | |
| Audio | Speaker | 1 W x 1 |
| Microphone | Voice input | |
| USB | USB Standard | USB Type C 2.0 |
| Other | Charge Battery, OTG support | |
| Camera | REAR | 8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video. |
| FRONT | 2Mega Pixels, CMOS, JPEG picture, Video. | |
| NFC | Standard | ISO14443 type A/B ( ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support ) |
| Spectrum | 13.56MHz | |
| IC card | Contactless Card | NFC 13.56 MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC 14443&7816 |
| EMV card | Smart Card | EMV & PBOC Compliant |
| MSR | Magnetic Card | ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec. |
| Battery | Battery type | Li-ion polymer battery |
| Capacity | 3.7V, 5800mAh | |
| Charger | 5V/2A | |
| Certification | ICC | EMV contact L1 / PBCO L1 |
| EMV contact L2 / PBOC L2 | ||
| NFC | EMV contactless L1 / qPBOC L1 | |
| EMV contactless L2 / qPBOC L2 | ||
| Security | PCI 5.0 | |
| UPTS 2.0 | ||
| Operating environment | Temperature | -5 to +50 °C |
| Relative humidity | 10 % to 85 % RH | |
| Storage environment | Temperature | -10 to +60 °C |
| Relative humidity | 10 % to 90 % RH | |
| Size and Weigt | Dimension and Weight | 203mm*85mm*53mm, 480g with battery |
| Micro Printer | Printing method | Thermal-line dot method |
| Paper | Thermal roll paper (standard) 57*40 mm | |
| Effective Printing area | 48mm | |
| Speed | Maximum 70mm/sec(480 dot line/sec) | |
| Printing resolutions | 8 dots/mm | |
| Character | 12*24dots and 24*48 dots | |
| Number of columns | 32columns/line | |
| Printing head life | Pulse resistance:100 million pulses/dot (under our standard conditions); | |
| Abrasion resistance: paper traveling distance 50km (print ratio:25% or less) | ||
Company Information:
Wisecard (a WiseGroup company) is a global solution provider that has been providing innovative payment and secure solutions to financial institutions, government entities and telco operators worldwide.
Wisecard have been providing EMV smart card, EMV biometric card, EMV perso software, card issuance, EMV embossers, POS terminals, smart banking, smart teller machine, kiosk, vending machine, biometric POS, Hardware Secure Module, mobile payment platform, private label card solution, prepaid card solution, card management system to partners in more than 60 countries worldwide. Wisecard’s product suite empower large global financial institutions and government sectors as well as small to medium sized retail banks.
Wisecard solutions are adapting to the highest and latest secure standard, and the solutions have been fully tested and certified by international test labs, like FBI, STQC, EMV, PCI DSS, PA DSS, VISA, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay and etc.
Notes: FBI, STQC, EMV, PCIDSS, PADSS, Visa, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay is a registered trademark. All trademarks referenced here are the property of the respective owners.
