Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | Wisecard |
Certification: | CE, Rohs |
Model Number: | WCT-Mini |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | Negotiable |
Price: | Negotiable |
Packaging Details: | export carton |
Delivery Time: | 1-4 weeks |
Payment Terms: | T/T |
Supply Ability: | 10000 units per month |
Detail Information |
|||
Application: | Payment Collection | Momery: | 1GB + 8GB Or 2GB + 16GB |
---|---|---|---|
Screen: | High Sensitivity Capacitive Touch Screen | Camera: | Rear Camera: 5 Mega Pixel Auto Focus Support Optional: 0.3M, FF; Support 1D/2D Code |
Communication: | 2G: GSM/EDGE 850/900/1800/1900 3G:WCDMA Band 1/2/5/8 4G: FDD | CardReader: | Contactless, Contact, Magstripe |
Battery: | 3.7V3000mAh | Standard: | EMV, PCI, Visa, Mastercard |
High Light: | Mini android mobile POS terminal,EMV android mobile POS terminal,Rohs mini POS terminal |
Product Description

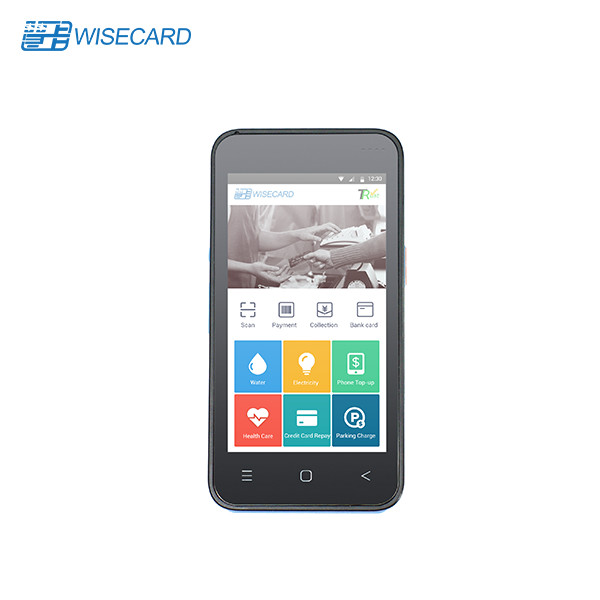

WCT-Mini is an Android OS based smartphone payment terminal with WIFI and 3G/4G communication modules which is designed to make various mobile payments on the go, such as magnetic card, IC card, NFC, barcode, QR code and sound wave payment.
★ Integrated Industrial Design
Stylish appearance with complete color touch screen, skid-proof rubber layer design on the back; unique Push-talk function can realize one to one and one to many cross connections of the devices’ holders based on the local area network platform.
★ Full Functionality
Powerful smart mobile terminal with WIFI and 3/4G communication modules make the various mobile payment on the go, such as magnetic card, NFC, barcode, QR code and sound wave payment are realized on the terminal.
★ High Intelligence
Open and intelligent Android OS device is applicable to wide and complex business environments by development and loading of various industrial applications.
Product Specifications | |
Iems | Specifications |
Operation | Security OS, Android 5.1 |
CPU | Qualcomm Quad-core, 1.1 GHz |
Memory | 1GB DDR3, 8GB Flash Optional: 2+16GB |
Display | 4.5 inch, Resolution: 854*480 |
Screen | High Sensitivity Capacitive Touch Screen |
Camera | Rear Camera: 5 Mega Pixel Auto Focus Support Optional: 0.3M, FF; Support 1D/2D Code |
Communication | 2G: GSM/EDGE 850/900/1800/1900 3G:WCDMA Band 1/2/5/8 4G: FDD Band 1/3/7; TDD Band: 38/39/40/41 |
WIFI | Support 2.4G/5G, a/b/g/n |
Bluetooth | BT 4.0+BLE |
GPS | Support: GPS/A-GPS, GLONASS, BEIDOU |
NFC | ISO/IEC 14443 Type A&B, Felica,ISO/IEC 14443&7816 |
IC Card Reader | ISO/IEC 7816, Conform toEMV L1/L2 |
Magnetic Card Reader | ISO/IEC 7816, Track 1/2/3, Bi-directional |
PSAM | 1 PSAM Slots, ISO/IEC 7816 |
Indicator | 4 Independent POS Indicators |
Buzzer | Support |
Memory Extension | Micro SD/TF, 64GB |
USB Port | Micro USB, OTG Supported |
SIM Card Slot | 1 Slot, 25*15mm |
Audio | 1 Speaker, 1 Mircophone |
Auxiliary Lamp | Support Red Light Position, White Light Compensation |
Keys | Power Key, Push-talk Key,Volume Key, Multifunction Key(Default Scaning Key); Touch Key: MENU/HOME/BACK Keys |
Battery | 3000mAh |
Power | Input: 100-240V, 50/60 Hz 0.35A |
Dimensions | 136*69*22.1 mm |
Weight | 225g |
Accessories | Adaptor, USB Cable |
Optional Accessories | BT Earphone, BT Printer, Waist Pocket |
Certifications | PCI PTS, EMV L1&L2, EMV Contactless L1, Visa Paywave, MasterCard Paypass, MasterCard TQM, CE, Conformity Certificate of Explosion-Proof |
Company Information:
Wisecard (a WiseGroup company) is a global solution provider that has been providing innovative payment and secure solutions to financial institutions, government entities and telco operators worldwide.
Wisecard have been providing EMV smart card, EMV biometric card, EMV perso software, card issuance, EMV embossers, POS terminals, smart banking, smart teller machine, kiosk, vending machine, biometric POS, Hardware Secure Module, mobile payment platform, private label card solution, prepaid card solution, card management system to partners in more than 60 countries worldwide. Wisecard’s product suite empower large global financial institutions and government sectors as well as small to medium sized retail banks.
Wisecard solutions are adapting to the highest and latest secure standard, and the solutions have been fully tested and certified by international test labs, like FBI, STQC, EMV, PCI DSS, PA DSS, VISA, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay and etc.
Notes: FBI, STQC, EMV, PCIDSS, PADSS, Visa, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay is a registered trademark. All trademarks referenced here are the property of the respective owners.
