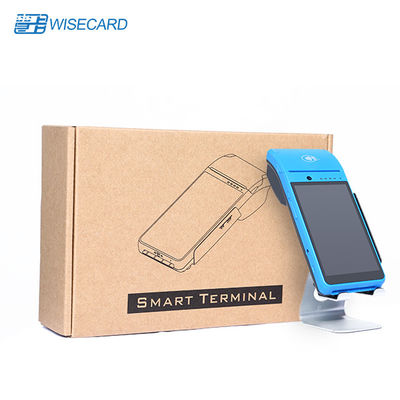

Touch Screen Mobile EDC Machine Android 7.0 POS Terminal With Android NFC Reader

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : 1 pc per box, 10 pc per carton Delivery Time : 1-4 weeks
Payment Terms : T/T Supply Ability : 10000 Set/Sets per Month
Place of Origin: China Brand Name: Wisecard
Certification: PCI CE Rohs Model Number: S8FZ

Detail Information

Processor: 4 Core ARM Cortex-A53 OS: Android 7 Or Above
FingerPrint: Zhiang, FBI Certified Screen: 5.5 Inch Touch Screen
Battery: 7.4V5800mAh USIM Card Slots: 4 PSAM Slots, 2 SIM Slots
CardReader: Contactless, Contact, Magstripe Color: Scarlet And Green
High Light:

EMV Wireless Handheld POS Terminal

,

Rohs PCI Smart Payment Terminal

,

Android 7.0 QR Code POS Terminal

Product Description

Touch Screen Mobile EDC Machine Android 7.0 POS Terminal With Android NFC Reader



WCT-S8 Android smart POS with printer and fingerprint collectin module(optional) , android 7 operating system, this fine workmanship and top quality machine is the best choice on the market.
Print receipt every where! With high configuration,S8 can be used widely in Lottery,Express,Mobile-Topup,Taxfree shop,Traffic ticket.



Features:

1. Supports RFID, GPS, 4G, 3D, WIFI,Wireless charging/Type C charging Way NFC reader.



2. Android 6.0 operating system.



3. Thermal printer: Width: 58mm



4. Support 2 SIM Card, PSAM



5. Bluetoothand Fingerprint, Barcode, fingerprint card identification.







WCT-S8 Android POS Configuration
Type Product Spec
Platform Processor MTK MT8735 ( 4-Core ARM Cortex-A53,1.3GHz )
RAM 1GB / 2GB LPDDR3
FLASH 8GB / 16GB EMMC
OS Android 7.0 Security Payment OS
Security Processor MAXIM MAX32555 (DeepCover Secure microcontroller)
Wireless Wireless Standard LTE-FDD/TDD-LTE/TDS-CDMA/WCDMA/CDMA2000/EDGE/GPRS
4G LTE-FDD : B1/B3/B8 (TBD)
TDD-LTE : B38/B39/B40/B41
3G UMTS/HSPA/HSPA+/DC-HSPA+ : B1/B8
TDS-CDMA : B34/B39
EVDO : BC0
2G EDGE/GPRS : B3/B8
WLAN 2.4GHz ISM 2402MHz~2482MHz
BT 4.1 LE 2.4GHz ISM 2402MHz~2480MHz
USIM Card Slots 4 PSAM slots, 2 SIM slots
GPS GPS GPS, GLONASS
LCD and Touch Panel LCD Pixels 720*1280 IPS
LCD 5.5 inch
Touch Panel G+F+F, Capacitive Color Touch,Multi Touch, signature capable, video capable
Keypad Physical key Power ON/OFF, Volumn up, Volumn down.
Virtual Keypad Home Key, Function key, Numeric Keys.
Audio Speaker 1 W x 1
Microphone Voice input
USB USB Standard USB Type C 2.0
Other Charge Battery, OTG support
Camera REAR 8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video.
FRONT 2Mega Pixels, CMOS, JPEG picture, Video.
NFC Standard ISO14443 type A/B ( ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support )
Spectrum 13.56MHz
IC card Contactless Card NFC 13.56 MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC 14443&7816
EMV card Smart Card EMV & PBOC Compliant
MSR Magnetic Card ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec.
Battery Battery type Li-ion polymer battery
Capacity 3.7V, 5800mAh
Charger 5V/2A
Certification ICC EMV contact L1 / PBCO L1
EMV contact L2 / PBOC L2
NFC EMV contactless L1 / qPBOC L1
EMV contactless L2 / qPBOC L2
Security PCI 5.0
UPTS 2.0
Operating environment Temperature -5 to +50 °C
Relative humidity 10 % to 85 % RH
Storage environment Temperature -10 to +60 °C
Relative humidity 10 % to 90 % RH
Size and Weigt Dimension and Weight 203mm*85mm*53mm, 480g with battery
Micro Printer Printing method Thermal-line dot method
Paper Thermal roll paper (standard) 57*40 mm
Effective Printing area 48mm
Speed Maximum 70mm/sec(480 dot line/sec)
Printing resolutions 8 dots/mm
Character 12*24dots and 24*48 dots
Number of columns 32columns/line
Printing head life Pulse resistance:100 million pulses/dot (under our standard conditions);
Abrasion resistance: paper traveling distance 50km (print ratio:25% or less)





FAQ:

1. Do you have POS in stock? How long you can send out the goods?

Yes, we have. Normally, samples within 3 working days. Bulk qty about 7 days.



2. What is your warranty?

We offer 12-months warranty, lifelong maintenance service. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;



3.Can I get a sample for testing before formal order? How to get it?

Yes. Of course. We will arrange shipment for you through DHL as soon as we receive the payment.



4. Can you provide SDK?

Yes, SDK will be provided free to help you do the secondary development.



5. Do you offer other POS peripherals?

Yes, we offer One-stop POS products service, such as POS / Mobile / Kiosk / Panel Printer, Barcode Scanner, Smart / NFC / Magnetic Card Reader & Writer, POS Keyboard, Cash Drawer, Cash Register,Passport Reader, Check Scanner!



6.What payment methods your company accept?

We mainly accept T/T.



7. What is the delivery date if I place the order?

Re: Most of the product are in stock, and can be sent to you within 3 days after payment received, bulk qty lead time is about 5-15 days



8. Do you support technical support?

Re: We supply free technical service, also Manual and Driver.



Touch Screen Mobile EDC Machine Android 7.0 POS Terminal With Android NFC Reader 0Touch Screen Mobile EDC Machine Android 7.0 POS Terminal With Android NFC Reader 1Touch Screen Mobile EDC Machine Android 7.0 POS Terminal With Android NFC Reader 2
