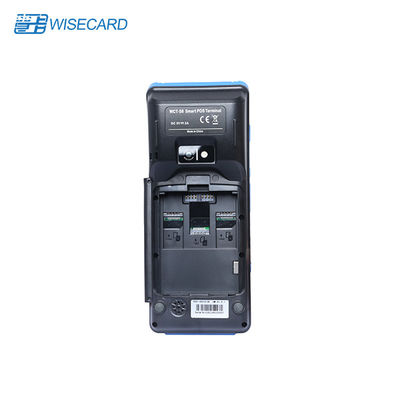

WIFI Handheld Smart POS Terminal With NFC Reader Loyalty Program System
Contact Person : Steven Yao
Phone Number : +86-13424312532
WhatsApp : +8613424312532
|Minimum Order Quantity :||Negotiable||Price :||Negotiable|
|Packaging Details :||1 pc per box, 10 pc per carton||Delivery Time :||1-4 weeks|
|Payment Terms :||T/T||Supply Ability :||10000 Set/Sets per Month|
|Place of Origin:||China||Brand Name:||Wisecard|
|Certification:||PCI CE Rohs||Model Number:||S8|
|Processor:||4 Core ARM Cortex-A53||BT:||4.1 LE-2.4GHz ISM 2402MHz~2480MHz|
|Screen:||5.5 Inch Touch Screen||Battery Capacity:||3.7V, 5800mAh|
|Printer:||Thermal Printer Inbedded||Camera:||5M Pixel|
|CardReader:||Contactless, Contact, Magstripe||USB Standard:||USB Type C 2.0|
EMV Wireless Handheld POS Terminal,
Rohs PCI Smart Payment Terminal,
Android 7.0 QR Code POS Terminal
A Full Touch Screen Smart Mobile POS Terminal
WCT-S8 employs high performance CPU and integrates payment, barcode scanner, and high-speed printer in one body. Large volume battery design makes the performance more excellence.
|WCT-S8 Android POS Configuration|
|Platform||Processor||MTK MT8735 ( 4-Core ARM Cortex-A53,1.3GHz )|
|RAM||1GB / 2GB LPDDR3|
|FLASH||8GB / 16GB EMMC|
|OS||Android 7.0 Security Payment OS|
|Security Processor||MAXIM MAX32555 (DeepCover Secure microcontroller)|
|4G||LTE-FDD : B1/B3/B8 (TBD)|
|TDD-LTE : B38/B39/B40/B41|
|3G||UMTS/HSPA/HSPA+/DC-HSPA+ : B1/B8|
|TDS-CDMA : B34/B39|
|EVDO : BC0|
|2G||EDGE/GPRS : B3/B8|
|WLAN||2.4GHz ISM 2402MHz~2482MHz|
|BT 4.1 LE||2.4GHz ISM 2402MHz~2480MHz|
|USIM||Card Slots||4 PSAM slots, 2 SIM slots|
|LCD and Touch Panel||LCD Pixels||720*1280 IPS|
|Touch Panel||G+F+F, Capacitive Color Touch,Multi Touch, signature capable, video capable|
|Keypad||Physical key||Power ON/OFF, Volumn up, Volumn down.|
|Virtual Keypad||Home Key, Function key, Numeric Keys.|
|Audio||Speaker||1 W x 1|
|USB||USB Standard||USB Type C 2.0|
|Other||Charge Battery, OTG support|
|Camera||REAR||8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video.|
|FRONT||2Mega Pixels, CMOS, JPEG picture, Video.|
|NFC||Standard||ISO14443 type A/B ( ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support )|
|IC card||Contactless Card||NFC 13.56 MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC 14443&7816|
|EMV card||Smart Card||EMV & PBOC Compliant|
|MSR||Magnetic Card||ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec.|
|Battery||Battery type||Li-ion polymer battery|
|Certification||ICC||EMV contact L1 / PBCO L1|
|EMV contact L2 / PBOC L2|
|NFC||EMV contactless L1 / qPBOC L1|
|EMV contactless L2 / qPBOC L2|
|Operating environment||Temperature||-5 to +50 °C|
|Relative humidity||10 % to 85 % RH|
|Storage environment||Temperature||-10 to +60 °C|
|Relative humidity||10 % to 90 % RH|
|Size and Weigt||Dimension and Weight||203mm*85mm*53mm, 480g with battery|
|Micro Printer||Printing method||Thermal-line dot method|
|Paper||Thermal roll paper (standard) 57*40 mm|
|Effective Printing area||48mm|
|Speed||Maximum 70mm/sec(480 dot line/sec)|
|Printing resolutions||8 dots/mm|
|Character||12*24dots and 24*48 dots|
|Number of columns||32columns/line|
|Printing head life||Pulse resistance:100 million pulses/dot (under our standard conditions);|
|Abrasion resistance: paper traveling distance 50km (print ratio:25% or less)|
