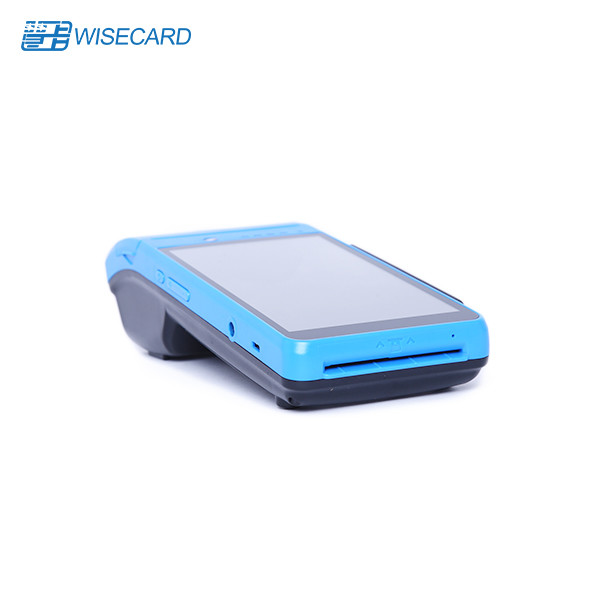

CMOS 2.4GHz ISM Android Pos Terminal 5800mAh Touch Screen

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : 1 pc per box, 10 pc per carton Delivery Time : 1-4 weeks
Payment Terms : T/T Supply Ability : 10000 Set/Sets per Month
Place of Origin: China Brand Name: Wisecard
Certification: PCI CE Rohs Model Number: T90

Detail Information

Touch Panel: G+F+F, Capacitive Color Touch,Multi Touch, Signature Capable, Video Capable Physical Key: Power ON/OFF, Volumn Up, Volumn Down.
Virtual Keypad: Home Key, Function Key, Numeric Keys REAR Camera: 8Mega Pixels, CMOS, AF, QR/2D Barcode, JPEG Picture, Video.
Battery Capacity: 3.7V, 5800mAh Battery Charger: 5V/2A
WLAN: 2.4GHz ISM 2402MHz~2482MHz BT: 4.1 LE 2.4GHz ISM 2402MHz~2480MHz
High Light:

2.4GHz ISM Android Pos Terminal

,

CMOS Android Pos Terminal

,

5800mAh Pos Touch Terminal

Product Description

Android POS payment touch screen machine wireless NFC payment retail Terminal With Printer



★ Android 7.0 OS and Quad-Core

The performance of WCT-T90 is higher than the general level on the market since it's powered by Android 7.0 system (also called Android Oreo) and a Quad-Core processor with 1GB DDR+8GB memory or 2GB + 16GB.

★ Smart Payments All In One Machine

WCT-T90 supports reading Contact Card, NFC card, IC card, QR-code, Dual interface card, magnetic card. So it can serve for contact and contactless payment, QR-code Payment, smart card payment. Support ISO14443 Type A/B, ISO/IEC 14443&7816, ISO18092 compliant.

★ High-speed Printer

The thermal Printer ensures clear readability 58mm printing with printing speed increased by 10%.



More Options

Optional functions adapt to your actual needs.

such as Fingerprint Reader, IC Card Reader, Charging Base, Fiscal Memory, and other accessories, etc.



7.4V/5000mAH Large Battery Super Endurance

WCT-T90 can support a massive 5800mAh battery. This means that you can operate it much longer and that you need to charge it only occasionally.

*The standard battery is 7.4V / 2500mAH.





WCT-T90 Android POS Configuration
Type Product Spec
Platform Processor MTK MT8735 ( 4-Core ARM Cortex-A53,1.3GHz )
RAM 1GB / 2GB LPDDR3
FLASH 8GB / 16GB EMMC
OS Android 7.0 Security Payment OS
Security Processor MAXIM MAX32555 (DeepCover Secure microcontroller)
Wireless Wireless Standard LTE-FDD/TDD-LTE/TDS-CDMA/WCDMA/CDMA2000/EDGE/GPRS
4G LTE-FDD : B1/B3/B8 (TBD)
TDD-LTE : B38/B39/B40/B41
3G UMTS/HSPA/HSPA+/DC-HSPA+ : B1/B8
TDS-CDMA : B34/B39
EVDO : BC0
2G EDGE/GPRS : B3/B8
WLAN 2.4GHz ISM 2402MHz~2482MHz
BT 4.1 LE 2.4GHz ISM 2402MHz~2480MHz
USIM Card Slots 4 PSAM slots, 2 SIM slots
GPS GPS GPS, GLONASS
LCD and Touch Panel LCD Pixels 720*1280 IPS
LCD 5.5 inch
Touch Panel G+F+F, Capacitive Color Touch,Multi Touch, signature capable, video capable
Keypad Physical key Power ON/OFF, Volumn up, Volumn down.
Virtual Keypad Home Key, Function key, Numeric Keys.
Audio Speaker 1 W x 1
Microphone Voice input
USB USB Standard USB Type C 2.0
Other Charge Battery, OTG support
Camera REAR 8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video.
FRONT 2Mega Pixels, CMOS, JPEG picture, Video.
NFC Standard ISO14443 type A/B ( ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support )
Spectrum 13.56MHz
IC card Contactless Card NFC 13.56 MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC 14443&7816
EMV card Smart Card EMV & PBOC Compliant
MSR Magnetic Card ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec.
Battery Battery type Li-ion polymer battery
Capacity 3.7V, 5800mAh
Charger 5V/2A
Certification ICC EMV contact L1 / PBCO L1
EMV contact L2 / PBOC L2
NFC EMV contactless L1 / qPBOC L1
EMV contactless L2 / qPBOC L2
Security PCI 5.0
UPTS 2.0
Operating environment Temperature -5 to +50 °C
Relative humidity 10 % to 85 % RH
Storage environment Temperature -10 to +60 °C
Relative humidity 10 % to 90 % RH
Size and Weigt Dimension and Weight 203mm*85mm*53mm, 480g with battery
Micro Printer Printing method Thermal-line dot method
Paper Thermal roll paper (standard) 57*40 mm
Effective Printing area 48mm
Speed Maximum 70mm/sec(480 dot line/sec)
Printing resolutions 8 dots/mm
Character 12*24dots and 24*48 dots
Number of columns 32columns/line
Printing head life Pulse resistance:100 million pulses/dot (under our standard conditions);
Abrasion resistance: paper traveling distance 50km (print ratio:25% or less)





Trade conditions

1. Payment Terms: T/T LC, Western Union, Money Gram, Paypal, etc...

2. Sample Lead Time: 2-4days when there is stockand57ays for custom design or logo adding.

3. Mass Production Lead Time: 20-25days, and 30-35days for custom design.

4. Shipping Port: Shenzhen, China. We can manage shipment from the beginning to the end for you.

5.Door to door service: We have good channels by DHL/UPS/FEDEX/TNT as options for you.



Quality guarantee:

1. All our products have one year guarantee from the shipping date

2. Under Guarantee: if any non-human damage happen, we’ll offer free pairing or replacement, including delivery cost

3. Out of guarantee: we offer repairing pats at lower cost, and service free in charge.



FAQ

Q:Are you a factory or simply a trading company?

A: We are a true OEM/ODM factory. Please read our company profile, for more information on this issue.



Q: What are the shipment terms and delivery times of your company?

A: Delivery / production time is directly affected by the size of the order. Also, please be aware, some factories may not advise you, but after the production delays, you might be facing a few more days delays before catching your sea or your on-board flight departures. ( might be anywhere from 3 to 7 working days). Again, depending in which season you are shipping.



Q:Can we print our Logo on the products? What is MOQ?

A:We can print your own Logo on it as you like. There is no MOQ for stock models. For customized models will depending on your requests. Different methods are used for logos, please ask your Key Account MGR for more information on this issue, we will surely find the right solution for you!





CMOS 2.4GHz ISM Android Pos Terminal 5800mAh Touch Screen 0CMOS 2.4GHz ISM Android Pos Terminal 5800mAh Touch Screen 1CMOS 2.4GHz ISM Android Pos Terminal 5800mAh Touch Screen 2



Company Information:

Wisecard (a WiseGroup company) is a global solution provider that has been providing innovative payment and secure solutions to financial institutions, government entities and telco operators worldwide.



Wisecard have been providing EMV smart card, EMV biometric card, EMV perso software, card issuance, EMV embossers, POS terminals, smart banking, smart teller machine, kiosk, vending machine, biometric POS, Hardware Secure Module, mobile payment platform, private label card solution, prepaid card solution, card management system to partners in more than 60 countries worldwide. Wisecard’s product suite empower large global financial institutions and government sectors as well as small to medium sized retail banks.



Wisecard solutions are adapting to the highest and latest secure standard, and the solutions have been fully tested and certified by international test labs, like FBI, STQC, EMV, PCI DSS, PA DSS, VISA, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay and etc.



Notes: FBI, STQC, EMV, PCIDSS, PADSS, Visa, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay is a registered trademark. All trademarks referenced here are the property of the respective owners.
