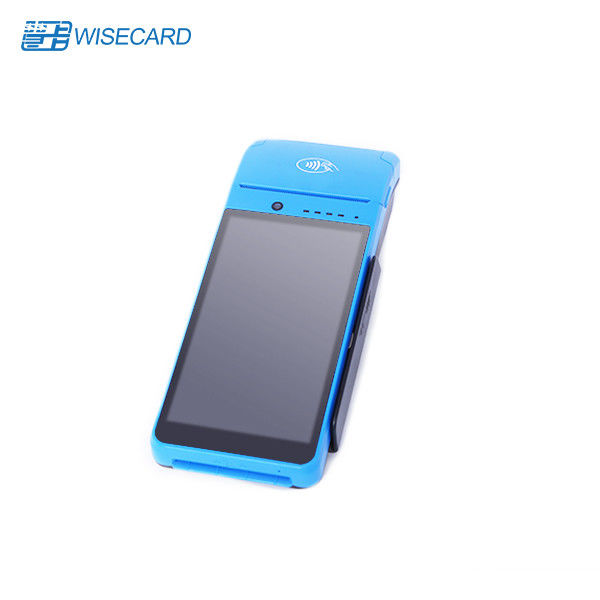

13.56MHz Epos Android Handheld Pos Terminal MTK MT8735 1D 2D Barcode

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : 1 pc per box, 10 pc per carton Delivery Time : 1-4 weeks
Payment Terms : T/T Supply Ability : 10000 Set/Sets per Month
Place of Origin: China Brand Name: Wisecard
Certification: PCI CE Rohs Model Number: T90

Detail Information

Processor: MTK MT8735 Physical Key: Power ON/OFF, Volumn Up, Volumn Down.
Virtual Keypad: Home Key, Function Key, Numeric Keys REAR Camera: 8Mega Pixels, CMOS, AF, QR/2D Barcode, JPEG Picture, Video.
Battery Capacity: 3.7V, 5800mAh Battery Charger: 5V/2A
USIM Card Slots: 4 PSAM Slots, 2 SIM Slots GPS: GPS, GLONASS
High Light:

Epos Android Handheld Pos Terminal

,

13.56MHz Handheld Pos Terminal

,

MTK MT8735 Thermal Printer POS Machine

Product Description

Cheap price WCT-T90 all in one epos android handheld pos terminal thermal printer machine support 1D 2D barcode reading



★ Fashionable Appearance and Friendly UI

Small size with big screen

Fashionable line and elegant appearance

Ergonomic and integrity design study

Along with friendly customize UI

★ Excellent Performance

High Performance CPU, 4 core processors

Supporting 4G communication model

High volume lithium battery, satisfies intensive payment transaction requests.

★ Various Payment Models Support

Support magnetic strip card, financial IC card and various contactless cards

Embodied with 1D&2D barcode scanner





More Options

Optional functions adapt to your actual needs.

such as Fingerprint Reader, IC Card Reader, Charging Base, Fiscal Memory, and other accessories, etc.



7.4V/5000mAH Large Battery Super Endurance

WCT-T90 can support a massive 5800mAh battery. This means that you can operate it much longer and that you need to charge it only occasionally.

*The standard battery is 7.4V / 2500mAH.





WCT-T90 Android POS Configuration
Type Product Spec
Platform Processor MTK MT8735 ( 4-Core ARM Cortex-A53,1.3GHz )
RAM 1GB / 2GB LPDDR3
FLASH 8GB / 16GB EMMC
OS Android 7.0 Security Payment OS
Security Processor MAXIM MAX32555 (DeepCover Secure microcontroller)
Wireless Wireless Standard LTE-FDD/TDD-LTE/TDS-CDMA/WCDMA/CDMA2000/EDGE/GPRS
4G LTE-FDD : B1/B3/B8 (TBD)
TDD-LTE : B38/B39/B40/B41
3G UMTS/HSPA/HSPA+/DC-HSPA+ : B1/B8
TDS-CDMA : B34/B39
EVDO : BC0
2G EDGE/GPRS : B3/B8
WLAN 2.4GHz ISM 2402MHz~2482MHz
BT 4.1 LE 2.4GHz ISM 2402MHz~2480MHz
USIM Card Slots 4 PSAM slots, 2 SIM slots
GPS GPS GPS, GLONASS
LCD and Touch Panel LCD Pixels 720*1280 IPS
LCD 5.5 inch
Touch Panel G+F+F, Capacitive Color Touch,Multi Touch, signature capable, video capable
Keypad Physical key Power ON/OFF, Volumn up, Volumn down.
Virtual Keypad Home Key, Function key, Numeric Keys.
Audio Speaker 1 W x 1
Microphone Voice input
USB USB Standard USB Type C 2.0
Other Charge Battery, OTG support
Camera REAR 8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video.
FRONT 2Mega Pixels, CMOS, JPEG picture, Video.
NFC Standard ISO14443 type A/B ( ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support )
Spectrum 13.56MHz
IC card Contactless Card NFC 13.56 MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC 14443&7816
EMV card Smart Card EMV & PBOC Compliant
MSR Magnetic Card ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec.
Battery Battery type Li-ion polymer battery
Capacity 3.7V, 5800mAh
Charger 5V/2A
Certification ICC EMV contact L1 / PBCO L1
EMV contact L2 / PBOC L2
NFC EMV contactless L1 / qPBOC L1
EMV contactless L2 / qPBOC L2
Security PCI 5.0
UPTS 2.0
Operating environment Temperature -5 to +50 °C
Relative humidity 10 % to 85 % RH
Storage environment Temperature -10 to +60 °C
Relative humidity 10 % to 90 % RH
Size and Weigt Dimension and Weight 203mm*85mm*53mm, 480g with battery
Micro Printer Printing method Thermal-line dot method
Paper Thermal roll paper (standard) 57*40 mm
Effective Printing area 48mm
Speed Maximum 70mm/sec(480 dot line/sec)
Printing resolutions 8 dots/mm
Character 12*24dots and 24*48 dots
Number of columns 32columns/line
Printing head life Pulse resistance:100 million pulses/dot (under our standard conditions);
Abrasion resistance: paper traveling distance 50km (print ratio:25% or less)





Trade conditions

1. Payment Terms: T/T LC, Western Union, Money Gram, Paypal, etc...

2. Sample Lead Time: 2-4days when there is stockand57ays for custom design or logo adding.

3. Mass Production Lead Time: 20-25days, and 30-35days for custom design.

4. Shipping Port: Shenzhen, China. We can manage shipment from the beginning to the end for you.

5.Door to door service: We have good channels by DHL/UPS/FEDEX/TNT as options for you.



Quality guarantee:

1. All our products have one year guarantee from the shipping date

2. Under Guarantee: if any non-human damage happen, we’ll offer free pairing or replacement, including delivery cost

3. Out of guarantee: we offer repairing pats at lower cost, and service free in charge.



Custom design is welcome :

Customized projects accepted including software and hardware.

Don't hesitate to share your idea with us, we have experienced engineer team and always do our best to help client's project.



FAQ

Q: What payment methods your company accept?

A: We accept most of the payment methods, but mainly accept T/T.

Q: How long is the warranty time?

As part of our multiple services, we can offer 1 to 3 years warranty on all our products. Secure yourself and ask us about our extended warranty programs.

Q: Accept Sample?
A: Sample is available. We always supply sample to our clients for testing.



13.56MHz Epos Android Handheld Pos Terminal MTK MT8735 1D 2D Barcode 013.56MHz Epos Android Handheld Pos Terminal MTK MT8735 1D 2D Barcode 113.56MHz Epos Android Handheld Pos Terminal MTK MT8735 1D 2D Barcode 2
