WIFI Handheld Smart POS Terminal With NFC Reader Loyalty Program System
Contact Person : Steven Yao
Phone Number : +86-13424312532
WhatsApp : +8613424312532
|Minimum Order Quantity :||Negotiable||Price :||Negotiable|
|Packaging Details :||1 pc per box, 10 pc per carton||Delivery Time :||1-4 weeks|
|Payment Terms :||T/T||Supply Ability :||10000 Set/Sets per Month|
|Place of Origin:||China||Brand Name:||Wisecard|
|Certification:||PCI CE Rohs||Model Number:||T90|
|Processor:||MTK MT8735||USIM Card Slots:||4 PSAM Slots, 2 SIM Slots|
|Touch Panel:||G+F+F, Capacitive Color Touch,Multi Touch, Signature Capable, Video Capable||Physical Key:||Power ON/OFF, Volumn Up, Volumn Down.|
|Virtual Keypad:||Home Key, Function Key, Numeric Keys||REAR Camera:||8Mega Pixels, CMOS, AF, QR/2D Barcode, JPEG Picture, Video.|
|Contactless Card:||NFC 13.56 MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC 14443&7816||Smart Card:||EMV & PBOC Compliant|
EMV Handheld Mobile Cash Machine,
MTK MT8735 Handheld Mobile Cash Machine,
Android 7.0 WIFI POS Printer Machine

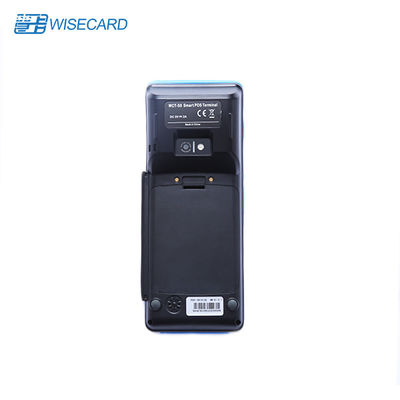

WCT-T90 Handheld Mobile Cash Machine Android System Restaurant Automatic WIFI POS Printer pos machine with printer
WCT-T90 is an intelligent multimedia handheld POS terminals, it adopts the mainstream intelligent technology, uses 4G, 3G, 2G, WIFI, and other communication technology, the safest Android version 7.0. security chip meets with the requirement of the PCI, reaching the highest safety standards of international PCI5. X, which makes it the absolute secure financial payment smart POS terminal. It supports to swipe magnetic stripe card, read smart IC card and contactless IC card, QR code, etc, which is the flagship product in the field of financial payment.
Optional functions adapt to your actual needs.
such as Fingerprint Reader, IC Card Reader, Charging Base, Fiscal Memory, and other accessories, etc.
7.4V/5000mAH Large Battery Super Endurance
WCT-T90 can support a massive 5800mAh battery. This means that you can operate it much longer and that you need to charge it only occasionally.
*The standard battery is 7.4V / 2500mAH.
|WCT-T90 Android POS Configuration|
|Platform||Processor||MTK MT8735 ( 4-Core ARM Cortex-A53,1.3GHz )|
|RAM||1GB / 2GB LPDDR3|
|FLASH||8GB / 16GB EMMC|
|OS||Android 7.0 Security Payment OS|
|Security Processor||MAXIM MAX32555 (DeepCover Secure microcontroller)|
|4G||LTE-FDD : B1/B3/B8 (TBD)|
|TDD-LTE : B38/B39/B40/B41|
|3G||UMTS/HSPA/HSPA+/DC-HSPA+ : B1/B8|
|TDS-CDMA : B34/B39|
|EVDO : BC0|
|2G||EDGE/GPRS : B3/B8|
|WLAN||2.4GHz ISM 2402MHz~2482MHz|
|BT 4.1 LE||2.4GHz ISM 2402MHz~2480MHz|
|USIM||Card Slots||4 PSAM slots, 2 SIM slots|
|LCD and Touch Panel||LCD Pixels||720*1280 IPS|
|Touch Panel||G+F+F, Capacitive Color Touch,Multi Touch, signature capable, video capable|
|Keypad||Physical key||Power ON/OFF, Volumn up, Volumn down.|
|Virtual Keypad||Home Key, Function key, Numeric Keys.|
|Audio||Speaker||1 W x 1|
|USB||USB Standard||USB Type C 2.0|
|Other||Charge Battery, OTG support|
|Camera||REAR||8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video.|
|FRONT||2Mega Pixels, CMOS, JPEG picture, Video.|
|NFC||Standard||ISO14443 type A/B ( ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support )|
|IC card||Contactless Card||NFC 13.56 MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC 14443&7816|
|EMV card||Smart Card||EMV & PBOC Compliant|
|MSR||Magnetic Card||ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec.|
|Battery||Battery type||Li-ion polymer battery|
|Certification||ICC||EMV contact L1 / PBCO L1|
|EMV contact L2 / PBOC L2|
|NFC||EMV contactless L1 / qPBOC L1|
|EMV contactless L2 / qPBOC L2|
|Operating environment||Temperature||-5 to +50 °C|
|Relative humidity||10 % to 85 % RH|
|Storage environment||Temperature||-10 to +60 °C|
|Relative humidity||10 % to 90 % RH|
|Size and Weigt||Dimension and Weight||203mm*85mm*53mm, 480g with battery|
|Micro Printer||Printing method||Thermal-line dot method|
|Paper||Thermal roll paper (standard) 57*40 mm|
|Effective Printing area||48mm|
|Speed||Maximum 70mm/sec(480 dot line/sec)|
|Printing resolutions||8 dots/mm|
|Character||12*24dots and 24*48 dots|
|Number of columns||32columns/line|
|Printing head life||Pulse resistance:100 million pulses/dot (under our standard conditions);|
|Abrasion resistance: paper traveling distance 50km (print ratio:25% or less)|
1. Payment Terms: T/T LC, Western Union, Money Gram, Paypal, etc...
2. Sample Lead Time: 2-4days when there is stockand57ays for custom design or logo adding.
3. Mass Production Lead Time: 20-25days, and 30-35days for custom design.
4. Shipping Port: Shenzhen, China. We can manage shipment from the beginning to the end for you.
5.Door to door service: We have good channels by DHL/UPS/FEDEX/TNT as options for you.
1. All our products have one year guarantee from the shipping date
2. Under Guarantee: if any non-human damage happen, we’ll offer free pairing or replacement, including delivery cost
3. Out of guarantee: we offer repairing pats at lower cost, and service free in charge.
Our years experiences made us faster and better, our teams are truly specialized, from our purchasing department to our factory workers, everyone is key to our success. Our sales teams are composed of many nationalities, some from foreign markets with years of experience. This gives us the best communication skills in the industry. Our English and world market knowledge is another reason why choosing us makes only sense.
Wisecard (a WiseGroup company) is a global solution provider that has been providing innovative payment and secure solutions to financial institutions, government entities and telco operators worldwide.
Wisecard have been providing EMV smart card, EMV biometric card, EMV perso software, card issuance, EMV embossers, POS terminals, smart banking, smart teller machine, kiosk, vending machine, biometric POS, Hardware Secure Module, mobile payment platform, private label card solution, prepaid card solution, card management system to partners in more than 60 countries worldwide. Wisecard’s product suite empower large global financial institutions and government sectors as well as small to medium sized retail banks.
Wisecard solutions are adapting to the highest and latest secure standard, and the solutions have been fully tested and certified by international test labs, like FBI, STQC, EMV, PCI DSS, PA DSS, VISA, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay and etc.
Notes: FBI, STQC, EMV, PCIDSS, PADSS, Visa, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay is a registered trademark. All trademarks referenced here are the property of the respective owners.
