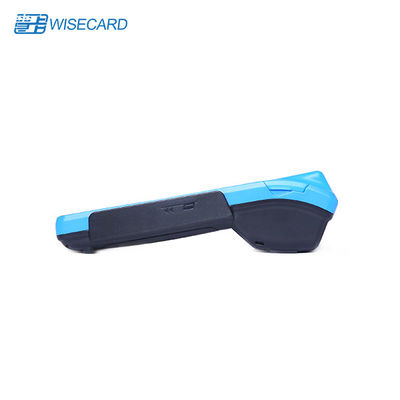

EMV 5.5 Inch Qr Code Billing Machine 720x1280 IPS With Printer

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : 1 pc per box, 10 pc per carton Delivery Time : 1-4 weeks
Payment Terms : T/T Supply Ability : 10000 Set/Sets per Month
Place of Origin: China Brand Name: Wisecard
Certification: PCI CE Rohs Model Number: T90FO

Detail Information

Screen: 5.5 Inch Touch Screen Battery: 7.4V5800mAh
Front Camera: 2M Pixel Color: Can Be Customized
REAR Camera: 8Mega Pixels, CMOS, AF, QR/2D Barcode, JPEG Picture, Video. LCD Pixels: 720*1280 IPS
Touch Panel: G+F+F, Capacitive Color Touch,Multi Touch, Signature Capable, Video Capable Processor: MTK MT8735 ( 4-Core ARM Cortex-A53,1.3GHz )
OS: Android 7.0 Security Payment OS
High Light:

EMV Qr Code Billing Machine

,

5.5 Inch Qr Code Billing Machine

,

720x1280 IPS Android Pos Terminal

Product Description

5.8 Inch Mobile Handheld Mini Qr Code Billing Machine Android Pos Terminal With Printer



★ Android 7.0 OS and Quad-Core

The performance of WCT-T90 is higher than the general level on the market since it's powered by Android 7.0 system (also called Android Oreo) and a Quad-Core processor with 1GB DDR+8GB memory or 2GB + 16GB.

★ Smart Payments All In One Machine

WCT-T90 supports reading Contact Card, NFC card, IC card, QR-code, Dual interface card, magnetic card. So it can serve for contact and contactless payment, QR-code Payment, smart card payment. Support ISO14443 Type A/B, ISO/IEC 14443&7816, ISO18092 compliant.

★ High-speed Printer

The thermal Printer ensures clear readability 58mm printing with printing speed increased by 10%.



WCT-T90FO Android POS Configuration:
Type Product Spec
Platform Processor MTK MT8735 (4-Core ARM Cortex-A53,1.3GHz)
RAM 1GB / 2GB LPDDR3
FLASH 8GB / 16GB EMMC, TF Card Supported
OS Android 7.0 Security Payment OS
Security Processor MAXIM MAX32555 (Deep-Cover Secure microcontroller)
Wireless Wireless Standard LTE-FDD/TDD-LTE/TDS-CDMA/WCDMA/CDMA2000/EDGE/GPRS
4G LTE-FDD: B1/B3/B8 (TBD)
TDD-LTE: B38/B39/B40/B41
3G UMTS/HSPA/HSPA+/DC-HSPA+: B1/B8
TDS-CDM: B34/B39
EVDO: BC0
2G EDGE/GPRS: B3/B8
WLAN 2.4GHz ISM 2402MHz~2482MHz
BT 4.1 LE 2.4GHz ISM 2402MHz~2480MHz
USIM Card Slots 4 PSAM slots, 2 SIM slots
GPS GPS GPS, GLONASS
LCD and Touch Panel LCD Pixels 720*1280 IPS
LCD 5.5 inch
Touch Panel G+F+F, Capacitive Color Touch, Multi Touch, signature capable, video capable
Keypad Physical key Power ON/OFF, Volume up, Volume down.
Virtual Keypad Home Key, Function key, Numeric Keys.
Audio Speaker 1 W x 1
Microphone Voice input
USB USB Standard USB Type C 2.0
Other Charge Battery, OTG support
Camera REAR 8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video.
FRONT 2Mega Pixels, CMOS, JPEG picture, Video.
NFC Standard ISO14443 type A/B (ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support)
Spectrum 13.56MHz
IC card Contactless Card NFC 13.56 MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC 14443&7816
EMV card Smart Card EMV & PBOC Compliant
MSR Magnetic Card ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec.
Battery Battery type Li-ion polymer battery
Capacity 3.7V, 5800mAh
Charger 5V/2A
Certification ICC EMV contact L1 / PBCO L1
EMV contact L2 / PBOC L2
NFC EMV contactless L1 / qPBOC L1
EMV contactless L2 / qPBOC L2
Security PCI 5.0
UPTS 2.0
Operating environment Temperature -5 to +50 °C
Relative humidity 10 % to 85 % RH
Storage environment Temperature -10 to +60 °C
Relative humidity 10 % to 90 % RH
Size and Weigt Dimension and Weight 210mm*85mm*53mm, 480g with battery
Micro Printer Printing method Thermal-line dot method
Paper Thermal roll paper (standard) 57*40 mm
Effective Printing area 48mm
Speed Maximum 70mm/sec(480 dot line/sec)
Printing resolutions 8 dots/mm
Character 12*24dots and 24*48 dots
Number of columns 32columns/line
Printing head life Pulse resistance:100 million pulses/dot (under our standard conditions);

Abrasion resistance: paper traveling distance 50km (print ratio:25% or less)





Quick Detail:

  • More than 9 years manufacturing experiences and products applied /placed more than 180 countries
  • Upgradable functions available
  • Flexible Modification to fit customers requirements
  • In-door or out-door optional



FAQ

Q: Accept Sample?
A: Sample is available. We always supply sample to our clients for testing.



Q: Can you accept customized order?
A: Welcome, We have our own hardware factory and component engineer. Please send your own design and logo, we could make it as your idea/design.



Q: How is the quality?
A: We have very strict quality controlling which promises the goods we produced are always of the best quality.



Q: How long is your guarantee period ?
A: 1 year warranty, full responsibility for warranty. We are very confident in our products, if any issue, we will deal with it immediately.



Q: How is the Service?
A: We (wisecard tech) have global after-sales service network.




EMV 5.5 Inch Qr Code Billing Machine 720x1280 IPS With Printer 0EMV 5.5 Inch Qr Code Billing Machine 720x1280 IPS With Printer 1EMV 5.5 Inch Qr Code Billing Machine 720x1280 IPS With Printer 2



Company Information:

Wisecard (a WiseGroup company) is a global solution provider that has been providing innovative payment and secure solutions to financial institutions, government entities and telco operators worldwide.



Wisecard have been providing EMV smart card, EMV biometric card, EMV perso software, card issuance, EMV embossers, POS terminals, smart banking, smart teller machine, kiosk, vending machine, biometric POS, Hardware Secure Module, mobile payment platform, private label card solution, prepaid card solution, card management system to partners in more than 60 countries worldwide. Wisecard’s product suite empower large global financial institutions and government sectors as well as small to medium sized retail banks.



Wisecard solutions are adapting to the highest and latest secure standard, and the solutions have been fully tested and certified by international test labs, like FBI, STQC, EMV, PCI DSS, PA DSS, VISA, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay and etc.



Notes: FBI, STQC, EMV, PCIDSS, PADSS, Visa, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay is a registered trademark. All trademarks referenced here are the property of the respective owners.

EMV 5.5 Inch Qr Code Billing Machine 720x1280 IPS With Printer 3
