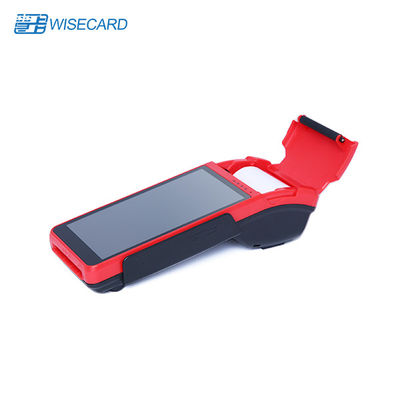

Handheld 4 PSAM Android POS Terminal 5M Pixel Capacitive Touch PBOC

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : 1 pc per box, 10 pc per carton Delivery Time : 1-4 weeks
Payment Terms : T/T Supply Ability : 10000 Set/Sets per Month
Place of Origin: China Brand Name: Wisecard
Certification: PCI CE Rohs Model Number: S8

Detail Information

Processor: 4 Core ARM Cortex-A53 OS: Android 7 Or Above
4G:: LTE-FDD: B1/B3/B8 (TBD)TDD-LTE: B38/B39/B40/B41 Screen: 5.5 Inch Touch Screen
Printer: Thermal Printer Inbedded Camera: 5M Pixel
CardReader: Contactless, Contact, Magstripe WLAN:: 2.4GHz ISM 2402MHz~2482MHz
High Light:

4 PSAM Android POS Terminal

,

Android POS Terminal 5M Pixel

,

PBOC Cash Register Machine

Product Description

Handheld Point Of Sale Android POS Systems Software Cash Register Machine Terminal Capacitive Touch Screen



★ 5800mAH Large Battery Super Endurance

WCT-S8 comes with a massive 5800mAh battery. This means that you can operate it much longer and that you need to charge it only occasionally.

★ Multiple card slots, 4 PSAM and 2 SIM Slots

Multiple card slots for PSAM and SIM cards brings more options for security and connection.

★ Elastic Wrist Strap

Considering the need to move frequently, the elastic wrist strap design of the TPS320 can hold the product steadily and prevents falls.

★ More Options

Optional functions adapt to your actual needs, such as Fingerprint Reader, IC Card Reader, Charging Base, Fiscal Memory, and other accessories, etc.

★ Applications

WCT-S8 POS Machine can be used for payment in quite scenarios: Retail Stores; Mobile Charges; Retail Management; Parking Charges Supermarket; Utilities; Lotteries.





Trade conditions

1. Payment Terms: T/T LC, Western Union, Money Gram, Paypal, etc...

2. Sample Lead Time: 2-4days when there is stockand57ays for custom design or logo adding.

3. Mass Production Lead Time: 20-25days, and 30-35days for custom design.

4. Shipping Port: Shenzhen, China. We can manage shipment from the beginning to the end for you.

5.Door to door service: We have good channels by DHL/UPS/FEDEX/TNT as options for you.



WCT-S8 Android POS Configuration
Type Product Spec
Platform Processor MTK MT8735 ( 4-Core ARM Cortex-A53,1.3GHz )
RAM 1GB / 2GB LPDDR3
FLASH 8GB / 16GB EMMC
OS Android 7.0 Security Payment OS
Security Processor MAXIM MAX32555 (DeepCover Secure microcontroller)
Wireless Wireless Standard LTE-FDD/TDD-LTE/TDS-CDMA/WCDMA/CDMA2000/EDGE/GPRS
4G LTE-FDD : B1/B3/B8 (TBD)
TDD-LTE : B38/B39/B40/B41
3G UMTS/HSPA/HSPA+/DC-HSPA+ : B1/B8
TDS-CDMA : B34/B39
EVDO : BC0
2G EDGE/GPRS : B3/B8
WLAN 2.4GHz ISM 2402MHz~2482MHz
BT 4.1 LE 2.4GHz ISM 2402MHz~2480MHz
USIM Card Slots 4 PSAM slots, 2 SIM slots
GPS GPS GPS, GLONASS
LCD and Touch Panel LCD Pixels 720*1280 IPS
LCD 5.5 inch
Touch Panel G+F+F, Capacitive Color Touch,Multi Touch, signature capable, video capable
Keypad Physical key Power ON/OFF, Volumn up, Volumn down.
Virtual Keypad Home Key, Function key, Numeric Keys.
Audio Speaker 1 W x 1
Microphone Voice input
USB USB Standard USB Type C 2.0
Other Charge Battery, OTG support
Camera REAR 8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video.
FRONT 2Mega Pixels, CMOS, JPEG picture, Video.
NFC Standard ISO14443 type A/B ( ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support )
Spectrum 13.56MHz
IC card Contactless Card NFC 13.56 MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC 14443&7816
EMV card Smart Card EMV & PBOC Compliant
MSR Magnetic Card ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec.
Battery Battery type Li-ion polymer battery
Capacity 3.7V, 5800mAh
Charger 5V/2A
Certification ICC EMV contact L1 / PBCO L1
EMV contact L2 / PBOC L2
NFC EMV contactless L1 / qPBOC L1
EMV contactless L2 / qPBOC L2
Security PCI 5.0
UPTS 2.0
Operating environment Temperature -5 to +50 °C
Relative humidity 10 % to 85 % RH
Storage environment Temperature -10 to +60 °C
Relative humidity 10 % to 90 % RH
Size and Weigt Dimension and Weight 203mm*85mm*53mm, 480g with battery
Micro Printer Printing method Thermal-line dot method
Paper Thermal roll paper (standard) 57*40 mm
Effective Printing area 48mm
Speed Maximum 70mm/sec(480 dot line/sec)
Printing resolutions 8 dots/mm
Character 12*24dots and 24*48 dots
Number of columns 32columns/line
Printing head life Pulse resistance:100 million pulses/dot (under our standard conditions);
Abrasion resistance: paper traveling distance 50km (print ratio:25% or less)





Why Choose Us

1. We have our own production factory help us make sure of our delivery times and product quality. Over 10 years of experience gives us the edge!



2. Our professional technical team can quickly provide pre-sales and after-sales service. and we have full experience in construction, our engineer team is integration of theory and practice.



3. We currently provide OEM/ODM services for many customers worldwide. We have full design experience for indoor and outdoor display.



4.Many of our current products are available in a very fast manner in order for you to test and approve of our strong quality of goods. Don’t be fooled by some factories that will offer the best products below the market price, you pay for what you get is the safe way to look at your over sea’s purchases.



5. As part of our multiple services, we can offer 1 year warranty on all our products. Secure yourself and ask us about our extended warranty programs.



Handheld 4 PSAM Android POS Terminal 5M Pixel Capacitive Touch PBOC 0Handheld 4 PSAM Android POS Terminal 5M Pixel Capacitive Touch PBOC 1
