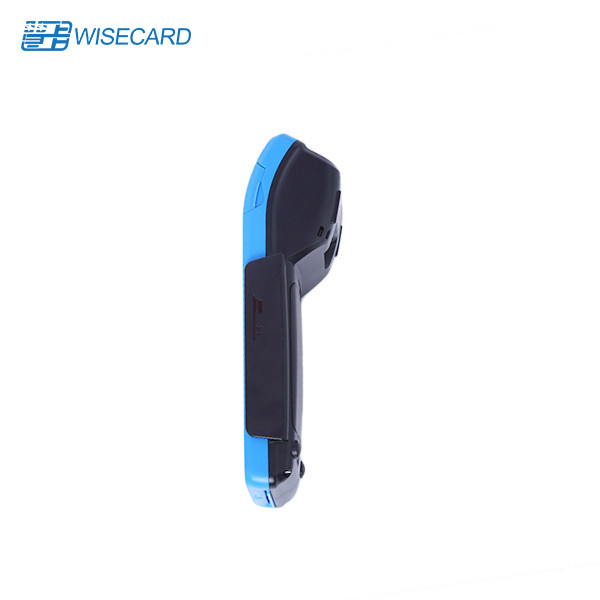

WCT-T80 Handheld Android POS Terminal 4G NFC MT8766 Mobile System
Contact Person : Steven Yao
Phone Number : +86-13424312532
WhatsApp : +8613424312532
Minimum Order Quantity : | Negotiable | Price : | Negotiable |
---|---|---|---|
Packaging Details : | packing details: standard export carton, can be customized. port: Shen Zhen ports | Delivery Time : | 1-4 weeks |
Payment Terms : | T/T | Supply Ability : | 10000 Set/Sets per Month |
Place of Origin: | China | Brand Name: | Wisecard |
---|---|---|---|
Certification: | PCI CE Rohs | Model Number: | S8 |
Detail Information |
|||
Processor: | 4 Core ARM Cortex-A53 | Screen: | 5.5 Inch Touch Screen |
---|---|---|---|
Battery: | 7.4V5800mAh | Virtual Keypad: | Home Key, Function Key, Numeric Keys. |
Camera: | 5M Pixel | Security: | PCI 5.0 UPTS 2.0 |
CardReader: | Contactless, Contact, Magstripe | Battery Type: | Li-ion Polymer Battery |
High Light: | 5M Pixel Financial POS Terminal,Polymer Battery Financial POS Terminal,58mm Printer Handheld Pos Terminal |
Product Description
★ Android 7.0 OS and Quad-Core
The performance of WCT-S8 is higher than the general level on the market since it's powered by Android 7.0 system (also called Android Oreo) and a Quad-Core processor with 1GB DDR+8GB memory or 2GB + 16GB.
★ Smart Payments All In One Machine
WCT-S8 supports reading Contact Card, NFC card, IC card, QR-code, Dual interface card, magnetic card. So it can serve for contact and contactless payment, QR-code Payment, smart card payment. Support ISO14443 Type A/B, ISO/IEC 14443&7816, ISO18092 compliant.
★ High-speed Printer
The thermal Printer ensures clear readability 58mm printing with printing speed increased by 10%.
★ 5800mAH Large Battery Super Endurance
WCT-S8 comes with a massive 5800mAh battery. This means that you can operate it much longer and that you need to charge it only occasionally.
★ Multiple card slots, 4 PSAM and 2 SIM Slots
Multiple card slots for PSAM and SIM cards brings more options for security and connection.
★ Elastic Wrist Strap
Considering the need to move frequently, the elastic wrist strap design of the TPS320 can hold the product steadily and prevents falls.
★ More Options
Optional functions adapt to your actual needs, such as Fingerprint Reader, IC Card Reader, Charging Base, Fiscal Memory, and other accessories, etc.
WCT-S8 Android POS Configuration | ||
Type | Product Spec | |
Platform | Processor | MTK MT8735 ( 4-Core ARM Cortex-A53,1.3GHz ) |
RAM | 1GB / 2GB LPDDR3 | |
FLASH | 8GB / 16GB EMMC | |
OS | Android 7.0 Security Payment OS | |
Security Processor | MAXIM MAX32555 (DeepCover Secure microcontroller) | |
Wireless | Wireless Standard | LTE-FDD/TDD-LTE/TDS-CDMA/WCDMA/CDMA2000/EDGE/GPRS |
4G | LTE-FDD : B1/B3/B8 (TBD) | |
TDD-LTE : B38/B39/B40/B41 | ||
3G | UMTS/HSPA/HSPA+/DC-HSPA+ : B1/B8 | |
TDS-CDMA : B34/B39 | ||
EVDO : BC0 | ||
2G | EDGE/GPRS : B3/B8 | |
WLAN | 2.4GHz ISM 2402MHz~2482MHz | |
BT 4.1 LE | 2.4GHz ISM 2402MHz~2480MHz | |
USIM | Card Slots | 4 PSAM slots, 2 SIM slots |
GPS | GPS | GPS, GLONASS |
LCD and Touch Panel | LCD Pixels | 720*1280 IPS |
LCD | 5.5 inch | |
Touch Panel | G+F+F, Capacitive Color Touch,Multi Touch, signature capable, video capable | |
Keypad | Physical key | Power ON/OFF, Volumn up, Volumn down. |
Virtual Keypad | Home Key, Function key, Numeric Keys. | |
Audio | Speaker | 1 W x 1 |
Microphone | Voice input | |
USB | USB Standard | USB Type C 2.0 |
Other | Charge Battery, OTG support | |
Camera | REAR | 8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video. |
FRONT | 2Mega Pixels, CMOS, JPEG picture, Video. | |
NFC | Standard | ISO14443 type A/B ( ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support ) |
Spectrum | 13.56MHz | |
IC card | Contactless Card | NFC 13.56 MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC 14443&7816 |
EMV card | Smart Card | EMV & PBOC Compliant |
MSR | Magnetic Card | ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec. |
Battery | Battery type | Li-ion polymer battery |
Capacity | 3.7V, 5800mAh | |
Charger | 5V/2A | |
Certification | ICC | EMV contact L1 / PBCO L1 |
EMV contact L2 / PBOC L2 | ||
NFC | EMV contactless L1 / qPBOC L1 | |
EMV contactless L2 / qPBOC L2 | ||
Security | PCI 5.0 | |
UPTS 2.0 | ||
Operating environment | Temperature | -5 to +50 °C |
Relative humidity | 10 % to 85 % RH | |
Storage environment | Temperature | -10 to +60 °C |
Relative humidity | 10 % to 90 % RH | |
Size and Weigt | Dimension and Weight | 203mm*85mm*53mm, 480g with battery |
Micro Printer | Printing method | Thermal-line dot method |
Paper | Thermal roll paper (standard) 57*40 mm | |
Effective Printing area | 48mm | |
Speed | Maximum 70mm/sec(480 dot line/sec) | |
Printing resolutions | 8 dots/mm | |
Character | 12*24dots and 24*48 dots | |
Number of columns | 32columns/line | |
Printing head life | Pulse resistance:100 million pulses/dot (under our standard conditions); | |
Abrasion resistance: paper traveling distance 50km (print ratio:25% or less) |
1. Do you have the products in stock?
Yes, most of the items are in stock. The goods will be shipped to you within 2-3 business days after payment received. For the
products out of stock, it will take around 5-7 working days to make shipment.
2. Do you supply other POS related items?
Yes, wisecard is your 1 stop solution for Point of Sale System(Touch POS Terminal, Touch Screen Monitor, Thermal Receipt Printer,
Laser Barcode Scanner, Magnetic Card Reader, Customer Pole Display, other POS peripherals). We offer a professional service, and
custom design your Touch Screen POS System according to your requirements and budget.
3. How do I know if you ship out my order?
The tracking number (DHL, UPS, FedEx, TNT, EMS, etc.) or Air Waybill or Bill of Loading B/L by Sea will be sent to you as soon as
your goods are shipped out, we also follow up the delivery and keep you informed. The helpful after service is provided - We
support what we sell.
4. How much support do I get?
When you become a wisecard customer, you get unlimited phone, Remote support by trained staff for any type of assistance,
consultation, or training. There is no any “per call” charge for support. We guarantee, We are responsible, and We stand behind
our products.
5. What’s your production capacity of POS system each month?
our POS production capacity is about 5000pcs per month.
6. How about your delivery time and payment term?
We will deliver goods within 5-15 working days after receipt of your payment. QTY Transportation Delivery time Payment < 100pcs
DHL 7 days 100% full payment by T/T
7. How about delivery time of sample order or trial order?
we can deliver 2 pcs of POS sample within 5 working days after receipt of your payment. Once you confirm the POS model you need,
we will draw a sample order on Alibaba and then you pay it through Alibaba platform.
Company Information:
Wisecard (a WiseGroup company) is a global solution provider that has been providing innovative payment and secure solutions to financial institutions, government entities and telco operators worldwide.
Wisecard have been providing EMV smart card, EMV biometric card, EMV perso software, card issuance, EMV embossers, POS terminals, smart banking, smart teller machine, kiosk, vending machine, biometric POS, Hardware Secure Module, mobile payment platform, private label card solution, prepaid card solution, card management system to partners in more than 60 countries worldwide. Wisecard’s product suite empower large global financial institutions and government sectors as well as small to medium sized retail banks.
Wisecard solutions are adapting to the highest and latest secure standard, and the solutions have been fully tested and certified by international test labs, like FBI, STQC, EMV, PCI DSS, PA DSS, VISA, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay and etc.
Notes: FBI, STQC, EMV, PCIDSS, PADSS, Visa, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay is a registered trademark. All trademarks referenced here are the property of the respective owners.
