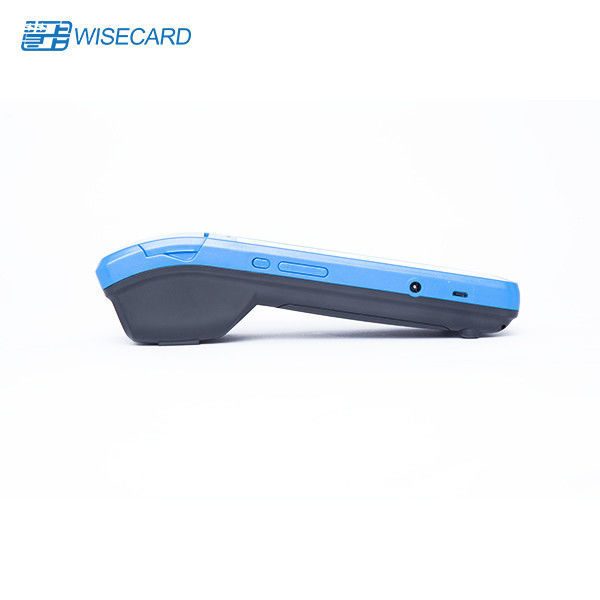

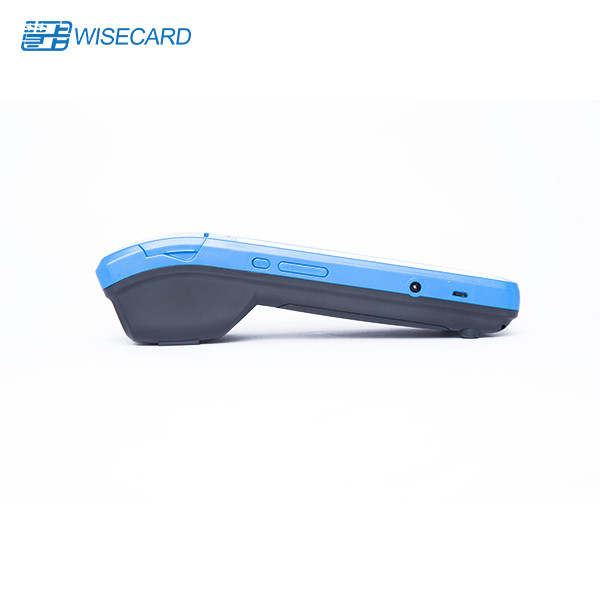

TDD LTE Smart POS Terminal MTK MT8735 PBOC For QR Code Payment

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : 1 pc per box, 10 pc per carton Delivery Time : 1-4 weeks
Payment Terms : T/T Supply Ability : 10000 Set/Sets per Month
Place of Origin: China Brand Name: Wisecard
Certification: PCI CE Rohs Model Number: S8

Detail Information

Processor: 4 Core ARM Cortex-A53 OS: Android 7.0 Security Payment OS Or Above
FingerPrint: Optional Screen: 5.5 Inch Touch Screen
Printer: Thermal Printer Inbedded Printing Paper: Thermal Roll Paper (standard) 57*40 Mm
Communication: 2G / 3G / 4G /wifi, Bluetooth Dimension And Weight: 203mm*85mm*53mm, 480g With Battery
High Light:

TDD LTE Smart POS Terminal

,

Smart POS Terminal MTK MT8735

,

PBOC Android POS Machine

Product Description

POS Machine Android Smart POS Terminal For Contact, Contactless And QR Code Payment



S8 is a highly secure portable terminal with dedicated secure element which is developed targeting for loT and payment industry. S8 is powered with Android operating system, which enables super-fast processing of multiple applications. With fully range of connectivity options. S8 is capable to meeting various purposes for the transactions and with delicate touch display to maximize the customer experience.





MTK MT8735 Smart POS Terminal  WCT-S8 Android POS Configuration
Type Product Spec
Platform Processor MTK MT8735 ( 4-Core ARM Cortex-A53,1.3GHz )
RAM 1GB / 2GB LPDDR3
FLASH 8GB / 16GB EMMC
OS Android 7.0 Security Payment OS
Security Processor MAXIM MAX32555 (DeepCover Secure microcontroller)
Wireless Wireless Standard LTE-FDD/TDD-LTE/TDS-CDMA/WCDMA/CDMA2000/EDGE/GPRS
4G LTE-FDD : B1/B3/B8 (TBD)
TDD-LTE : B38/B39/B40/B41
3G UMTS/HSPA/HSPA+/DC-HSPA+ : B1/B8
TDS-CDMA : B34/B39
EVDO : BC0
2G EDGE/GPRS : B3/B8
WLAN 2.4GHz ISM 2402MHz~2482MHz
BT 4.1 LE 2.4GHz ISM 2402MHz~2480MHz
USIM Card Slots 4 PSAM slots, 2 SIM slots
GPS GPS GPS, GLONASS
LCD and Touch Panel LCD Pixels 720*1280 IPS
LCD 5.5 inch
Touch Panel G+F+F, Capacitive Color Touch,Multi Touch, signature capable, video capable
Keypad Physical key Power ON/OFF, Volumn up, Volumn down.
Virtual Keypad Home Key, Function key, Numeric Keys.
Audio Speaker 1 W x 1
Microphone Voice input
USB USB Standard USB Type C 2.0
Other Charge Battery, OTG support
Camera REAR 8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video.
FRONT 2Mega Pixels, CMOS, JPEG picture, Video.
NFC Standard ISO14443 type A/B ( ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support )
Spectrum 13.56MHz
IC card Contactless Card NFC 13.56 MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC 14443&7816
EMV card Smart Card EMV & PBOC Compliant
MSR Magnetic Card ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec.
Battery Battery type Li-ion polymer battery
Capacity 3.7V, 5800mAh
Charger 5V/2A
Certification ICC EMV contact L1 / PBCO L1
EMV contact L2 / PBOC L2
NFC EMV contactless L1 / qPBOC L1
EMV contactless L2 / qPBOC L2
Security PCI 5.0
UPTS 2.0
Operating environment Temperature -5 to +50 °C
Relative humidity 10 % to 85 % RH
Storage environment Temperature -10 to +60 °C
Relative humidity 10 % to 90 % RH
Size and Weigt Dimension and Weight 203mm*85mm*53mm, 480g with battery
Micro Printer Printing method Thermal-line dot method
Paper Thermal roll paper (standard) 57*40 mm
Effective Printing area 48mm
Speed Maximum 70mm/sec(480 dot line/sec)
Printing resolutions 8 dots/mm
Character 12*24dots and 24*48 dots
Number of columns 32columns/line
Printing head life Pulse resistance:100 million pulses/dot (under our standard conditions);
Abrasion resistance: paper traveling distance 50km (print ratio:25% or less)





FAQ:

1. About Price:

The price is negotiable. It can be changed according to your quantity or package. When you are making an inquiry, please let us know the quantity you want.



2. About Sample:

Sample is Free, but the air freight is collected or you pay us the cost in advance.



3. About language and operation system:

Our printers support 48 different languages include English, Russian, Spanish and so on. It backups IOS, Android, Windows, Linux, Oppos operation systems.



4. About warranty:

Each printer will have one year (12 months) warranty. Free components will be offered for repair in warranty period, if the issue caused by non-artificial damages.





TDD LTE Smart POS Terminal MTK MT8735 PBOC  For QR Code Payment 0TDD LTE Smart POS Terminal MTK MT8735 PBOC  For QR Code Payment 1TDD LTE Smart POS Terminal MTK MT8735 PBOC  For QR Code Payment 2TDD LTE Smart POS Terminal MTK MT8735 PBOC  For QR Code Payment 3



Company Information:

Wisecard (a WiseGroup company) is a global solution provider that has been providing innovative payment and secure solutions to financial institutions, government entities and telco operators worldwide.



Wisecard have been providing EMV smart card, EMV biometric card, EMV perso software, card issuance, EMV embossers, POS terminals, smart banking, smart teller machine, kiosk, vending machine, biometric POS, Hardware Secure Module, mobile payment platform, private label card solution, prepaid card solution, card management system to partners in more than 60 countries worldwide. Wisecard’s product suite empower large global financial institutions and government sectors as well as small to medium sized retail banks.



Wisecard solutions are adapting to the highest and latest secure standard, and the solutions have been fully tested and certified by international test labs, like FBI, STQC, EMV, PCI DSS, PA DSS, VISA, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay and etc.



Notes: FBI, STQC, EMV, PCIDSS, PADSS, Visa, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay is a registered trademark. All trademarks referenced here are the property of the respective owners.
