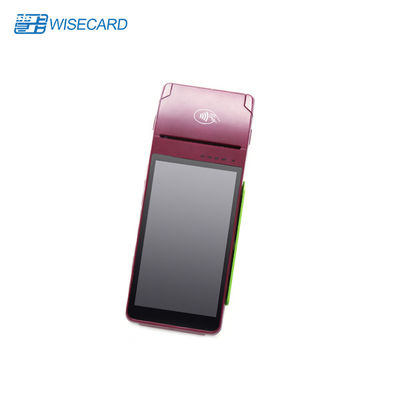

EMV 3G 4G WIFI Touchable Handheld POS Terminal NFC 13.56MHz

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : 1 pc per box, 10 pc per carton Delivery Time : 1-4 weeks
Payment Terms : T/T Supply Ability : 10000 Set/Sets per Month
Place of Origin: China Brand Name: Wisecard
Certification: PCI CE Rohs Model Number: S8

Detail Information

OS: Android 7 Or Above Security Processor: MAXIM MAX32555 (DeepCover Secure Microcontroller)
Battery: 7.4V5800mAh Battery Type: Li-ion Polymer Battery
Dimension And Weight: 203mm*85mm*53mm, 480g With Battery Communication: 2G / 3G / 4G /wifi, Bluetooth
Contactless Card: NFC 13.56MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC 14443&7816 Color: Red And Green
High Light:

WIFI Touchable Handheld POS Terminal

,

EMV Handheld POS Terminal

,

NFC 13.56MHz Android POS Terminal

Product Description

Android 3G 4G WIFI Touchable Handheld POS Terminal With Customized Colors



★ Android 7.0 OS and Quad-Core
The performance of WCT-S8 is higher than the general level on the market since it's powered by Android 7.0 system (also called Android Oreo) and a Quad-Core processor with 1GB DDR+8GB memory or 2GB + 16GB.







WCT-S8 Android POS Configuration
Type Product Spec
Platform Processor MTK MT8735 ( 4-Core ARM Cortex-A53,1.3GHz )
RAM 1GB / 2GB LPDDR3
FLASH 8GB / 16GB EMMC
OS Android 7.0 Security Payment OS
Security Processor MAXIM MAX32555 (DeepCover Secure microcontroller)
Wireless Wireless Standard LTE-FDD/TDD-LTE/TDS-CDMA/WCDMA/CDMA2000/EDGE/GPRS
4G LTE-FDD : B1/B3/B8 (TBD)
TDD-LTE : B38/B39/B40/B41
3G UMTS/HSPA/HSPA+/DC-HSPA+ : B1/B8
TDS-CDMA : B34/B39
EVDO : BC0
2G EDGE/GPRS : B3/B8
WLAN 2.4GHz ISM 2402MHz~2482MHz
BT 4.1 LE 2.4GHz ISM 2402MHz~2480MHz
USIM Card Slots 4 PSAM slots, 2 SIM slots
GPS GPS GPS, GLONASS
LCD and Touch Panel LCD Pixels 720*1280 IPS
LCD 5.5 inch
Touch Panel G+F+F, Capacitive Color Touch,Multi Touch, signature capable, video capable
Keypad Physical key Power ON/OFF, Volumn up, Volumn down.
Virtual Keypad Home Key, Function key, Numeric Keys.
Audio Speaker 1 W x 1
Microphone Voice input
USB USB Standard USB Type C 2.0
Other Charge Battery, OTG support
Camera REAR 8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video.
FRONT 2Mega Pixels, CMOS, JPEG picture, Video.
NFC Standard ISO14443 type A/B ( ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support )
Spectrum 13.56MHz
IC card Contactless Card NFC 13.56 MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC 14443&7816
EMV card Smart Card EMV & PBOC Compliant
MSR Magnetic Card ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec.
Battery Battery type Li-ion polymer battery
Capacity 3.7V, 5800mAh
Charger 5V/2A
Certification ICC EMV contact L1 / PBCO L1
EMV contact L2 / PBOC L2
NFC EMV contactless L1 / qPBOC L1
EMV contactless L2 / qPBOC L2
Security PCI 5.0
UPTS 2.0
Operating environment Temperature -5 to +50 °C
Relative humidity 10 % to 85 % RH
Storage environment Temperature -10 to +60 °C
Relative humidity 10 % to 90 % RH
Size and Weigt Dimension and Weight 203mm*85mm*53mm, 480g with battery
Micro Printer Printing method Thermal-line dot method
Paper Thermal roll paper (standard) 57*40 mm
Effective Printing area 48mm
Speed Maximum 70mm/sec(480 dot line/sec)
Printing resolutions 8 dots/mm
Character 12*24dots and 24*48 dots
Number of columns 32columns/line
Printing head life Pulse resistance:100 million pulses/dot (under our standard conditions);
Abrasion resistance: paper traveling distance 50km (print ratio:25% or less)



FAQ:

1. Do you have the products in stock?

Yes, most of the items are in stock. The goods will be shipped to you within 2-3 business days after payment received. For the

products out of stock, it will take around 5-7 working days to make shipment.



2. Do you supply other POS related items?

Yes, wisecard is your 1 stop solution for Point of Sale System(Touch POS Terminal, Touch Screen Monitor, Thermal Receipt Printer,

Laser Barcode Scanner, Magnetic Card Reader, Customer Pole Display, other POS peripherals). We offer a professional service, and

custom design your Touch Screen POS System according to your requirements and budget.



3. How do I know if you ship out my order?

The tracking number (DHL, UPS, FedEx, TNT, EMS, etc.) or Air Waybill or Bill of Loading B/L by Sea will be sent to you as soon as

your goods are shipped out, we also follow up the delivery and keep you informed. The helpful after service is provided - We

support what we sell.



4. How much support do I get?

When you become a wisecard customer, you get unlimited phone, Remote support by trained staff for any type of assistance,

consultation, or training. There is no any “per call” charge for support. We guarantee, We are responsible, and We stand behind

our products.



5. What’s your production capacity of POS system each month?

our POS production capacity is about 5000pcs per month.
