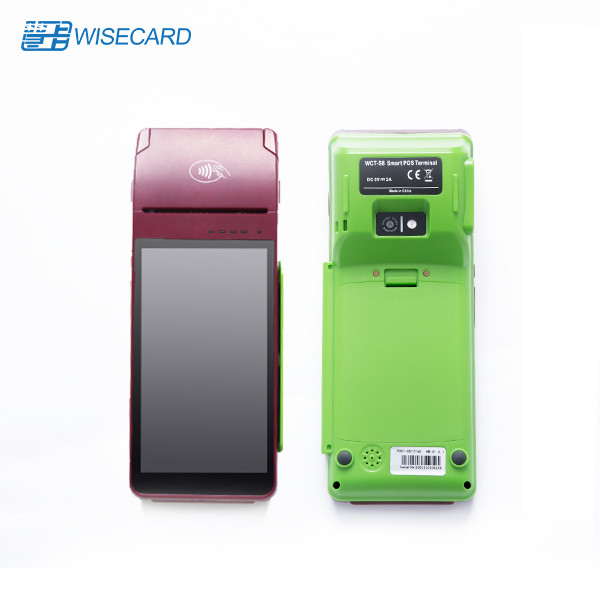

TDCDMA Scarlett Green Smart Pos Terminal PCI With Touch Screen

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : 1 pc per box, 10 pc per carton Delivery Time : 1-4 weeks
Payment Terms : T/T Supply Ability : 10000 Set/Sets per Month
Place of Origin: China Brand Name: Wisecard
Certification: PCI CE Rohs Model Number: S8FC

Detail Information

Processor: 4 Core ARM Cortex-A53 OS: Android 7 Or Above
Wireless Standard: LTE-FDD/TDD-LTE/TDCDMA/WCDMA/CDMA2000/EDGE/GPRS Screen: 5.5 Inch Touch Screen
Battery: 7.4V5800mAh Physical Key: Power ON/OFF, Volumn Up, Volumn Down.
Communication: 2G / 3G / 4G /wifi, Bluetooth Microphone: Voice Input
High Light:

Scarlett Green Smart Pos Terminal

,

TDCDMA Smart Pos Terminal

,

PCI Touch Screen POS Terminal

Product Description

Scarlet Green Color Smart Pos Terminal With Touch Screen Optional Fingerprinter



Features:

1. Creative Original Design.
2. Arc design with shell process that conforms to ergonomics, easier to hold with one hand, more modern & more fashionable.
3. 5.5 inch capacitive screen, less than 1kg, mainstream size of market mobile devices.
4. With built-in 58mm thermal printer, 70mm/s printing speed, 50km print head span, About 5000 times continuous flip.
5. Built-in battery 5800mAh. work continuously for 25 hours, dark screen standby time of above 18 days, 5500 order printing jobs.
6. 1G RAM+8G (2G+16G) Flash can support 3G, 4G, WiFi, Bluetooth, NFC.
7. 1D bar-code or 2D QR Code quick reading.

8. FBI certified Fingerprint reader.





WCT-S8 Android POS Configuration
Type Product Spec
Platform Processor MTK MT8735 ( 4-Core ARM Cortex-A53,1.3GHz )
RAM 1GB / 2GB LPDDR3
FLASH 8GB / 16GB EMMC
OS Android 7.0 Security Payment OS
Security Processor MAXIM MAX32555 (DeepCover Secure microcontroller)
Wireless Wireless Standard LTE-FDD/TDD-LTE/TDS-CDMA/WCDMA/CDMA2000/EDGE/GPRS
4G LTE-FDD : B1/B3/B8 (TBD)
TDD-LTE : B38/B39/B40/B41
3G UMTS/HSPA/HSPA+/DC-HSPA+ : B1/B8
TDS-CDMA : B34/B39
EVDO : BC0
2G EDGE/GPRS : B3/B8
WLAN 2.4GHz ISM 2402MHz~2482MHz
BT 4.1 LE 2.4GHz ISM 2402MHz~2480MHz
USIM Card Slots 4 PSAM slots, 2 SIM slots
GPS GPS GPS, GLONASS
LCD and Touch Panel LCD Pixels 720*1280 IPS
LCD 5.5 inch
Touch Panel G+F+F, Capacitive Color Touch,Multi Touch, signature capable, video capable
Keypad Physical key Power ON/OFF, Volumn up, Volumn down.
Virtual Keypad Home Key, Function key, Numeric Keys.
Audio Speaker 1 W x 1
Microphone Voice input
USB USB Standard USB Type C 2.0
Other Charge Battery, OTG support
Camera REAR 8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video.
FRONT 2Mega Pixels, CMOS, JPEG picture, Video.
NFC Standard ISO14443 type A/B ( ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support )
Spectrum 13.56MHz
IC card Contactless Card NFC 13.56 MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC 14443&7816
EMV card Smart Card EMV & PBOC Compliant
MSR Magnetic Card ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec.
Battery Battery type Li-ion polymer battery
Capacity 3.7V, 5800mAh
Charger 5V/2A
Certification ICC EMV contact L1 / PBCO L1
EMV contact L2 / PBOC L2
NFC EMV contactless L1 / qPBOC L1
EMV contactless L2 / qPBOC L2
Security PCI 5.0
UPTS 2.0
Operating environment Temperature -5 to +50 °C
Relative humidity 10 % to 85 % RH
Storage environment Temperature -10 to +60 °C
Relative humidity 10 % to 90 % RH
Size and Weigt Dimension and Weight 203mm*85mm*53mm, 480g with battery
Micro Printer Printing method Thermal-line dot method
Paper Thermal roll paper (standard) 57*40 mm
Effective Printing area 48mm
Speed Maximum 70mm/sec(480 dot line/sec)
Printing resolutions 8 dots/mm
Character 12*24dots and 24*48 dots
Number of columns 32columns/line
Printing head life Pulse resistance:100 million pulses/dot (under our standard conditions);
Abrasion resistance: paper traveling distance 50km (print ratio:25% or less)



FAQ

1. Are you a manufacturer?

Yes. Our company head office and factory are both in Shanghai.



2. Can you provide application software for the hardware?

We provide free SDK with API and demo to support your development or programming.



3. What is the warranty?

The warranty time is 1 year without man-made damage.



4. Does the device have the language default as English?

Of course, our device supports multi-language such as English, Spanish, Portuguese, French, German, Polish, Japanese, Russian and so on.



5. Can your device install the Android Apps that our customers provide?

No problem. Just send us your Apps which you need to get the license of the apps and then our Engineers can do that for you.



If you have further question about our products, please don’t hesitate to contact us, we will be happy to serve you.
