EMV 5800mAh 4G Android PDA System Android 7.0 Support Visa NFC Card

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : 1 pc per box, 10 pc per carton Delivery Time : 1-4 weeks
Payment Terms : T/T Supply Ability : 10000 Set/Sets per Month
Place of Origin: China Brand Name: Wisecard
Certification: PCI CE Rohs Model Number: S8

Detail Information

Processor: 4 Core ARM Cortex-A53 FingerPrint: Optional
Screen: 5.5 Inch Touch Screen Battery: 7.4V5800mAh
Printer: Thermal Printer Inbedded Contactless Card: NFC 13.56 MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC 14443&7816
Smart Card: EMV & PBOC Compliant Magnetic Card: ISO 7810, 7811, 7813; Triple Track, Bi-Directional; Swipe Speed 10cm/sec - 100cm/sec
High Light:

EMV 4G Android PDA System

,

5800mAh 4G Android PDA System

,

Android 7.0 Payment POS Terminal

Product Description

4G Android PDA System Payment POS Terminal Z90 Support Visa/NFC Card For Restaurant



Introduction

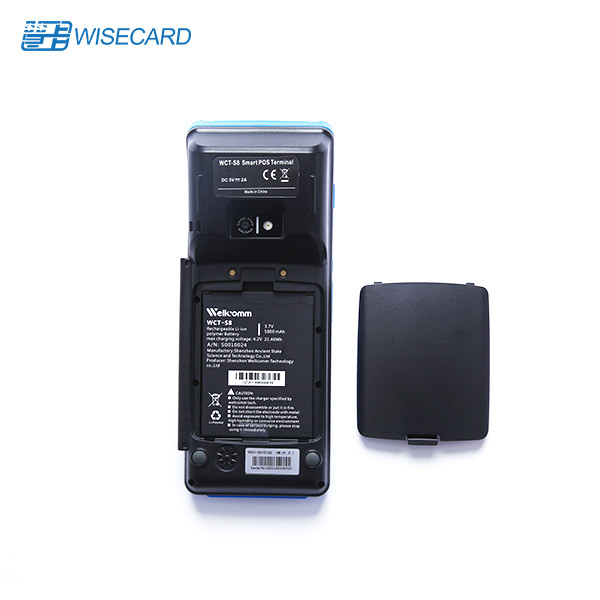

WCT-S8 Smart POS machine, android 7.1 operating system,5.5 inch screen touch, super long standby battery capacity is 5800mAh/3.7V, thermal paper printing, 8 million pixels camera, 4G/3G/wifi, bluetooth communication,magnetic stripe, induction IC card, contact IC card.This fine workmanship and top quality machine is the best choice in the market.



★ Android 7.0 OS and Quad-Core
★ Smart Payments All In One Machine
★ High-speed Printer
★ 5800mAH Large Battery Super Endurance





WCT-S8 Android POS Configuration
Type Product Spec
Platform Processor MTK MT8735 ( 4-Core ARM Cortex-A53,1.3GHz )
RAM 1GB / 2GB LPDDR3
FLASH 8GB / 16GB EMMC
OS Android 7.0 Security Payment OS
Security Processor MAXIM MAX32555 (DeepCover Secure microcontroller)
Wireless Wireless Standard LTE-FDD/TDD-LTE/TDS-CDMA/WCDMA/CDMA2000/EDGE/GPRS
4G LTE-FDD : B1/B3/B8 (TBD)
TDD-LTE : B38/B39/B40/B41
3G UMTS/HSPA/HSPA+/DC-HSPA+ : B1/B8
TDS-CDMA : B34/B39
EVDO : BC0
2G EDGE/GPRS : B3/B8
WLAN 2.4GHz ISM 2402MHz~2482MHz
BT 4.1 LE 2.4GHz ISM 2402MHz~2480MHz
USIM Card Slots 4 PSAM slots, 2 SIM slots
GPS GPS GPS, GLONASS
LCD and Touch Panel LCD Pixels 720*1280 IPS
LCD 5.5 inch
Touch Panel G+F+F, Capacitive Color Touch,Multi Touch, signature capable, video capable
Keypad Physical key Power ON/OFF, Volumn up, Volumn down.
Virtual Keypad Home Key, Function key, Numeric Keys.
Audio Speaker 1 W x 1
Microphone Voice input
USB USB Standard USB Type C 2.0
Other Charge Battery, OTG support
Camera REAR 8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video.
FRONT 2Mega Pixels, CMOS, JPEG picture, Video.
NFC Standard ISO14443 type A/B ( ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support )
Spectrum 13.56MHz
IC card Contactless Card NFC 13.56 MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC 14443&7816
EMV card Smart Card EMV & PBOC Compliant
MSR Magnetic Card ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec.
Battery Battery type Li-ion polymer battery
Capacity 3.7V, 5800mAh
Charger 5V/2A
Certification ICC EMV contact L1 / PBCO L1
EMV contact L2 / PBOC L2
NFC EMV contactless L1 / qPBOC L1
EMV contactless L2 / qPBOC L2
Security PCI 5.0
UPTS 2.0
Operating environment Temperature -5 to +50 °C
Relative humidity 10 % to 85 % RH
Storage environment Temperature -10 to +60 °C
Relative humidity 10 % to 90 % RH
Size and Weigt Dimension and Weight 203mm*85mm*53mm, 480g with battery
Micro Printer Printing method Thermal-line dot method
Paper Thermal roll paper (standard) 57*40 mm
Effective Printing area 48mm
Speed Maximum 70mm/sec(480 dot line/sec)
Printing resolutions 8 dots/mm
Character 12*24dots and 24*48 dots
Number of columns 32columns/line
Printing head life Pulse resistance:100 million pulses/dot (under our standard conditions);
Abrasion resistance: paper traveling distance 50km (print ratio:25% or less)



Quality guarantee:

1. All our products have one year guarantee from the shipping date

2. Under Guarantee: if any non-human damage happen, we’ll offer free pairing or replacement, including delivery cost

3. Out of guarantee: we offer repairing pats at lower cost, and service free in charge.



Custom design is welcome :

Customized projects accepted including software and hardware.

Don't hesitate to share your idea with us, we have experienced engineer team and always do our best to help client's project.



FAQ:

1. Do you have POS in stock? How long you can send out the goods?

Yes, we have. Normally, samples within 3 working days. Bulk qty about 7 days.



2. What is your warranty?

We offer 12-months warranty, lifelong maintenance service. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;



3.Can I get a sample for testing before formal order? How to get it?

Yes. Of course. We will arrange shipment for you through DHL as soon as we receive the payment.



4. Can you provide SDK?

Yes, SDK will be provided free to help you do the secondary development.



5. Do you offer other POS peripherals?

Yes, we offer One-stop POS products service, such as POS / Mobile / Kiosk / Panel Printer, Barcode Scanner, Smart / NFC / Magnetic Card Reader & Writer, POS Keyboard, Cash Drawer, Cash Register,Passport Reader, Check Scanner!



6.What payment methods your company accept?

We mainly accept T/T.



7.What's the shipment terms and delivery time of your company?

Well, they depend on the quantity of your order. As you know, we need time to manufacture the machines. But mostly, the shipment time is 3-5 working days after delivery.

EMV 5800mAh 4G Android PDA System Android 7.0 Support Visa NFC Card 0EMV 5800mAh 4G Android PDA System Android 7.0 Support Visa NFC Card 1EMV 5800mAh 4G Android PDA System Android 7.0 Support Visa NFC Card 2EMV 5800mAh 4G Android PDA System Android 7.0 Support Visa NFC Card 3



Company Information:

Wisecard (a WiseGroup company) is a global solution provider that has been providing innovative payment and secure solutions to financial institutions, government entities and telco operators worldwide.



Wisecard have been providing EMV smart card, EMV biometric card, EMV perso software, card issuance, EMV embossers, POS terminals, smart banking, smart teller machine, kiosk, vending machine, biometric POS, Hardware Secure Module, mobile payment platform, private label card solution, prepaid card solution, card management system to partners in more than 60 countries worldwide. Wisecard’s product suite empower large global financial institutions and government sectors as well as small to medium sized retail banks.



Wisecard solutions are adapting to the highest and latest secure standard, and the solutions have been fully tested and certified by international test labs, like FBI, STQC, EMV, PCI DSS, PA DSS, VISA, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay and etc.



Notes: FBI, STQC, EMV, PCIDSS, PADSS, Visa, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay is a registered trademark. All trademarks referenced here are the property of the respective owners.
