Product Description
Android 4G Handheld POS Terminal With Thermal Printer Barcode Scanner Mobile Payment Solution

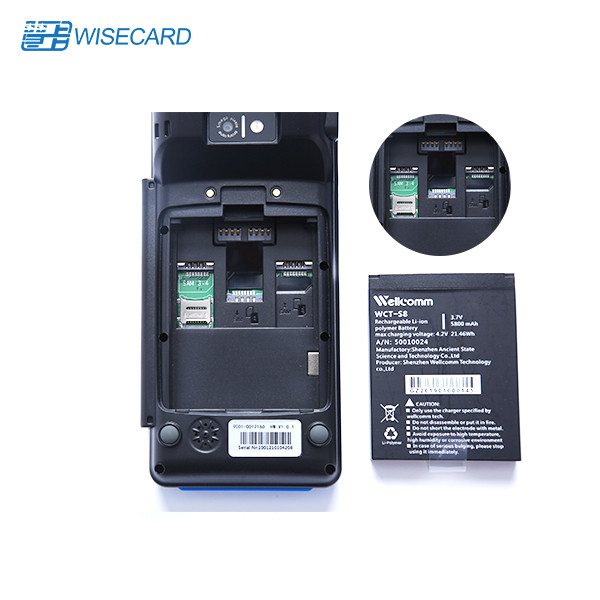

★ Multiple card slots, 4 PSAM and 2 SIM Slots
Multiple card slots for PSAM and SIM cards brings more options for security and connection.
★ Elastic Wrist Strap
Considering the need to move frequently, the elastic wrist strap design of the TPS320 can hold the product steadily and prevents falls.
★ More Options
Optional functions adapt to your actual needs, such as Fingerprint Reader, IC Card Reader, Charging Base, Fiscal Memory, and other accessories, etc.
★ Applications
WCT-T90 POS Machine can be used for payment in quite scenarios: Retail Stores; Mobile Charges; Retail Management; Parking Charges Supermarket; Utilities; Lotteries.
More Options
Optional functions adapt to your actual needs.
such as Fingerprint Reader, IC Card Reader, Charging Base, Fiscal Memory, and other accessories, etc.
7.4V/5000mAH Large Battery Super Endurance
WCT-T90 can support a massive 5800mAh battery. This means that you can operate it much longer and that you need to charge it only occasionally.
*The standard battery is 7.4V / 2500mAH.
| WCT-T90 Android POS Configuration |
| Type |
Product Spec |
| Platform |
Processor |
MTK MT8735 ( 4-Core ARM Cortex-A53,1.3GHz ) |
| RAM |
1GB / 2GB LPDDR3 |
| FLASH |
8GB / 16GB EMMC |
| OS |
Android 7.0 Security Payment OS |
| Security Processor |
MAXIM MAX32555 (DeepCover Secure microcontroller) |
| Wireless |
Wireless Standard |
LTE-FDD/TDD-LTE/TDS-CDMA/WCDMA/CDMA2000/EDGE/GPRS |
| 4G |
LTE-FDD : B1/B3/B8 (TBD) |
| TDD-LTE : B38/B39/B40/B41 |
| 3G |
UMTS/HSPA/HSPA+/DC-HSPA+ : B1/B8 |
| TDS-CDMA : B34/B39 |
| EVDO : BC0 |
| 2G |
EDGE/GPRS : B3/B8 |
| WLAN |
2.4GHz ISM 2402MHz~2482MHz |
| BT 4.1 LE |
2.4GHz ISM 2402MHz~2480MHz |
| USIM |
Card Slots |
4 PSAM slots, 2 SIM slots |
| GPS |
GPS |
GPS, GLONASS |
| LCD and Touch Panel |
LCD Pixels |
720*1280 IPS |
| LCD |
5.5 inch |
| Touch Panel |
G+F+F, Capacitive Color Touch,Multi Touch, signature capable, video capable |
| Keypad |
Physical key |
Power ON/OFF, Volumn up, Volumn down. |
| Virtual Keypad |
Home Key, Function key, Numeric Keys. |
| Audio |
Speaker |
1 W x 1 |
| Microphone |
Voice input |
| USB |
USB Standard |
USB Type C 2.0 |
| Other |
Charge Battery, OTG support |
| Camera |
REAR |
8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video. |
| FRONT |
2Mega Pixels, CMOS, JPEG picture, Video. |
| NFC |
Standard |
ISO14443 type A/B ( ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support ) |
| Spectrum |
13.56MHz |
| IC card |
Contactless Card |
NFC 13.56 MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC 14443&7816 |
| EMV card |
Smart Card |
EMV & PBOC Compliant |
| MSR |
Magnetic Card |
ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec. |
| Battery |
Battery type |
Li-ion polymer battery |
| Capacity |
3.7V, 5800mAh |
| Charger |
5V/2A |
| Certification |
ICC |
EMV contact L1 / PBCO L1 |
| EMV contact L2 / PBOC L2 |
| NFC |
EMV contactless L1 / qPBOC L1 |
| EMV contactless L2 / qPBOC L2 |
| Security |
PCI 5.0 |
| UPTS 2.0 |
| Operating environment |
Temperature |
-5 to +50 °C |
| Relative humidity |
10 % to 85 % RH |
| Storage environment |
Temperature |
-10 to +60 °C |
| Relative humidity |
10 % to 90 % RH |
| Size and Weigt |
Dimension and Weight |
203mm*85mm*53mm, 480g with battery |
| Micro Printer |
Printing method |
Thermal-line dot method |
| Paper |
Thermal roll paper (standard) 57*40 mm |
| Effective Printing area |
48mm |
| Speed |
Maximum 70mm/sec(480 dot line/sec) |
| Printing resolutions |
8 dots/mm |
| Character |
12*24dots and 24*48 dots |
| Number of columns |
32columns/line |
| Printing head life |
Pulse resistance:100 million pulses/dot (under our standard conditions); |
| Abrasion resistance: paper traveling distance 50km (print ratio:25% or less) |
Trade conditions
1. Payment Terms: T/T LC, Western Union, Money Gram, Paypal, etc...
2. Sample Lead Time: 2-4days when there is stockand57ays for custom design or logo adding.
3. Mass Production Lead Time: 20-25days, and 30-35days for custom design.
4. Shipping Port: Shenzhen, China. We can manage shipment from the beginning to the end for you.
5.Door to door service: We have good channels by DHL/UPS/FEDEX/TNT as options for you.
FAQ:
1. Q: What kind of brand promotion do you have?
A: Official website, Wechat, Linkedin, Twitter and Facebook. Also, there are more than ten annual exhibitions at home and abroad.
2. Q: How do you control quality?
A: We are a company with ISO9001:2015 international QMS certification. Our products have obtained CCC, CE, FCC, RoHS, KC, SAA, BIS, BSMI certifications.
3.Q: What is your product command?
A: Thermal printer compatible with ESCPOS. Label printer compatible with TSPL EPL DPL ZPL emulation.
4.Q: What’s your leading time?
A: For less than 1000pcs, 7-10 working days. For more than 1000pcs, 10-15 working days.
Company Information:
Wisecard (a WiseGroup company) is a global solution provider that has been providing innovative payment and secure solutions to financial institutions, government entities and telco operators worldwide.
Wisecard have been providing EMV smart card, EMV biometric card, EMV perso software, card issuance, EMV embossers, POS terminals, smart banking, smart teller machine, kiosk, vending machine, biometric POS, Hardware Secure Module, mobile payment platform, private label card solution, prepaid card solution, card management system to partners in more than 60 countries worldwide. Wisecard’s product suite empower large global financial institutions and government sectors as well as small to medium sized retail banks.
Wisecard solutions are adapting to the highest and latest secure standard, and the solutions have been fully tested and certified by international test labs, like FBI, STQC, EMV, PCI DSS, PA DSS, VISA, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay and etc.
Notes: FBI, STQC, EMV, PCIDSS, PADSS, Visa, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay is a registered trademark. All trademarks referenced here are the property of the respective owners.
