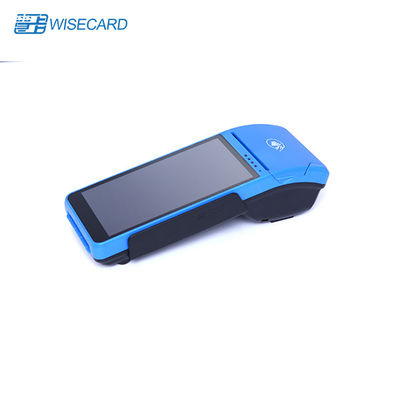

WIFI Handheld Smart POS Terminal With NFC Reader Loyalty Program System
Contact Person : Steven Yao
Phone Number : +86-13424312532
WhatsApp : +8613424312532
|Minimum Order Quantity :||Negotiable||Price :||Negotiable|
|Packaging Details :||1 pc per box, 10 pc per carton||Delivery Time :||1-4 weeks|
|Payment Terms :||T/T||Supply Ability :||10000 Set/Sets per Month|
|Place of Origin:||China||Brand Name:||Wisecard|
|Certification:||PCI CE Rohs||Model Number:||S8|
|FRONT Camera:||2Mega Pixels, CMOS, JPEG Picture, Video.||CardReader:||Contactless, Contact, Magstripe|
|RAM:||1GB / 2GB LPDDR3||FLASH:||8GB / 16GB EMMC|
|Smart Card:||EMV & PBOC Compliant||Security Processor:||MAXIM MAX32555 (DeepCover Secure Microcontroller)|
|Microphone:||Voice Input||GPS:||GPS, GLONASS|
MAXIM MAX32555 Pos Terminal System,
2GB LPDDR3 Pos Terminal System,
5800mAh PCI Handheld Pos System
Wisecard-S8 reaches the highest safety standards of international PCI5. X, which makes it the absolute secury financial payment smart POS terminal. It supports to swipe magnetic stripe card, read smart IC card and contactless IC card, QR code, etc, which is the flagship product in the field of financial payment.
|WCT-S8 Android POS Configuration|
|Platform||Processor||MTK MT8735 ( 4-Core ARM Cortex-A53,1.3GHz )|
|RAM||1GB / 2GB LPDDR3|
|FLASH||8GB / 16GB EMMC|
|OS||Android 7.0 Security Payment OS|
|Security Processor||MAXIM MAX32555 (DeepCover Secure microcontroller)|
|4G||LTE-FDD : B1/B3/B8 (TBD)|
|TDD-LTE : B38/B39/B40/B41|
|3G||UMTS/HSPA/HSPA+/DC-HSPA+ : B1/B8|
|TDS-CDMA : B34/B39|
|EVDO : BC0|
|2G||EDGE/GPRS : B3/B8|
|WLAN||2.4GHz ISM 2402MHz~2482MHz|
|BT 4.1 LE||2.4GHz ISM 2402MHz~2480MHz|
|USIM||Card Slots||4 PSAM slots, 2 SIM slots|
|LCD and Touch Panel||LCD Pixels||720*1280 IPS|
|Touch Panel||G+F+F, Capacitive Color Touch,Multi Touch, signature capable, video capable|
|Keypad||Physical key||Power ON/OFF, Volumn up, Volumn down.|
|Virtual Keypad||Home Key, Function key, Numeric Keys.|
|Audio||Speaker||1 W x 1|
|USB||USB Standard||USB Type C 2.0|
|Other||Charge Battery, OTG support|
|Camera||REAR||8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video.|
|FRONT||2Mega Pixels, CMOS, JPEG picture, Video.|
|NFC||Standard||ISO14443 type A/B ( ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support )|
|IC card||Contactless Card||NFC 13.56 MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC 14443&7816|
|EMV card||Smart Card||EMV & PBOC Compliant|
|MSR||Magnetic Card||ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec.|
|Battery||Battery type||Li-ion polymer battery|
|Certification||ICC||EMV contact L1 / PBCO L1|
|EMV contact L2 / PBOC L2|
|NFC||EMV contactless L1 / qPBOC L1|
|EMV contactless L2 / qPBOC L2|
|Operating environment||Temperature||-5 to +50 °C|
|Relative humidity||10 % to 85 % RH|
|Storage environment||Temperature||-10 to +60 °C|
|Relative humidity||10 % to 90 % RH|
|Size and Weigt||Dimension and Weight||203mm*85mm*53mm, 480g with battery|
|Micro Printer||Printing method||Thermal-line dot method|
|Paper||Thermal roll paper (standard) 57*40 mm|
|Effective Printing area||48mm|
|Speed||Maximum 70mm/sec(480 dot line/sec)|
|Printing resolutions||8 dots/mm|
|Character||12*24dots and 24*48 dots|
|Number of columns||32columns/line|
|Printing head life||Pulse resistance:100 million pulses/dot (under our standard conditions);|
|Abrasion resistance: paper traveling distance 50km (print ratio:25% or less)|
1. Q: Are you a manufacturer?
A: Yes. Our company head office and factory are both in Shanghai.
2. Q: Can you provide application software for the hardware?
A: We provide free SDK with API and demo to support your development or programming.
3. Q: What is the warranty?
A: The warranty time is 1 year without man-made damage.
4. Q: Does the device have the language default as English?
A: Of course, our device supports multi-language such as English, Spanish, Portuguese ,French, German, Polish, Japanese, Russian and so on.
5. Q: Can your device install the Android Apps that our customers provide?
A: No problem. Just send us your Apps which you need to get the licence of the apps and then our Engineers can do that for you.
If you have further question about our products, please don’t hesitate to contact us, we will be happy to serve you.
