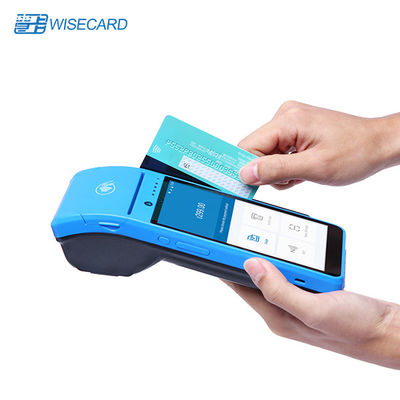

RS232 2GB LPDDR3 TDS CDMA Card Swiping Machine PCI PBOC For Payment

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : 1 pc per box, 10 pc per carton Delivery Time : 1-4 weeks
Payment Terms : T/T Supply Ability : 10000 Set/Sets per Month
Place of Origin: China Brand Name: Wisecard
Certification: EMV PCI CE Rohs Model Number: WCT-S8

Detail Information

Front Camera: 2Mega Pixels USB: Standard USB Type C 2.0
Rear Camera: 8Mega Pixels Printer: Thermal Printer Inbedded
Spectrum: 13.56MHz Input Power: 5V 2A
Serial Port: RS232 Other: Charge Battery, OTG Support
High Light:

2GB LPDDR3 Card Swiping Machine

,

TDS CDMA Card Swiping Machine

,

PCI PBOC Mobile Pos Terminal

Product Description

Big battery high secure card swiping machine for payment



Big battery high secure card swiping machine for payment

Big battery high secure card swiping machine for payment

Big battery high secure card swiping machine for payment

Big battery high secure card swiping machine for payment



1. Retail POS



2. membership management



3. lottery terminal



4. inventory management



5. scenic spot ticket system



Features:

★ Fashionable Appearance and Friendly UI
Small size with big screen
Fashionable line and elegant appearance
Ergonomic and integrity design study
Along with friendly customize UI

★ Excellent Performance
High Performance CPU, 4 core processors
Supporting 4G communication model
High volume lithium battery, satisfies intensive payment transaction requests.

★ Various Payment Models Support
Support magnetic strip card, financial IC card and various contactless cards
Embodied with 1D&2D barcode scanner


WCT-S8 Android POS Configuration
Type Product Spec
Platform Processor MTK MT8735 ( 4-Core ARM Cortex-A53,1.3GHz )
RAM 1GB / 2GB LPDDR3
FLASH 8GB / 16GB EMMC
OS Android 7.0 Security Payment OS
Security Processor MAXIM MAX32555 (DeepCover Secure microcontroller)
Wireless Wireless Standard LTE-FDD/TDD-LTE/TDS-CDMA/WCDMA/CDMA2000/EDGE/GPRS
4G LTE-FDD : B1/B3/B8 (TBD)
TDD-LTE : B38/B39/B40/B41
3G UMTS/HSPA/HSPA+/DC-HSPA+ : B1/B8
TDS-CDMA : B34/B39
EVDO : BC0
2G EDGE/GPRS : B3/B8
WLAN 2.4GHz ISM 2402MHz~2482MHz
BT 4.1 LE 2.4GHz ISM 2402MHz~2480MHz
USIM Card Slots 4 PSAM slots, 2 SIM slots
GPS GPS GPS, GLONASS
LCD and Touch Panel LCD Pixels 720*1280 IPS
LCD 5.5 inch
Touch Panel G+F+F, Capacitive Color Touch,Multi Touch, signature capable, video capable
Keypad Physical key Power ON/OFF, Volumn up, Volumn down.
Virtual Keypad Home Key, Function key, Numeric Keys.
Audio Speaker 1 W x 1
Microphone Voice input
USB USB Standard USB Type C 2.0
Other Charge Battery, OTG support
Camera REAR 8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video.
FRONT 2Mega Pixels, CMOS, JPEG picture, Video.
NFC Standard ISO14443 type A/B ( ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support )
Spectrum 13.56MHz
IC card Contactless Card NFC 13.56 MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC 14443&7816
EMV card Smart Card EMV & PBOC Compliant
MSR Magnetic Card ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec.
Battery Battery type Li-ion polymer battery
Capacity 3.7V, 5800mAh
Charger 5V/2A
Certification ICC EMV contact L1 / PBCO L1
EMV contact L2 / PBOC L2
NFC EMV contactless L1 / qPBOC L1
EMV contactless L2 / qPBOC L2
Security PCI 5.0
UPTS 2.0
Operating environment Temperature -5 to +50 °C
Relative humidity 10 % to 85 % RH
Storage environment Temperature -10 to +60 °C
Relative humidity 10 % to 90 % RH
Size and Weigt Dimension and Weight 203mm*85mm*53mm, 480g with battery
Micro Printer Printing method Thermal-line dot method
Paper Thermal roll paper (standard) 57*40 mm
Effective Printing area 48mm
Speed Maximum 70mm/sec(480 dot line/sec)
Printing resolutions 8 dots/mm
Character 12*24dots and 24*48 dots
Number of columns 32columns/line
Printing head life Pulse resistance:100 million pulses/dot (under our standard conditions);
Abrasion resistance: paper traveling distance 50km (print ratio:25% or less)





Why choose us? To be sure.

1. Professional: We are a mobile POS device and industry tablet manufacturer with more than 10 years experience.
2. Cost-effective Price: we have the best price, cost-effective, good quality. 3. Customer service: We will handle all your
questions, any question just email us or call us, we will try our best to help you out.
3. Long term warranty: We provide 1-year warranty for most of our products.
4. SDK/API for the products: We will offer free SDK/API and technical assistance for your development.
5. Our products have certificates like EMV, PCI,CE, FCC etc.
6. Strong presence in ODM project: We have good experiences of cooperating with the famous companies overseas.









Company Information:

Wisecard (a WiseGroup company) is a global solution provider that has been providing innovative payment and secure solutions to financial institutions, government entities and telco operators worldwide.



Wisecard have been providing EMV smart card, EMV biometric card, EMV perso software, card issuance, EMV embossers, POS terminals, smart banking, smart teller machine, kiosk, vending machine, biometric POS, Hardware Secure Module, mobile payment platform, private label card solution, prepaid card solution, card management system to partners in more than 60 countries worldwide. Wisecard’s product suite empower large global financial institutions and government sectors as well as small to medium sized retail banks.



Wisecard solutions are adapting to the highest and latest secure standard, and the solutions have been fully tested and certified by international test labs, like FBI, STQC, EMV, PCI DSS, PA DSS, VISA, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay and etc.



Notes: FBI, STQC, EMV, PCIDSS, PADSS, Visa, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay is a registered trademark. All trademarks referenced here are the property of the respective owners.
