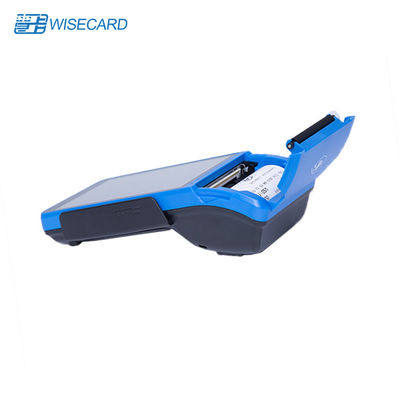

WIFI Handheld Smart POS Terminal With NFC Reader Loyalty Program System
Contact Person : Steven Yao
Phone Number : +86-13424312532
WhatsAPP : +8613424312532
Minimum Order Quantity : | Negotiable | Price : | Negotiable |
---|---|---|---|
Packaging Details : | 1 pc per box, 10 pc per carton | Delivery Time : | 1-4 weeks |
Payment Terms : | T/T | Supply Ability : | 10000 Set/Sets per Month |
Place of Origin: | China | Brand Name: | Wisecard |
---|---|---|---|
Certification: | PCI CE Rohs | Model Number: | T90FA |
Detail Information |
|||
Processor: | 4 Core ARM Cortex-A53 | OS: | Android 7 Or Above |
---|---|---|---|
Screen: | 5.5 Inch Touch Screen | Fingerprint: | Aratek, FBI Certified |
Battery: | 7.4V 5800mAh | Printer: | Thermal Printer Inbedded |
Rear Camera: | 8M Pixel | Communication: | 2G / 3G / 4G / Wifi, Bluetooth |
Highlight: | 8M Pixel Wifi Pos Machine,EVDO BC0 Wifi Pos Machine,HSPA PSAM Mobile POS Terminal |
Product Description
WCT-S8 is an intelligent multimedia handheld POS terminals, it adopts the mainstream intelligent technology, uses 4G, 3G, 2G, WIFI, and other communication technology, the safest Android version 7.0. security chip meets with the requirement of the PCI, reaching the highest safety standards of international PCI5. X, which makes it the absolute secure financial payment smart POS terminal. It supports to swipe magnetic stripe card, read smart IC card and contactless IC card, QR code, etc, which is the flagship product in the field of financial payment.
Why Choose us?
we offer quality services from the ideas to proof of concept and finally to sample prototypes, this gives us experience and a wide range of intelligent displays product knowledge.
Our years experiences made us faster and better, our teams are truly specialized, from our purchasing department to our factory workers, everyone is key to our success. Our sales teams are composed of many nationalities, some from foreign markets with years of experience. This gives us the best communication skills in the industry. Our English and world market knowledge is another reason why choosing us makes only sense.
WCT-S8 Android POS Configuration | ||
Type | Product Spec | |
Platform | Processor | MTK MT8735 ( 4-Core ARM Cortex-A53,1.3GHz ) |
RAM | 1GB / 2GB LPDDR3 | |
FLASH | 8GB / 16GB EMMC, TF Card Supported | |
OS | Android 7.0 Security Payment OS | |
Security Processor | MAXIM MAX32555 (DeepCover Secure microcontroller) | |
Wireless | Wireless Standard | LTE-FDD/TDD-LTE/TDS-CDMA/WCDMA/CDMA2000/EDGE/GPRS |
4G | LTE-FDD : B1/B3/B8 (TBD) | |
TDD-LTE : B38/B39/B40/B41 | ||
3G | UMTS/HSPA/HSPA+/DC-HSPA+ : B1/B8 | |
TDS-CDMA : B34/B39 | ||
EVDO : BC0 | ||
2G | EDGE/GPRS : B3/B8 | |
WLAN | 2.4GHz ISM 2402MHz~2482MHz | |
BT 4.1 LE | 2.4GHz ISM 2402MHz~2480MHz | |
USIM | Card Slots | 4 PSAM slots, 2 SIM slots |
GPS | GPS | GPS, GLONASS |
LCD and Touch Panel | LCD Pixels | 720*1280 IPS |
LCD | 5.5 inch | |
Touch Panel | G+F+F, Capacitive Color Touch,Multi Touch, signature capable, video capable | |
Keypad | Physical key | Power ON/OFF, Volumn up, Volumn down. |
Virtual Keypad | Home Key, Function key, Numeric Keys. | |
Audio | Speaker | 1 W x 1 |
Microphone | Voice input | |
USB | USB Standard | USB Type C 2.0 |
Other | Charge Battery, OTG support | |
Camera | REAR | 8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video. |
FRONT | NA | |
NFC | Standard | ISO14443 type A/B ( ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support ) |
Spectrum | 13.56MHz | |
IC card | Contactless Card | NFC 13.56 MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC 14443&7816 |
EMV card | Smart Card | EMV & PBOC Compliant |
MSR | Magnetic Card | ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec. |
Battery | Battery type | Li-ion polymer battery |
Capacity | 3.7V, 5800mAh | |
Charger | 5V/2A | |
Certification | ICC | EMV contact L1 / PBCO L1 |
EMV contact L2 / PBOC L2 | ||
NFC | EMV contactless L1 / qPBOC L1 | |
EMV contactless L2 / qPBOC L2 | ||
Security | PCI 5.0 | |
UPTS 2.0 | ||
Operating environment | Temperature | -5 to +50 °C |
Relative humidity | 10 % to 85 % RH | |
Storage environment | Temperature | -10 to +60 °C |
Relative humidity | 10 % to 90 % RH | |
Size and Weigt | Dimension and Weight | 210mm*85mm*53mm, 480g with battery |
Micro Printer | Printing method | Thermal-line dot method |
Paper | Thermal roll paper (standard) 57*40 mm | |
Effective Printing area | 48mm | |
Speed | Maximum 70mm/sec(480 dot line/sec) | |
Printing resolutions | 8 dots/mm | |
Character | 12*24dots and 24*48 dots | |
Number of columns | 32columns/line | |
Printing head life | Pulse resistance:100 million pulses/dot (under our standard conditions); | |
Abrasion resistance: paper traveling distance 50km (print ratio:25% or less) |
