UMTS HSPA Handheld Pos Terminal NFC PBOC UPTS 2.0 EMV With Printer Terminal

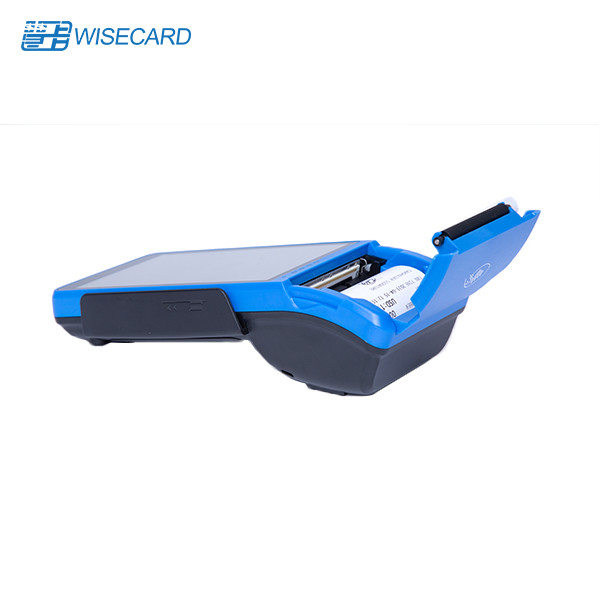

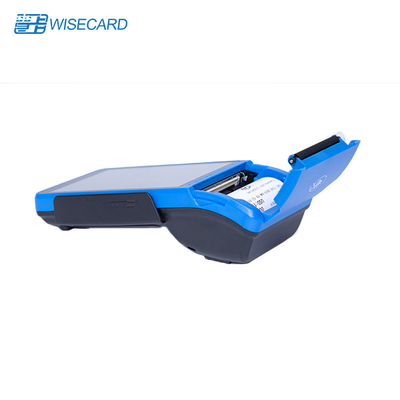

Large Image : UMTS HSPA Handheld Pos Terminal NFC PBOC UPTS 2.0 EMV With Printer Terminal

Product Details:

Place of Origin:	China
Brand Name:	Wisecard
Certification:	PCI CE Rohs
Model Number:	T90FA

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	1 pc per box, 10 pc per carton
Delivery Time:	1-4 weeks
Payment Terms:	T/T
Supply Ability:	10000 Set/Sets per Month

Contact Now

Detailed Product Description

Processor:	4 Core ARM Cortex-A53	OS:	Android 7 Or Above
Screen:	5.5 Inch Touch Screen	Fingerprint:	Aratek, FBI Certified
Battery:	7.4V5800mAh	Printer:	Thermal Printer Inbedded
Rear Camera:	8M Pixel	Communication:	2G / 3G / 4G / Wifi, Bluetooth
Highlight:	UMTS HSPA Handheld Pos Terminal , NFC PBOC Handheld Pos Terminal , UPTS 2.0 EMV Android Pos Terminal

Hot Sell 4G Android Handheld Pos With Printer Terminal For Android Restaurant Pos System

★ Android 7.0 OS and Quad-Core

The performance of WCT-S8 is higher than the general level on the market since it's powered by Android 7.0 system (also called Android Oreo) and a Quad-Core processor with 1GB DDR+8GB memory or 2GB + 16GB.

★ Smart Payments All In One Machine

WCT-S8 supports reading Contact Card, NFC card, IC card, QR-code, Dual interface card, magnetic card. So it can serve for contact and contactless payment, QR-code Payment, smart card payment. Support ISO14443 Type A/B, ISO/IEC 14443&7816, ISO18092 compliant.

Why choose us? To be sure.
1. Professional: We are a mobile POS device and industry tablet manufacturer with more than 10 years experience.
2. Cost-effective Price: we have the best price, cost-effective, good quality.

3. Customer service: We will handle all your questions, any question just email us or call us, we will try our best to help you out.
4. Long term warranty: We provide 1-year warranty for most of our products.

FAQ

Do you have the items in stock?
Yes, the item are large stock. We can send the goods out within 3 days after payment received. For the goods are out of stock, production time is about 7-10 days.
Do your products support customized?
Yes, we provide OEM service. Our standard products can be branded according to your needs. The color tones, finishing, logo silkscreen can all be customized to give the products in line with your company image and style.

WCT-S8 Android POS Configuration
Type		Product Spec
Platform	Processor	MTK MT8735 ( 4-Core ARM Cortex-A53,1.3GHz )
	RAM	1GB / 2GB LPDDR3
	FLASH	8GB / 16GB EMMC, TF Card Supported
	OS	Android 7.0 Security Payment OS
	Security Processor	MAXIM MAX32555 (DeepCover Secure microcontroller)
Wireless	Wireless Standard	LTE-FDD/TDD-LTE/TDS-CDMA/WCDMA/CDMA2000/EDGE/GPRS
	4G	LTE-FDD : B1/B3/B8 (TBD)
	4G	TDD-LTE : B38/B39/B40/B41
	3G	UMTS/HSPA/HSPA+/DC-HSPA+ : B1/B8
		TDS-CDMA : B34/B39
		EVDO : BC0
	2G	EDGE/GPRS : B3/B8
	WLAN	2.4GHz ISM 2402MHz~2482MHz
	BT 4.1 LE	2.4GHz ISM 2402MHz~2480MHz
USIM	Card Slots	4 PSAM slots, 2 SIM slots
GPS	GPS	GPS, GLONASS
LCD and Touch Panel	LCD Pixels	720*1280 IPS
	LCD	5.5 inch
	Touch Panel	G+F+F, Capacitive Color Touch,Multi Touch, signature capable, video capable
Keypad	Physical key	Power ON/OFF, Volumn up, Volumn down.
Keypad	Virtual Keypad	Home Key, Function key, Numeric Keys.
Audio	Speaker	1 W x 1
Audio	Microphone	Voice input
USB	USB Standard	USB Type C 2.0
USB	Other	Charge Battery, OTG support
Camera	REAR	8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video.
Camera	FRONT	NA
NFC	Standard	ISO14443 type A/B ( ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support )
NFC	Spectrum	13.56MHz
IC card	Contactless Card	NFC 13.56 MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC 14443&7816
EMV card	Smart Card	EMV & PBOC Compliant
MSR	Magnetic Card	ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec.
Battery	Battery type	Li-ion polymer battery
	Capacity	3.7V, 5800mAh
	Charger	5V/2A
Certification	ICC	EMV contact L1 / PBCO L1
	ICC	EMV contact L2 / PBOC L2
	NFC	EMV contactless L1 / qPBOC L1
	NFC	EMV contactless L2 / qPBOC L2
	Security	PCI 5.0
	Security	UPTS 2.0
Operating environment	Temperature	-5 to +50 °C
Operating environment	Relative humidity	10 % to 85 % RH
Storage environment	Temperature	-10 to +60 °C
Storage environment	Relative humidity	10 % to 90 % RH
Size and Weigt	Dimension and Weight	210mm85mm53mm, 480g with battery
Micro Printer	Printing method	Thermal-line dot method
	Paper	Thermal roll paper (standard) 57*40 mm
	Effective Printing area	48mm
	Speed	Maximum 70mm/sec(480 dot line/sec)
	Printing resolutions	8 dots/mm
	Character	1224dots and 2448 dots
	Number of columns	32columns/line
	Printing head life	Pulse resistance:100 million pulses/dot (under our standard conditions);
	Printing head life	Abrasion resistance: paper traveling distance 50km (print ratio:25% or less)
