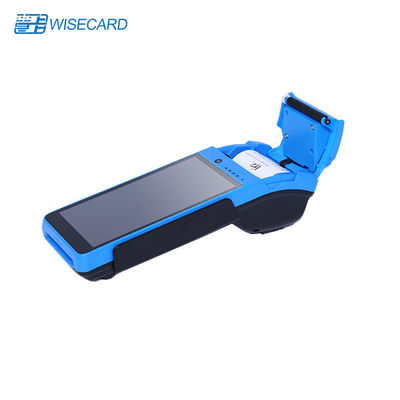

5800mAh Rugged Pda Terminal 2.4GHz ISM TDS CDMA QR Code Barcode Scanner
5800mAh Rugged Pda Terminal 2.4GHz ISM TDS CDMA QR Code Barcode Scanner
5800mAh Rugged Pda Terminal 2.4GHz ISM TDS CDMA QR Code Barcode Scanner 5800mAh Rugged Pda Terminal 2.4GHz ISM TDS CDMA QR Code Barcode Scanner
Contact Now

5800mAh Rugged Pda Terminal 2.4GHz ISM TDS CDMA QR Code Barcode Scanner

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : 1 pc per box, 10 pc per carton Delivery Time : 1-4 weeks
Payment Terms : T/T Supply Ability : 10000 Set/Sets per Month
Place of Origin: China Brand Name: Wisecard
Certification: PCI CE Rohs Model Number: T90FO

Detail Information
Processor: 4 Core ARM Cortex-A53 OS: Android 7 Or Above
Screen: 5.5 Inch Touch Screen Fingerprint: Aratek, FBI Certified
Battery: 7.4V 5800mAh Printer: Thermal Printer Inbedded
Rear Camera: 8M Pixel Communication: 2G / 3G / 4G / Wifi, Bluetooth
Highlight:

5800mAh Rugged Pda Terminal

,

2.4GHz ISM Rugged Pda Terminal

,

Wireless POS Terminal TDS CDMA

Product Description

Handheld Wireless Rugged Pda Android With QR Code Barcode Scanner 4G LTE Wifi Thermal Printer

A Full Touch Screen Smart Mobile POS Terminal

WCT-T90FO employs high performance CPU and integrates payment, barcode scanner, and high-speed printer in one body. Large volume battery design makes the performance more excellence.



FAQ

1. Q: What kind of brand promotion do you have?

A: Official website, Wechat, Linkedin, Twitter and Facebook. Also, there are more than ten annual exhibitions at home and abroad.



2. Q: How do you control quality?
A: We are a company with ISO9001:2015 international QMS certification. Our products have obtained CCC, CE, FCC, RoHS, KC, SAA, BIS, BSMI certifications.



3. Q: What are your product command?
A:Thermal printer compatible with ESCPOS. Label printer compatible with TSPL EPL DPL ZPL emulation.



4. Q: What about the Warranty?
We provide one year warranty for main device as well as 24 hours online service to help you out.



5. Q: Are you manufacturer?
Yes.Our company headquarters is located in Nanjing of China, factory in shenzhen.
Can you provide application software for the hardware?







WCT-T90FO Android POS Configuration
Type Product Spec
Platform Processor MTK MT8735 ( 4-Core ARM Cortex-A53,1.3GHz )
RAM 1GB / 2GB LPDDR3
FLASH 8GB / 16GB EMMC, TF Card Supported
OS Android 7.0 Security Payment OS
Security Processor MAXIM MAX32555 (DeepCover Secure microcontroller)
Wireless Wireless Standard LTE-FDD/TDD-LTE/TDS-CDMA/WCDMA/CDMA2000/EDGE/GPRS
4G LTE-FDD : B1/B3/B8 (TBD)
TDD-LTE : B38/B39/B40/B41
3G UMTS/HSPA/HSPA+/DC-HSPA+ : B1/B8
TDS-CDMA : B34/B39
EVDO : BC0
2G EDGE/GPRS : B3/B8
WLAN 2.4GHz ISM 2402MHz~2482MHz
BT 4.1 LE 2.4GHz ISM 2402MHz~2480MHz
USIM Card Slots 4 PSAM slots, 2 SIM slots
GPS GPS GPS, GLONASS
LCD and Touch Panel LCD Pixels 720*1280 IPS
LCD 5.5 inch
Touch Panel G+F+F, Capacitive Color Touch,Multi Touch, signature capable, video capable
Keypad Physical key Power ON/OFF, Volumn up, Volumn down.
Virtual Keypad Home Key, Function key, Numeric Keys.
Audio Speaker 1 W x 1
Microphone Voice input
USB USB Standard USB Type C 2.0
Other Charge Battery, OTG support
Camera REAR 8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video.
FRONT NA
NFC Standard ISO14443 type A/B ( ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support )
Spectrum 13.56MHz
IC card Contactless Card NFC 13.56 MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC 14443&7816
EMV card Smart Card EMV & PBOC Compliant
MSR Magnetic Card ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec.
Battery Battery type Li-ion polymer battery
Capacity 3.7V, 5800mAh
Charger 5V/2A
Certification ICC EMV contact L1 / PBCO L1
EMV contact L2 / PBOC L2
NFC EMV contactless L1 / qPBOC L1
EMV contactless L2 / qPBOC L2
Security PCI 5.0
UPTS 2.0
Operating environment Temperature -5 to +50 °C
Relative humidity 10 % to 85 % RH
Storage environment Temperature -10 to +60 °C
Relative humidity 10 % to 90 % RH
Size and Weigt Dimension and Weight 210mm*85mm*53mm, 480g with battery
Micro Printer Printing method Thermal-line dot method
Paper Thermal roll paper (standard) 57*40 mm
Effective Printing area 48mm
Speed Maximum 70mm/sec(480 dot line/sec)
Printing resolutions 8 dots/mm
Character 12*24dots and 24*48 dots
Number of columns 32columns/line
Printing head life Pulse resistance:100 million pulses/dot (under our standard conditions);
Abrasion resistance: paper traveling distance 50km (print ratio:25% or less)
