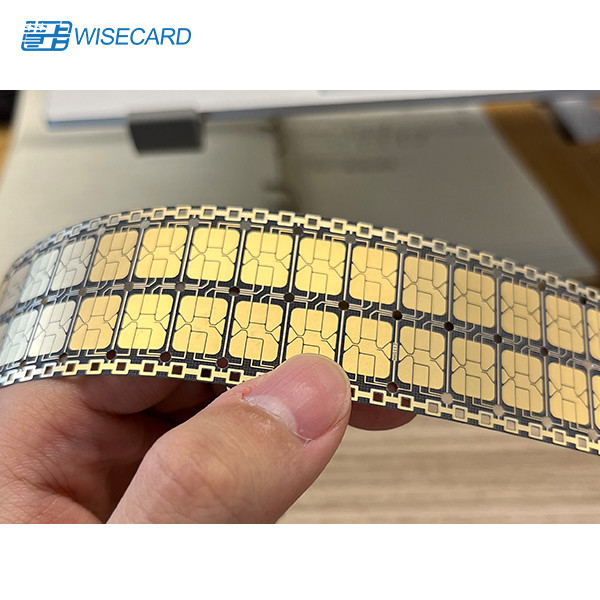

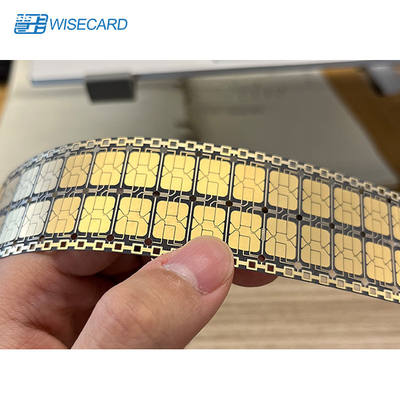

152KB Memory EMV Chip 72MHZ Main Frequency 32 Bit CPU Debit Card Chip

Product Details

Place of Origin: China

Brand Name: Wisecard Technology

Certification: ISO14443,7816

Model Number: CIU9872B

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: 200pcs/box, 10boxes/carton; For standard size card or customized boxes or cartons as required.

Delivery Time: 7 week days

Payment Terms: T/T

Supply Ability: 100,000 pcs per week

Get Best Price
Contact Now
Specifications
Highlight:

152KB Memory EMV Chip

,

32 Bit EMV Chip

,

Mastercard debit card chip

CPU:
32 Bit
Main Frequency:
72MHZ
Timer:
2 * 16/32bit Timer
EEPROM:
152KB
Interface 7816:
Comply With ISO/IEC 7816 T=0/1 Standard; Supports Up To 446400bps
Interface 14443:
Comply With ISO/IEC 14443 TYPE A Standard
Interface I2C:
Supports Master-slave Mode, Support 400KHZ
Interface GPIO:
2
CPU:
32 Bit
Main Frequency:
72MHZ
Timer:
2 * 16/32bit Timer
EEPROM:
152KB
Interface 7816:
Comply With ISO/IEC 7816 T=0/1 Standard; Supports Up To 446400bps
Interface 14443:
Comply With ISO/IEC 14443 TYPE A Standard
Interface I2C:
Supports Master-slave Mode, Support 400KHZ
Interface GPIO:
2
Description
152KB Memory EMV Chip 72MHZ Main Frequency 32 Bit CPU Debit Card Chip

WCT Duo-Surface 32-Bit EMV Chip CIU9872B_01 Plus Chip

Product Description:

EMV is a payment method based upon a technical standard for smart payment cards and for payment terminals and automated teller machines which can accept them. EMV originally stood for "Europay, Mastercard, and Visa", the three companies that created the standard. CIU9872B_01 Plus chip uses 32-bit secure CPU core and EEPROM memory, supports hardware cryptographic algorithms (DES/AES/ECC/RSA/SHA-n, SM1/SM2/SM3/SM4), supports multiple interfaces: 7816/14443/ I2C / GPIO, for financial applications.



Specification:

CPU Security Features
CPU 32 bit Security algorithm supports DES/3DES/AES
Main frequency 72MHZ supports SM1/SM4/SM3
Timer 2 * 16/32bit Timer supports RSA/ECC/SM2
    Random
number
Supports true random number, in line
with AIS31-P2 standard
Memory Memory Supports memory security protection
mechanism
EEPROM 152KB Sensor Supports multiple safety sensor
detection
Erasing and writing
≥ 500,000 times
Active shield support
Data storage time
≥ 25 years
Unique serial
number
The unique serial number of the chip
cannot be changed
    Self-check
function
Support self-check safety reset

Interfaces   Package Form
7816 Comply with ISO/IEC 7816
T=0/1 standard
Module
Package
Dual interface
Supports up to 446400bps 6PIN Silver/Gold
14443 Comply with ISO/IEC 14443
TYPE A standard
Applications
Supports up to 848Kbit/s EMV standard payment
I2C Supports master-slave mode,
support 400KHZ
1)Supports VISA(VSDC2.8.1g1)+ Mastercard
(MChip Advance 1.2.3)Dual APP
GPIO 2
Electrical Characteristics
Operating
Voltage
1.6V~5.5V 2)Supports Mastercard(MChip Advance 1.2.3)
Operating
temperature
-25℃~85℃
ESD 7816interface 6KV(HBM)
14443interface 4KV(HBM)



Service:

1. QC: Every single card will be carefully checked by machine or manual work before dispatched.

2. Accept personalized customization.

3. Strict quantity control on processing.

4. On time delivery.

5. Quality assurance: 1year warranty after delivery.

6. Quick response: Your inquiry will be replied in 24 hours.





FAQ:

Q:How long is the warranty time for your products?

A: Our officially promised warranty time is one whole year after delivery at best.



Q: Do you have your own enclosure factory?

A:Yes we do have our own enclosure factory, and we have the best structural Engineer, we hope to provide you with best screen and shape, so OEM is also welcome.



Q:Do you give any discount ?

A: We are Manufacturer, so we are able to give you the best price and best service at the same time.



Q: Is your company a real manufacturer?

A: Our company is the professional manufacturer in Shenzhen, you are the mostly welcomed to visit our factory anytime.
