Dual Interface 6PIN Silver / Gold EMV Standard Payment Chip 32bit CPU Core EEPROM Memory

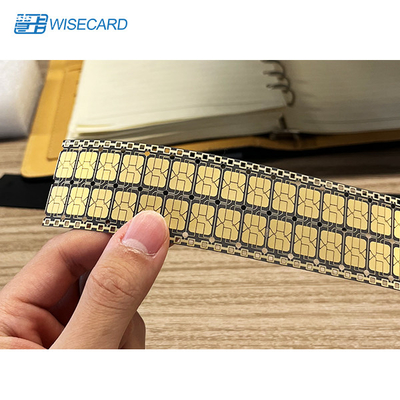

Large Image : Dual Interface 6PIN Silver / Gold EMV Standard Payment Chip 32bit CPU Core EEPROM Memory

Product Details:

Place of Origin:	China
Brand Name:	Wisecard Technology
Certification:	ISO14443,7816
Model Number:	CIU9872B

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	200pcs/box, 10boxes/carton; For standard size card or customized boxes or cartons as required.
Delivery Time:	7 week days
Payment Terms:	T/T
Supply Ability:	100,000 pcs per week

Contact Now

Detailed Product Description

CPU:	32 Bit	Main Frequency:	72MHZ
Timer:	2 * 16/32bit Timer	EEPROM:	152KB
Interface 7816:	Comply With ISO/IEC 7816 T=0/1 Standard; Supports Up To 446400bps	Interface 14443:	Comply With ISO/IEC 14443 TYPE A Standard
Interface I2C:	Supports Master-slave Mode, Support 400KHZ	Interface GPIO:	2
Highlight:	6PIN EMV standard payment Chip , EEPROM Memory EMV standard payment Chip

Dual interface 6PIN Silver/Gold EMV standard payment Chip

Product Description:

Payment cards which comply with the EMV standard are often called chip and PIN or chip and signature cards, depending on the authentication methods employed by the card issuer, such as a personal identification number (PIN) or digital signature. CIU9872B_01 Plus chip uses 32-bit secure CPU core and EEPROM memory, supports hardware cryptographic algorithms (DES/AES/ECC/RSA/SHA-n, SM1/SM2/SM3/SM4), supports multiple interfaces: 7816/14443/ I2C / GPIO, for financial applications.

Specification:

CPU		Security Features
CPU	32 bit	Security algorithm	supports DES/3DES/AES
Main frequency	72MHZ		supports SM1/SM4/SM3
Timer	2 * 16/32bit Timer		supports RSA/ECC/SM2
		Random number	Supports true random number, in line with AIS31-P2 standard
Memory		Memory	Supports memory security protection mechanism
EEPROM	152KB	Sensor	Supports multiple safety sensor detection
	Erasing and writing ≥ 500,000 times	Active shield	support
	Data storage time ≥ 25 years	Unique serial number	The unique serial number of the chip cannot be changed
		Self-check function	Support self-check safety reset

Interfaces		Package Form
7816	Comply with ISO/IEC 7816 T=0/1 standard	Module Package	Dual interface
7816	Supports up to 446400bps	Module Package	6PIN Silver/Gold
14443	Comply with ISO/IEC 14443 TYPE A standard	Applications
14443	Supports up to 848Kbit/s	EMV standard payment
I2C	Supports master-slave mode, support 400KHZ	1)Supports VISA(VSDC2.8.1g1)+ Mastercard (MChip Advance 1.2.3)Dual APP
GPIO	2
Electrical Characteristics
Operating Voltage	1.6V～5.5V	2)Supports Mastercard(MChip Advance 1.2.3)
Operating temperature	-25℃~85℃
ESD	7816interface 6KV(HBM)
ESD	14443interface 4KV(HBM)

Service:

1. QC: Every single card will be carefully checked by machine or manual work before dispatched.

2. Accept personalized customization.

3. Strict quantity control on processing.

4. On time delivery.

5. Quality assurance: 1year warranty after delivery.

6. Quick response: Your inquiry will be replied in 24 hours.

Trade conditions

1. Payment Terms: T/T LC, Western Union, Money Gram, Paypal, etc...

2. Sample Lead Time: 2-4days when there is stockand57ays for custom design or logo adding.

3. Mass Production Lead Time: 20-25days, and 30-35days for custom design.

4. Shipping Port: Shenzhen, China. We can manage shipment from the beginning to the end for you.

5.Door to door service: We have good channels by DHL/UPS/FEDEX/TNT as options for you.

Dual Interface 6PIN Silver / Gold EMV Standard Payment Chip 32bit CPU Core EEPROM Memory 0
