Dual Interface ATM Card EMV Chip 32Bit Secure CPU EEPROM Memory

Contact Now

Dual Interface ATM Card EMV Chip 32Bit Secure CPU EEPROM Memory

Minimum Order Quantity :	Negotiable	Price :	Negotiable
Packaging Details :	200pcs/box, 10boxes/carton; For standard size card or customized boxes or cartons as required.	Delivery Time :	7 week days
Payment Terms :	T/T	Supply Ability :	100,000 pcs per week

Place of Origin:	China	Brand Name:	Wisecard Technology
Certification:	ISO14443,7816	Model Number:	CIU9872B

Detail Information
CPU:	32 Bit	Main Frequency:	72MHZ
Timer:	2 * 16/32bit Timer	EEPROM:	152KB
Interface 7816:	Comply With ISO/IEC 7816 T=0/1 Standard; Supports Up To 446400bps	Interface 14443:	Comply With ISO/IEC 14443 TYPE A Standard
Interface I2C:	Supports Master-slave Mode, Support 400KHZ	Interface GPIO:	2
Highlight:	EEPROM Memory atm card emv chip , Dual interface atm card emv chip

Product Description

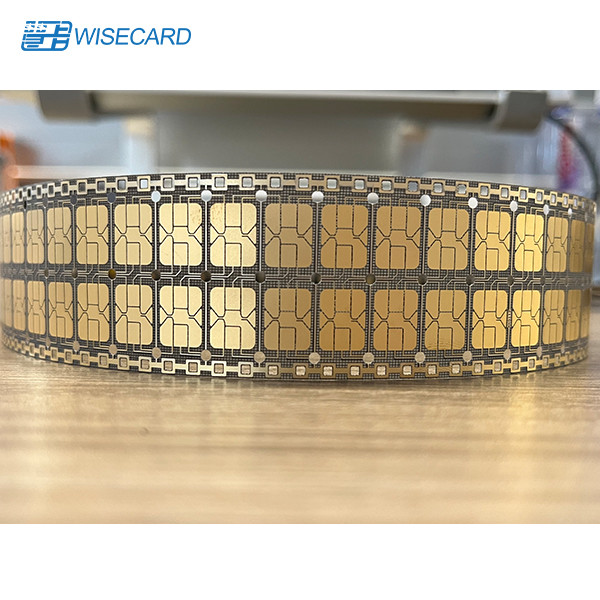

**10.62*8.0mm 32-Bit Secure CPU EEPROM Memory EMV Chip**

Product Description:

CIU9872B_01 Plus chip uses 32-bit secure CPU core and EEPROM memory, supports hardware cryptographic algorithms (DES/AES/ECC/RSA/SHA-n, SM1/SM2/SM3/SM4), supports multiple interfaces: 7816/14443/ I2C / GPIO, for financial applications.

There are two major benefits to moving to smart-card-based credit card payment systems: improved security (with associated fraud reduction), and the possibility for finer control of "offline" credit-card transaction approvals. One of the original goals of EMV was to provide for multiple applications on a card: for a credit and debit card application or an e-purse. New issue debit cards in the US contain two applications — a card association (Visa, Mastercard etc.) application, and a common debit application. The common debit application ID is somewhat of a misnomer as each "common" debit application actually uses the resident card association application.

Specification:

CPU		Security Features
CPU	32 bit	Security algorithm	supports DES/3DES/AES
Main frequency	72MHZ		supports SM1/SM4/SM3
Timer	2 * 16/32bit Timer		supports RSA/ECC/SM2
		Random number	Supports true random number, in line with AIS31-P2 standard
Memory		Memory	Supports memory security protection mechanism
EEPROM	152KB	Sensor	Supports multiple safety sensor detection
	Erasing and writing ≥ 500,000 times	Active shield	support
	Data storage time ≥ 25 years	Unique serial number	The unique serial number of the chip cannot be changed
		Self-check function	Support self-check safety reset

Interfaces		Package Form
7816	Comply with ISO/IEC 7816 T=0/1 standard	Module Package	Dual interface
7816	Supports up to 446400bps	Module Package	6PIN Silver/Gold
14443	Comply with ISO/IEC 14443 TYPE A standard	Applications
14443	Supports up to 848Kbit/s	EMV standard payment
I2C	Supports master-slave mode, support 400KHZ	1)Supports VISA(VSDC2.8.1g1)+ Mastercard (MChip Advance 1.2.3)Dual APP
GPIO	2
Electrical Characteristics
Operating Voltage	1.6V～5.5V	2)Supports Mastercard(MChip Advance 1.2.3)
Operating temperature	-25℃~85℃
ESD	7816interface 6KV(HBM)
ESD	14443interface 4KV(HBM)

Service:

1. QC: Every single card will be carefully checked by machine or manual work before dispatched.

2. Accept personalized customization.

3. Strict quantity control on processing.

4. On time delivery.

5. Quality assurance: 1year warranty after delivery.

6. Quick response: Your inquiry will be replied in 24 hours.

FAQ:

Q: Do you have the items in stock?
A: Yes,the item are large stock. We can send the goods out within 3 days after payment received. For the goods are out of stock, production time is about 7-10 days.

Q: Do your products support customized?
A: Yes, we provide OEM service.Our standard products can be branded according to your needs. The color tones, finishing, logo silkscreen can all be customized to give the products in line with your company image and style.

Q: What about minimum order quantity?
A: We have no limit for MOQ, 1 piece is available.

Q: hat about the Warranty?
A: We provide one year warranty for main device as well as 24 hours online service to help you out.
