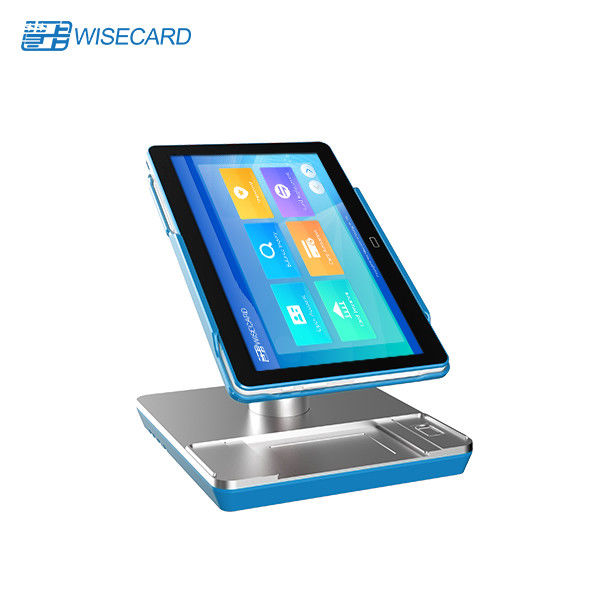

Android Cash Register Tablet NFC Reader for POS System Retail Payment Tablet POS
Smart Cash Register
intelligent operation terminal formobile payment and multiple e-commerce scenarios, O2O seamless docking
Multiple Channels Payment for Convenient Transactions
fully compatible with encryption magnetic card, smart card, IC card, NFC, BLE and other payment technology
Built-in Services
Support code scanning, membership card coupons, group pick-up,online booking, take-out orders and other e-commerce applications and back-end CRM system docking.
Support Desktop+ Handheld Application Scenarios
Together with the bracket for 360°horizontal and vertialrotation to interact with customers face to face; Theadapter board adopts the integrated socket design, the line is clear and neat, the tabletop is refreshing and pleasant.
Rich I/O Interface and Integrated Docking Station
The multifunction docking station has 5 U5B interfaces,which can connect to U5B devices directly for informationtransfer.THE SD card slot can extend storage space to meetincreasing storage requirements. With the 5 U5B interfaces,1 VGA and 1 LAN interface,Tl can be connected with thesecond screen, network, pin pad, cashbox, printer, key-board, mouse and other peripherals, achieving fast charging and data transfer.
| WCT-Tab Product Specifications |
| Item | Specification |
| Operation | Security OS, Android 5.1 |
| CPU | Quad-core, 1.2 GHz |
| Memory | 2GB DDR3, 16GB Flash Optional: 3+32GB |
| Display | 11.6 inch, Resolution: 1366*768 |
| Screen | High Sensitivity Capacitive Touch Screen |
| Camera | Front Camera: 5 Mega Pixel Auto Focus
Rear Camera: 5 Mega Pixel Auto Focus
Optional: Rear Camera: 8 Mega Pixel Auto Focus
Support High-speed Scanning Algorithm |
| Communication | 2G: GSM/EDGE 850/900/1800/1900 3G:WCDMA Band 1/2/5/8
4G: FDD Band 1/3/7; TDD Band: 38/39/40/41 |
| WIFI | Support 2.4G/5G, a/b/g/n |
| Bluetooth | BT 4.0+BLE |
| GPS | Support: GPS/A-GPS, GLONASS, BEIDOU |
| NFC | ISO/IEC 14443 Type A&B, Felica,ISO/IEC 14443&7816 |
| IC Card Reader | ISO/IEC 7816, Conform toEMV L1/L2 |
| Magnetic Card Reader | ISO/IEC 7816, Track 1/2/3, Bi-directional |
| PSAM | 1 PSAM Slots, ISO/IEC 7816 |
| Indicator | 4 Independent POS Indicators |
| Buzzer | Support |
| Memory Extension | Micro SD/TF, 64GB |
| USB Port | Micro USB, OTG Supported |
| SIM Card Slot | 1 SIM Card Mirco SIM Card |
| Audio | 1 Speaker, 1 Mircophone |
| Auxiliary Lamp | Support Red Light Position |
| Keys | Power Key, Physical Key,Volume Key; Touch Key: HOME Key |
| Battery & Power | 6900mAh, Input: 100-240V, 50/60 Hz 0.35A, Output: 9V/2000 mA |
| Weight | 880g (pad), 2297g (including bracket) |
| Optional Accessories | Cash Drawer, Barcode Scanner, Mobile Printer
USB Commercial Keyboard, Electronic Scale |
| Certifications | PCI PTS, EMV L1&L2, EMV Contactless L1
Visa Paywave, MasterCard Paypass, RoHS |
Applicable Industries:
★ Supermarket
★ Fresh Market
★ Restaurant Chain
★ Coffeehouse Chain
★ Franchise Store
★ Convenience Store
Terminal Data Management:
★ Manufactuer Name & Code
★ Serial Number
★ Installation Infomation
★ Firmware Type
★ Firmware Version
★ CID
★ CPUID
