Android 7.0 Biometric POS Terminal , Portable POS Machine With Printer Built In Battery
Contact Person : Steven Yao
Phone Number : +86-13424312532
WhatsApp : +8613424312532
|Minimum Order Quantity :||Negotiable||Price :||Negotiable|
|Packaging Details :||1 pc per box, 10 pc per carton||Delivery Time :||1-4 weeks|
|Payment Terms :||T/T||Supply Ability :||10000 Set/Sets per Month|
|Place of Origin:||China||Brand Name:||Wisecard|
|Certification:||PCI CE Rohs||Model Number:||S8|
|FingerPrint:||Optional||Security:||PCI 5.0 UPTS 2.0|
|Battery:||7.4V5800mAh||Printer:||Thermal Printer Inbedded|
|Camera:||5M Pixel||Communication:||2G / 3G / 4G /wifi, Bluetooth|
|CardReader:||Contactless, Contact, Magstripe||Battery Type:||Li-ion Polymer Battery|

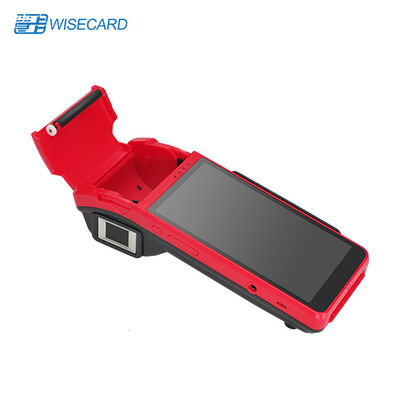

S8 android handheld POS machine,
NFC android handheld POS machine,
Biometric POS machine with fingerprint scanner
A Full Touch Screen Smart Mobile POS Terminal
WCT-S8 employs high performance CPU and integrates payment, barcode scanner, and high-speed printer in one body. Large volume battery design makes the performance more excellence.
WCT-S8 is an intelligent multimedia handheld POS terminals, it adopts the mainstream intelligent technology, uses 4G, 3G, 2G, WIFI, and other communication technology, the safest Android version 7.0. security chip meets with the requirement of the PCI, reaching the highest safety standards of international PCI5. X, which makes it the absolute secury financial payment smart POS terminal. It supports to swipe magnetic stripe card, read smart IC card and contactless IC card, QR code, etc, which is the flagship product in the field of financial payment.
|WCT-S8 Android POS Configuration|
|Platform||Processor||MTK MT8735 ( 4-Core ARM Cortex-A53,1.3GHz )|
|RAM||1GB / 2GB LPDDR3|
|FLASH||8GB / 16GB EMMC|
|OS||Android 7.0 Security Payment OS|
|Security Processor||MAXIM MAX32555 (DeepCover Secure microcontroller)|
|4G||LTE-FDD : B1/B3/B8 (TBD)|
|TDD-LTE : B38/B39/B40/B41|
|3G||UMTS/HSPA/HSPA+/DC-HSPA+ : B1/B8|
|TDS-CDMA : B34/B39|
|EVDO : BC0|
|2G||EDGE/GPRS : B3/B8|
|WLAN||2.4GHz ISM 2402MHz~2482MHz|
|BT 4.1 LE||2.4GHz ISM 2402MHz~2480MHz|
|USIM||Card Slots||4 PSAM slots, 2 SIM slots|
|LCD and Touch Panel||LCD Pixels||720*1280 IPS|
|Touch Panel||G+F+F, Capacitive Color Touch,Multi Touch, signature capable, video capable|
|Keypad||Physical key||Power ON/OFF, Volumn up, Volumn down.|
|Virtual Keypad||Home Key, Function key, Numeric Keys.|
|Audio||Speaker||1 W x 1|
|USB||USB Standard||USB Type C 2.0|
|Other||Charge Battery, OTG support|
|Camera||REAR||8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video.|
|FRONT||2Mega Pixels, CMOS, JPEG picture, Video.|
|NFC||Standard||ISO14443 type A/B ( ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support )|
|IC card||Contactless Card||NFC 13.56 MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC 14443&7816|
|EMV card||Smart Card||EMV & PBOC Compliant|
|MSR||Magnetic Card||ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec.|
|Battery||Battery type||Li-ion polymer battery|
|Certification||ICC||EMV contact L1 / PBCO L1|
|EMV contact L2 / PBOC L2|
|NFC||EMV contactless L1 / qPBOC L1|
|EMV contactless L2 / qPBOC L2|
|Operating environment||Temperature||-5 to +50 °C|
|Relative humidity||10 % to 85 % RH|
|Storage environment||Temperature||-10 to +60 °C|
|Relative humidity||10 % to 90 % RH|
|Size and Weigt||Dimension and Weight||203mm*85mm*53mm, 480g with battery|
|Micro Printer||Printing method||Thermal-line dot method|
|Paper||Thermal roll paper (standard) 57*40 mm|
|Effective Printing area||48mm|
|Speed||Maximum 70mm/sec(480 dot line/sec)|
|Printing resolutions||8 dots/mm|
|Character||12*24dots and 24*48 dots|
|Number of columns||32columns/line|
|Printing head life||Pulse resistance:100 million pulses/dot (under our standard conditions);|
|Abrasion resistance: paper traveling distance 50km (print ratio:25% or less)|
★ Android 7.0 OS and Quad-Core
The performance of WCT-S8 is higher than the general level on the market since it's powered by Android 7.0 system (also called Android Oreo) and a Quad-Core processor with 1GB DDR+8GB memory or 2GB + 16GB.
★ Smart Payments All In One Machine
WCT-S8 supports reading Contact Card, NFC card, IC card, QR-code, Dual interface card, magnetic card. So it can serve for contact and contactless payment, QR-code Payment, smart card payment. Support ISO14443 Type A/B, ISO/IEC 14443&7816, ISO18092 compliant.
★ High-speed Printer
The thermal Printer ensures clear readability 58mm printing with printing speed increased by 10%.
★ 5800mAH Large Battery Super Endurance
WCT-S8 comes with a massive 5800mAh battery. This means that you can operate it much longer and that you need to charge it only occasionally.
★ Multiple card slots, 4 PSAM and 2 SIM Slots
Multiple card slots for PSAM and SIM cards brings more options for security and connection.
★ Elastic Wrist Strap
Considering the need to move frequently, the elastic wrist strap design of the TPS320 can hold the product steadily and prevents falls.
★ More Options
Optional functions adapt to your actual needs, such as Fingerprint Reader, IC Card Reader, Charging Base, Fiscal Memory, and other accessories, etc.
WCT-S8 POS Machine can be used for payment in quite scenarios: Retail Stores; Mobile Charges; Retail Management; Parking Charges Supermarket; Utilities; Lotteries.
Portable Android POS terminal With Printer 1D/2D Barcode Scanner Packing list:
POS Thermal with Printer *1
