MSR IC NFC QR Code 5.5" Handheld Android POS Terminal

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Paper Box Delivery Time : 1-4 weeks
Payment Terms : T/T Supply Ability : 10000 units per month
Place of Origin: China Brand Name: Wisecard
Certification: CE Rohs Model Number: WCT-S6

Detail Information

WLAN: 2.4GHz ISM 2402MHz~2482MHz OS: Android 7 Or Above
VeinModule: High Speed 1:1, 1:N Screen: 5.5 Inch Touch Screen
CardReader: Contactless, Contact, Magstripe Standards: PCI EMV PBOC
Memory: 1KB AES Self-Encrypted NVSRAM Battery: 3.7V 5800mAh
Highlight:

5.5" handheld android POS terminal

,

Biometric handheld android POS terminal

,

MSR handheld payment device

Product Description

Hot Sale Maquina Registradora MSR/IC/NFC Qr Code Fingerprint Biometric Handheld Android POS Terminal:

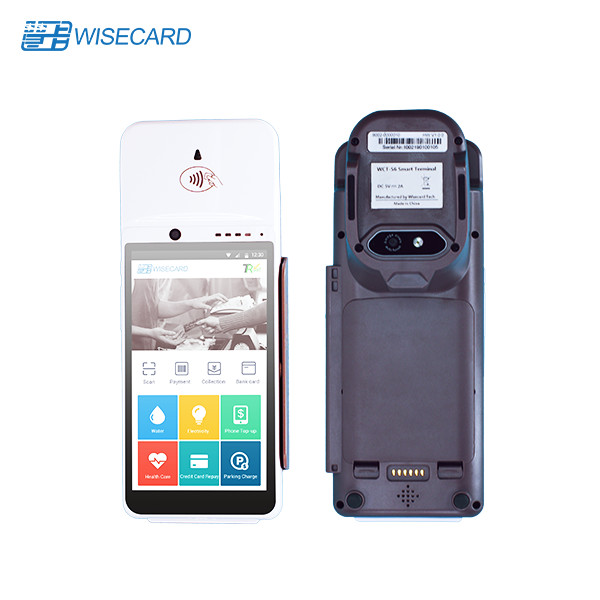

WCT-S6 is a four core Android OS smart POS terminal with differentiating security method of latest finger vein module which makes it bring you highest security level.



WCT-S6 is a powerful terminal with ID, vein and facial recognition modules, which enables us to integrate with Security Access, ID verification, MOC purpose. This terminal is targeted to verification and payment industry.



WCT-S6 is also embedded with secure element to be able to pass EMV and PCI certification. With fully loaded comm module and various verification options, it can meet various purposes and scenarios for verification and transactions. This terminal is equipped with Android 7.0 and delicate touch display to maximize the customer experience and provide more colorful application features beyond your expectation!





WCT-T60 Android POS Configuration:
Type Product Specification:
Platform Application Processor MT8735 ( 4-Core ARM Cortex-A53,1.3GHz )
RAM 2GB LPDDR3
FLASH 16GB EMMC
OS Android 7.0
Security Processor MAX32555 (DeepCover Secure microcontroller)
MEMORY 60MHz Core Operating Frequency
512KB Dual-Bank Flash Memory with Cache
96KB System SRAM
1KB AES Self-Encrypted NVSRAM
256-Bit Flip-Flop-Based Battery-Backup AES Key Storage
Wireless Wireless Standard LTE-FDD/TDD-LTE/UMTS/HSPA/HSPA+/DC-HSPA+/EVDO/TDS-CDMA/EDGE/GPRS
4G LTE-FDD : B1/B3/B8 (TBD)
TDD-LTE : B38/B39/B40/B41
3G UMTS/HSPA/HSPA+/DC-HSPA+ : B1/B8
TDS-CDMA : B34/B39
EVDO : BC0
2G EDGE/GPRS : B3/B8
WLAN 2.4GHz ISM 2402MHz~2482MHz
BT 4.1 LE 2.4GHz ISM 2402MHz~2480MHz
USIM USIM 2 slots
GPS GPS GPS, GLONASS
Verification Verification Finger Vein Biometric Verification Module
LCD and Touch Panel LCD Pixels 720*1280 IPS
LCD 5.5 inch
Touch Panel G+F+F, Capacitive,Multi Touch.
Keypad Physical key Power ON/OFF, Volumn up, Volumn down.
Virtual Keypad Home Key, Function key, Numeric Keys.
Audio Speaker 1 W x 1
Microphone Voice input
USB USB Standard USB Type C 2.0
Other Charge Battery, OTG support
Serial Port RS232 POGO PIN ON REAR CASE
Camera REAR 8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video.
FRONT 2Mega Pixels, CMOS, JPEG picture, Video.
NFC Standard ISO14443 type A/B ( ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support )
Spectrum 13.56MHz
IC card Standard ISO 7816 (1.8V / 3V / 5V T=0, T=1.)
PSAM card PSAM 4 slots ( compliant with ISO7816 )
MSR Standard ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec.
Battery Battery type Li-ion polymer battery
Capacity 3.7V, 5800mAh
Charger 5V/2A
Backup battery coin battery CR2032
LED indicator Status Triple color LED ( RED/GREEN/Orange)
NFC indicator blue/yellow/green/red
Certification ICC EMV contact L1 / PBCO L1
EMV contact L2 / PBOC L2
NFC EMV contactless L1 / qPBOC L1
EMV contactless L2 / qPBOC L2
Security PCI 5.0
UPTS 2.0
Operating environment Temperature -5 to +50 °C
Relative humidity 10 % to 85 % RH
Storage environment Temperature -10 to +60 °C
Relative humidity 10 % to 90 % RH



Advantage:

WCT-S6 Android airtime Biometric POS with printer, android 7.0 operating system, 5.5 inch screen touch, super long standby battery capacity is 5800 mAh, thermal paper printing, 5 million pixels camera, 2g / 3g/ 4g /wifi, bluetooth communication, this fine workmanship and top quality machine is the best choice in the market.



FAQ:

1.Are you a manufacturer?

Yes, of course. We are professional manufacturer with more than 8 years manufacturing experience.

2. Can you list your main products?

Products: Cash register; all in one touch Pos terminals; smart card; JAVA card applet; card management system; barcode scanner and power adapter.

3. What about the minimum order quantity?

Our MOQ is 1 sets.

4.Is sample order available? Are they free?

Yes, trial order or sample order is welcome, but sample fee is not for free.

5.Can I customize my product according to my configuration or specification?

Yes, we provide OEM service and customers can customize products according to thier drawing or specification.

6.Whether the price is reasonable and competitive?

Our quotation is factory direct price.

7.How long will be the warranty?

1 year warranty.

MSR IC NFC QR Code 5.5" Handheld Android POS Terminal 0



MSR IC NFC QR Code 5.5" Handheld Android POS Terminal 1

Company Information:

Wisecard (a WiseGroup company) is a global solution provider that has been providing innovative payment and secure solutions to financial institutions, government entities and telco operators worldwide.



Wisecard have been providing EMV smart card, EMV biometric card, EMV perso software, card issuance, EMV embossers, Smart POS machine, Android POS, POS terminals, smart banking, smart teller machine, kiosk, vending machine, biometric POS, Hardware Secure Module, mobile payment platform, private label card solution, prepaid card solution, card management system to partners in more than 60 countries worldwide. Wisecard’s product suite empower large global financial institutions and government sectors as well as small to medium sized retail banks.



Wisecard solutions are adapting to the highest and latest secure standard, and the solutions have been fully tested and certified by international test labs, like FBI, STQC, EMV, PCI DSS, PA DSS, VISA, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay and etc.



Notes: FBI, STQC, EMV, PCIDSS, PADSS, Visa, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay is a registered trademark. All trademarks referenced here are the property of the respective owners.
