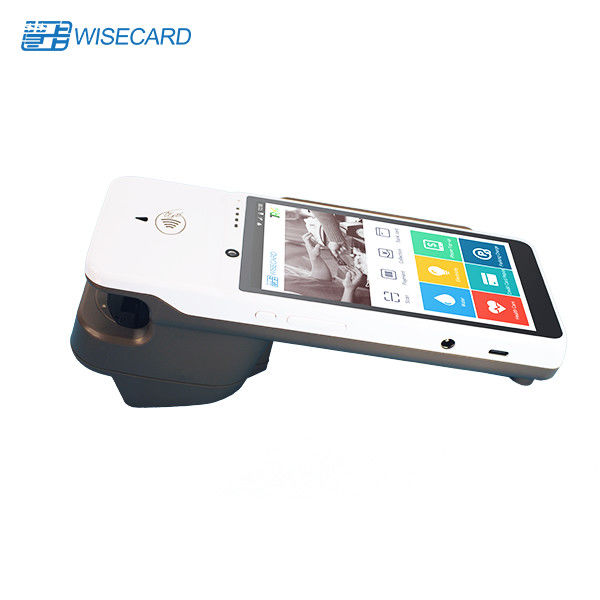

3G 4G WIFI Smart Biometric POS Terminal With Fingerprint Reader

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Paper Box Delivery Time : 1-4 weeks
Payment Terms : T/T Supply Ability : 10000 units per month
Place of Origin: China Brand Name: Wisecard
Certification: CE Rohs Model Number: WCT-S6

Detail Information

CUP: 4 Core Processor OS: Android 7 Or Above
4G LTE-FDD: B1/B3/B8 (TBD) TDD-LTE : B38/B39/B40/B41 Screen: 5.5 Inch Touch Screen
Memory: 256-Bit Flip-Flop-Based Battery-Backup AES Key Storage Standards: PCI EMV PBOC
Communication: 2G / 3G / 4G /wifi, Bluetooth Full Touch Operation: 5.5’ Touch Display; Signature Capture; Fully Video Capable; Optimized Forvalue-added Services
High Light:

4G Biometric POS Terminal

,

WIFI Biometric POS Terminal

,

Biometric smart POS machine

Product Description

3G/4G/WIFI Smart Payment Portable Biometric Terminal POS With Fingerprint Reader:

Android fingerprint handheld terminal with built-in thermal biometric printer. Android version is newest and stable 7.0, 2 SIM Cards slots support to be sure fully have network, no matter in which Area. All kinds of Barcode Scanner format support standard function. Wireless charge be convenient to operate while charging. The Thermal biometric printer is 58mm and the speed is 80mm/s.





WCT-S6 is a four core Android OS smart POS terminal with differentiating security method of latest finger vein module which makes it bring you highest security level.



WCT-S6 is a powerful terminal with ID, vein and facial recognition modules, which enables us to integrate with Security Access, ID verification, MOC purpose. This terminal is targeted to verification and payment industry.



WCT-S6 is also embedded with secure element to be able to pass EMV and PCI certification. With fully loaded comm module and various verification options, it can meet various purposes and scenarios for verification and transactions. This terminal is equipped with Android 7.0 and delicate touch display to maximize the customer experience and provide more colorful application features beyond your expectation!





WCT-T60 Android POS Configuration:
Type Product Specification:
Platform Application Processor MT8735 ( 4-Core ARM Cortex-A53,1.3GHz )
RAM 2GB LPDDR3
FLASH 16GB EMMC
OS Android 7.0
Security Processor MAX32555 (DeepCover Secure microcontroller)
MEMORY 60MHz Core Operating Frequency
512KB Dual-Bank Flash Memory with Cache
96KB System SRAM
1KB AES Self-Encrypted NVSRAM
256-Bit Flip-Flop-Based Battery-Backup AES Key Storage
Wireless Wireless Standard LTE-FDD/TDD-LTE/UMTS/HSPA/HSPA+/DC-HSPA+/EVDO/TDS-CDMA/EDGE/GPRS
4G LTE-FDD : B1/B3/B8 (TBD)
TDD-LTE : B38/B39/B40/B41
3G UMTS/HSPA/HSPA+/DC-HSPA+ : B1/B8
TDS-CDMA : B34/B39
EVDO : BC0
2G EDGE/GPRS : B3/B8
WLAN 2.4GHz ISM 2402MHz~2482MHz
BT 4.1 LE 2.4GHz ISM 2402MHz~2480MHz
USIM USIM 2 slots
GPS GPS GPS, GLONASS
Verification Verification Finger Vein Biometric Verification Module
LCD and Touch Panel LCD Pixels 720*1280 IPS
LCD 5.5 inch
Touch Panel G+F+F, Capacitive,Multi Touch.
Keypad Physical key Power ON/OFF, Volumn up, Volumn down.
Virtual Keypad Home Key, Function key, Numeric Keys.
Audio Speaker 1 W x 1
Microphone Voice input
USB USB Standard USB Type C 2.0
Other Charge Battery, OTG support
Serial Port RS232 POGO PIN ON REAR CASE
Camera REAR 8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video.
FRONT 2Mega Pixels, CMOS, JPEG picture, Video.
NFC Standard ISO14443 type A/B ( ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support )
Spectrum 13.56MHz
IC card Standard ISO 7816 (1.8V / 3V / 5V T=0, T=1.)
PSAM card PSAM 4 slots ( compliant with ISO7816 )
MSR Standard ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec.
Battery Battery type Li-ion polymer battery
Capacity 3.7V, 5800mAh
Charger 5V/2A
Backup battery coin battery CR2032
LED indicator Status Triple color LED ( RED/GREEN/Orange)
NFC indicator blue/yellow/green/red
Certification ICC EMV contact L1 / PBCO L1
EMV contact L2 / PBOC L2
NFC EMV contactless L1 / qPBOC L1
EMV contactless L2 / qPBOC L2
Security PCI 5.0
UPTS 2.0
Operating environment Temperature -5 to +50 °C
Relative humidity 10 % to 85 % RH
Storage environment Temperature -10 to +60 °C
Relative humidity 10 % to 90 % RH



F&Q:

1. Do you have POS in stock? How long you can send out the goods?

Yes, we have. Normally, samples within 3 working days. Bulk qty about 7 days.

2. What is your warranty?
We offer 12-months warranty, lifelong maintenance service. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;

3.Can I get a sample for testing before formal order? How to get it?
Yes. Of course. We will arrange shipment for you as soon as we receive the payment.

4. Can you provide SDK?
Yes, SDK will be provided free to help you do the secondary development.

5. Do you offer other POS peripherals?
Yes,we offer One-stop POS products service, such as POS / Mobile / Kiosk / Panel Printer, Barcode Scanner, Smart / NFC / Magnetic Card Reader & Writer, POS Keyboard, Cash Drawer, Cash Register,Passport Reader, Check Scanner!

6.What payment methods your company accept?
We mainly accept Paypal, T/T, Western Union, MoneyGram, D/A, D/P, Visa; Master; E-checking; Trade Assurance; Credit Card;Cash.

7.What's the shipment terms and delivery time of your compay?
Well, they depends on the quantity of your order. As you know,we need time to manufacture the machines. But mostly ,the shipment time is 3-5 working days after delivery.
