4 Core Processor Biometric POS Terminal , Android Mobile POS Terminal

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Paper Box Delivery Time : 1-4 weeks
Payment Terms : T/T Supply Ability : 10000 units per month
Place of Origin: China Brand Name: Wisecard
Certification: CE Rohs Model Number: WCT-S6

Detail Information

CUP: 4 Core Processor OS: Android 7 Or Above
Serial Port: RS232 POGO PIN ON REAR CASE Storage Environment: Temperature -10 To +60 °C Relative Humidity 10 % To 90 % RH
CardReader: Contactless, Contact, Magstripe Standards: PCI EMV PBOC
ICC Certification: EMV Contact L1 / PBCO L1 EMV Contact L2 / PBOC L2 NFC Certification: EMV Contactless L1 / QPBOC L1 EMV Contactless L2 / QPBOC L2
High Light:

RS232 Biometric POS Terminal

,

PBOC Biometric POS Terminal

,

RS232 android mobile POS terminal

Product Description

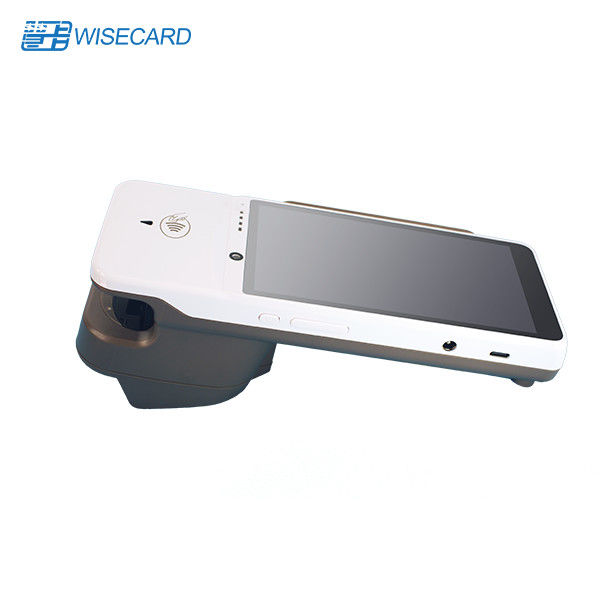

WCT High Quality Biometric Android 7.0 Mobile For Top-Up POS Device With Fingerprint Reader:



Android fingerprint handheld terminal with built-in thermal biometric printer. Android version is newest and stable 7.0, 2 SIM Cards slots support to be sure fully have network, no matter in which Area. All kinds of Barcode Scanner format support standard function. Wireless charge be convenient to operate while charging. The Thermal biometric printer is 58mm and the speed is 80mm/s.



WCT-S6 is also embedded with secure element to be able to pass EMV and PCI certification. With fully loaded comm module and various verification options, it can meet various purposes and scenarios for verification and transactions.





WCT-T60 Android POS Configuration:
Type Product Specification:
Platform Application Processor MT8735 ( 4-Core ARM Cortex-A53,1.3GHz )
RAM 2GB LPDDR3
FLASH 16GB EMMC
OS Android 7.0
Security Processor MAX32555 (DeepCover Secure microcontroller)
MEMORY 60MHz Core Operating Frequency
512KB Dual-Bank Flash Memory with Cache
96KB System SRAM
1KB AES Self-Encrypted NVSRAM
256-Bit Flip-Flop-Based Battery-Backup AES Key Storage
Wireless Wireless Standard LTE-FDD/TDD-LTE/UMTS/HSPA/HSPA+/DC-HSPA+/EVDO/TDS-CDMA/EDGE/GPRS
4G LTE-FDD : B1/B3/B8 (TBD)
TDD-LTE : B38/B39/B40/B41
3G UMTS/HSPA/HSPA+/DC-HSPA+ : B1/B8
TDS-CDMA : B34/B39
EVDO : BC0
2G EDGE/GPRS : B3/B8
WLAN 2.4GHz ISM 2402MHz~2482MHz
BT 4.1 LE 2.4GHz ISM 2402MHz~2480MHz
USIM USIM 2 slots
GPS GPS GPS, GLONASS
Verification Verification Finger Vein Biometric Verification Module
LCD and Touch Panel LCD Pixels 720*1280 IPS
LCD 5.5 inch
Touch Panel G+F+F, Capacitive,Multi Touch.
Keypad Physical key Power ON/OFF, Volumn up, Volumn down.
Virtual Keypad Home Key, Function key, Numeric Keys.
Audio Speaker 1 W x 1
Microphone Voice input
USB USB Standard USB Type C 2.0
Other Charge Battery, OTG support
Serial Port RS232 POGO PIN ON REAR CASE
Camera REAR 8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video.
FRONT 2Mega Pixels, CMOS, JPEG picture, Video.
NFC Standard ISO14443 type A/B ( ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support )
Spectrum 13.56MHz
IC card Standard ISO 7816 (1.8V / 3V / 5V T=0, T=1.)
PSAM card PSAM 4 slots ( compliant with ISO7816 )
MSR Standard ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec.
Battery Battery type Li-ion polymer battery
Capacity 3.7V, 5800mAh
Charger 5V/2A
Backup battery coin battery CR2032
LED indicator Status Triple color LED ( RED/GREEN/Orange)
NFC indicator blue/yellow/green/red
Certification ICC EMV contact L1 / PBCO L1
EMV contact L2 / PBOC L2
NFC EMV contactless L1 / qPBOC L1
EMV contactless L2 / qPBOC L2
Security PCI 5.0
UPTS 2.0
Operating environment Temperature -5 to +50 °C
Relative humidity 10 % to 85 % RH
Storage environment Temperature -10 to +60 °C
Relative humidity 10 % to 90 % RH





Function:

HIGH SECURITY
High Security Processor+4 Core Cortex-A53 Processor



VEIN MODULE
High Speed 1:1, 1:N Vein Module



COMMUNICATION
WiFi, Bluetooth, 3G, 4G, GPS



FULL TOUCH OPERATION
5.5' Touch Display
Signature Capture
Fully Vedio Capable
Optimized Forvalue-added Service



FAQ:

1. Do you have the products in stock?

Yes, most of the items are in stock. The goods will be shipped to you within 2-3 business days after payment received. For the

products out of stock, it will take around 5-7 working days to make shipment.



2. Do you supply other POS related items?

Yes, Wisecard is your 1 stop solution for Point of Sale System(Touch POS Terminal, Touch Screen Monitor, Thermal Receipt Printer,

Laser Barcode Scanner, Magnetic Card Reader, Customer Pole Display, other POS peripherals). We offer a professional service, and

custom design your Touch Screen POS System according to your requirements and budget.



3. How do I know if you ship out my order?

The tracking number (DHL, UPS, FedEx, TNT, EMS, etc.) or Air Waybill or Bill of Loading B/L by Sea will be sent to you as soon as

your goods are shipped out, we also follow up the delivery and keep you informed. The helpful after service is provided - We

support what we sell.



4. How much support do I get?

When you become a Wisecard customer, you get unlimited phone, Remote support by trained staff for any type of assistance,

consultation, or training. There is no any “per call” charge for support. We guarantee, We are responsible, and We stand behind

our products.



5. What’s your production capacity of POS system each month?

our POS production capacity is about 5000pcs per month.



6. How about your delivery time and payment term?

We will deliver goods within 5-15 working days after receipt of your payment. QTY Transportation Delivery time Payment < 100pcs

DHL 7 days 100% full payment by T/T



7. How about delivery time of sample order or trial order?

we can deliver 2 pcs of POS sample within 5 working days after receipt of your payment. Once you confirm the POS model you need,

we will draw a sample order on Alibaba and then you pay it through Alibaba platform.



8. Why pay on Acer?

To make sure it would increase our credit points if more customers pay through Acer platform.

To customer

100% Product quality protection

100% On-time shipment protection

100% Payment protection

4 Core Processor Biometric POS Terminal , Android Mobile POS Terminal 0





4 Core Processor Biometric POS Terminal , Android Mobile POS Terminal 1

Company Information:

Wisecard (a WiseGroup company) is a global solution provider that has been providing innovative payment and secure solutions to financial institutions, government entities and telco operators worldwide.



Wisecard have been providing EMV smart card, EMV biometric card, EMV perso software, card issuance, EMV embossers, Smart POS machine, Android POS, POS terminals, smart banking, smart teller machine, kiosk, vending machine, biometric POS, Hardware Secure Module, mobile payment platform, private label card solution, prepaid card solution, card management system to partners in more than 60 countries worldwide. Wisecard’s product suite empower large global financial institutions and government sectors as well as small to medium sized retail banks.



Wisecard solutions are adapting to the highest and latest secure standard, and the solutions have been fully tested and certified by international test labs, like FBI, STQC, EMV, PCI DSS, PA DSS, VISA, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay and etc.



Notes: FBI, STQC, EMV, PCIDSS, PADSS, Visa, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay is a registered trademark. All trademarks referenced here are the property of the respective owners.
