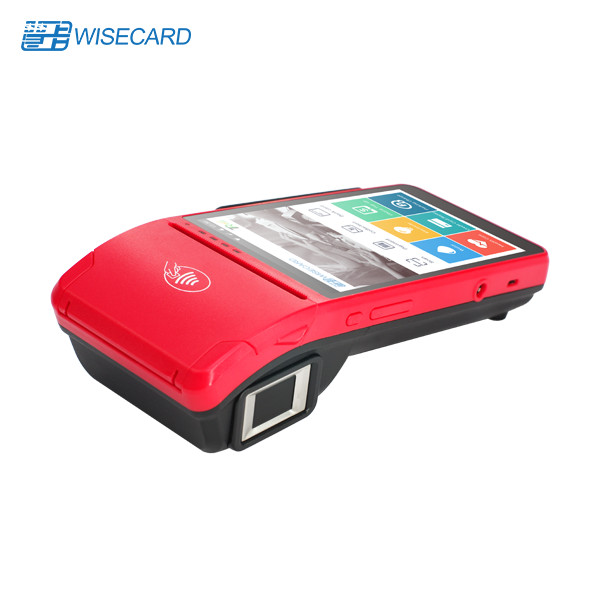

Android 7.0 Biometric POS Terminal , Portable POS Machine With Printer Built In Battery
Contact Person : Steven Yao
Phone Number : +86-13424312532
WhatsApp : +8613424312532
| Minimum Order Quantity : | Negotiable | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | 1 pc per box, 10 pc per carton | Delivery Time : | 1-4 weeks |
| Payment Terms : | T/T | Supply Ability : | 10000 Set/Sets per Month |
| Place of Origin: | China | Brand Name: | Wisecard |
|---|---|---|---|
| Certification: | PCI CE Rohs | Model Number: | S8 |
|
Detail Information |
|||
| Processor: | 4 Core ARM Cortex-A53 | Screen: | 5.5 Inch Touch Screen |
|---|---|---|---|
| Battery: | 7.4V 5800mAh | Printer: | Thermal Printer Inbedded |
| Camera: | 5M Pixel | Communication: | 2G / 3G / 4G /wifi, Bluetooth |
| CardReader: | Contactless, Contact, Magstripe | Color: | Red |
| High Light: | WCT Mobile Card Payment Device,5.5in Mobile Card Payment Device,S8 handheld card payment machine |
||
Product Description
Introduction:
A Full Touch Screen Smart Mobile POS Terminal
WCT-S8 employs high performance CPU and integrates payment, barcode scanner, and high-speed printer in one body. Large volume battery design makes the performance more excellence.
Features:
1. Creative Original Design.
2. Arc design with shell process that conforms to ergonomics, easier to hold with one hand, more modern & more fashionable.
3. 5.5 inch capacitive screen, less than 1kg, mainstream size of market mobile devices.
4. With built-in 58mm thermal printer, 70mm/s printing speed, 50km print head span, About 5000 times continuous flip.
5. Built-in battery 5800mAh. work continuously for 25 hours, dark screen standby time of above 18 days, 5500 order printing jobs.
6. 1G RAM+8G (2G+16G) Flash can support 3G, 4G, WiFi, Bluetooth, NFC.
7. 1D bar-code or 2D QR Code quick reading.
| WCT-S8 Android POS Configuration | ||
| Type | Product Spec | |
| Platform | Processor | MTK MT8735 ( 4-Core ARM Cortex-A53,1.3GHz ) |
| RAM | 1GB / 2GB LPDDR3 | |
| FLASH | 8GB / 16GB EMMC | |
| OS | Android 7.0 Security Payment OS | |
| Security Processor | MAXIM MAX32555 (DeepCover Secure microcontroller) | |
| Wireless | Wireless Standard | LTE-FDD/TDD-LTE/TDS-CDMA/WCDMA/CDMA2000/EDGE/GPRS |
| 4G | LTE-FDD : B1/B3/B8 (TBD) | |
| TDD-LTE : B38/B39/B40/B41 | ||
| 3G | UMTS/HSPA/HSPA+/DC-HSPA+ : B1/B8 | |
| TDS-CDMA : B34/B39 | ||
| EVDO : BC0 | ||
| 2G | EDGE/GPRS : B3/B8 | |
| WLAN | 2.4GHz ISM 2402MHz~2482MHz | |
| BT 4.1 LE | 2.4GHz ISM 2402MHz~2480MHz | |
| USIM | Card Slots | 4 PSAM slots, 2 SIM slots |
| GPS | GPS | GPS, GLONASS |
| LCD and Touch Panel | LCD Pixels | 720*1280 IPS |
| LCD | 5.5 inch | |
| Touch Panel | G+F+F, Capacitive Color Touch,Multi Touch, signature capable, video capable | |
| Keypad | Physical key | Power ON/OFF, Volumn up, Volumn down. |
| Virtual Keypad | Home Key, Function key, Numeric Keys. | |
| Audio | Speaker | 1 W x 1 |
| Microphone | Voice input | |
| USB | USB Standard | USB Type C 2.0 |
| Other | Charge Battery, OTG support | |
| Camera | REAR | 8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video. |
| FRONT | 2Mega Pixels, CMOS, JPEG picture, Video. | |
| NFC | Standard | ISO14443 type A/B ( ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support ) |
| Spectrum | 13.56MHz | |
| IC card | Contactless Card | NFC 13.56 MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC 14443&7816 |
| EMV card | Smart Card | EMV & PBOC Compliant |
| MSR | Magnetic Card | ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec. |
| Battery | Battery type | Li-ion polymer battery |
| Capacity | 3.7V, 5800mAh | |
| Charger | 5V/2A | |
| Certification | ICC | EMV contact L1 / PBCO L1 |
| EMV contact L2 / PBOC L2 | ||
| NFC | EMV contactless L1 / qPBOC L1 | |
| EMV contactless L2 / qPBOC L2 | ||
| Security | PCI 5.0 | |
| UPTS 2.0 | ||
| Operating environment | Temperature | -5 to +50 °C |
| Relative humidity | 10 % to 85 % RH | |
| Storage environment | Temperature | -10 to +60 °C |
| Relative humidity | 10 % to 90 % RH | |
| Size and Weigt | Dimension and Weight | 203mm*85mm*53mm, 480g with battery |
| Micro Printer | Printing method | Thermal-line dot method |
| Paper | Thermal roll paper (standard) 57*40 mm | |
| Effective Printing area | 48mm | |
| Speed | Maximum 70mm/sec(480 dot line/sec) | |
| Printing resolutions | 8 dots/mm | |
| Character | 12*24dots and 24*48 dots | |
| Number of columns | 32columns/line | |
| Printing head life | Pulse resistance:100 million pulses/dot (under our standard conditions); | |
| Abrasion resistance: paper traveling distance 50km (print ratio:25% or less) | ||
1. Q: What kind of brand promotion do you have?
A: Official website, Wechat, Linkedin, Twitter,Google and Facebook. Also, there are more than ten annual exhibitions at home and abroad.
2. Q: How do you control quality?
A: We are a company with ISO9001:2015 international QMS certification. Our products have obtained CCC, CE, FCC, RoHS, KC, SAA, BIS, BSMI certifications.
3.Q: What is your product command?
A: Thermal printer compatible with ESCPOS. Label printer compatible with TSPL EPL DPL ZPL emulation.
4.Q: What’s your leading time?
A: For less than 1000pcs, 7-10 working days. For more than 1000pcs, 10-15 working days.
5.Q: What's your delivery terms?
A: Delivery terms can be EX-WORKS, FOB or C&F.
6.Q: If the goods are damaged, what can we do?
A: 1% FOC parts dispatched with shipment. When it is damaged, you can replace it directly.
7.Q: What is printer defective rate?
A: Less than 0.3%
8.Q: What is the Warranty for your printers?
A: We support 12 months for all of our products.
Company Information:
Wisecard (a WiseGroup company) is a global solution provider that has been providing innovative payment and secure solutions to financial institutions, government entities and telco operators worldwide.
Wisecard have been providing EMV smart card, EMV biometric card, EMV perso software, card issuance, EMV embossers, POS terminals, smart banking, smart teller machine, kiosk, vending machine, biometric POS, Hardware Secure Module, mobile payment platform, private label card solution, prepaid card solution, card management system to partners in more than 60 countries worldwide. Wisecard’s product suite empower large global financial institutions and government sectors as well as small to medium sized retail banks.
Wisecard solutions are adapting to the highest and latest secure standard, and the solutions have been fully tested and certified by international test labs, like FBI, STQC, EMV, PCI DSS, PA DSS, VISA, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay and etc.
Notes: FBI, STQC, EMV, PCIDSS, PADSS, Visa, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay is a registered trademark. All trademarks referenced here are the property of the respective owners.
