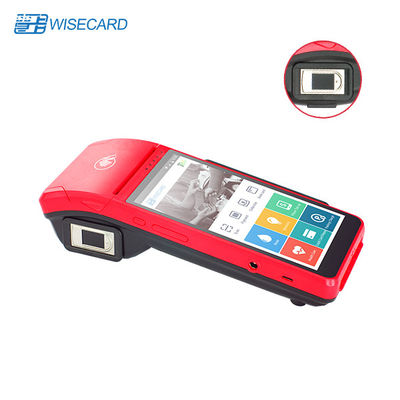

Fingerprint Reader Android POS Machine Touch Screen Smart POS Terminal
WCT-S8 Android smart POS with printer and fingerprint collectin module(optional) , android 7 operating system, this fine workmanship and top quality machine is the best choice on the market.
Print receipt every where! With high configuration,S8 can be used widely in Lottery,Express,Mobile-Topup,Taxfree shop,Traffic ticket.
| WCT-S8 Android POS Configuration |
| Type |
Product Spec |
| Platform |
Processor |
MTK MT8735 ( 4-Core ARM Cortex-A53,1.3GHz ) |
| RAM |
1GB / 2GB LPDDR3 |
| FLASH |
8GB / 16GB EMMC |
| OS |
Android 7.0 Security Payment OS |
| Security Processor |
MAXIM MAX32555 (DeepCover Secure microcontroller) |
| Wireless |
Wireless Standard |
LTE-FDD/TDD-LTE/TDS-CDMA/WCDMA/CDMA2000/EDGE/GPRS |
| 4G |
LTE-FDD : B1/B3/B8 (TBD) |
| TDD-LTE : B38/B39/B40/B41 |
| 3G |
UMTS/HSPA/HSPA+/DC-HSPA+ : B1/B8 |
| TDS-CDMA : B34/B39 |
| EVDO : BC0 |
| 2G |
EDGE/GPRS : B3/B8 |
| WLAN |
2.4GHz ISM 2402MHz~2482MHz |
| BT 4.1 LE |
2.4GHz ISM 2402MHz~2480MHz |
| USIM |
Card Slots |
4 PSAM slots, 2 SIM slots |
| GPS |
GPS |
GPS, GLONASS |
| LCD and Touch Panel |
LCD Pixels |
720*1280 IPS |
| LCD |
5.5 inch |
| Touch Panel |
G+F+F, Capacitive Color Touch,Multi Touch, signature capable, video capable |
| Keypad |
Physical key |
Power ON/OFF, Volumn up, Volumn down. |
| Virtual Keypad |
Home Key, Function key, Numeric Keys. |
| Audio |
Speaker |
1 W x 1 |
| Microphone |
Voice input |
| USB |
USB Standard |
USB Type C 2.0 |
| Other |
Charge Battery, OTG support |
| Camera |
REAR |
8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video. |
| FRONT |
2Mega Pixels, CMOS, JPEG picture, Video. |
| NFC |
Standard |
ISO14443 type A/B ( ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support ) |
| Spectrum |
13.56MHz |
| IC card |
Contactless Card |
NFC 13.56 MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC 14443&7816 |
| EMV card |
Smart Card |
EMV & PBOC Compliant |
| MSR |
Magnetic Card |
ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec. |
| Battery |
Battery type |
Li-ion polymer battery |
| Capacity |
3.7V, 5800mAh |
| Charger |
5V/2A |
| Certification |
ICC |
EMV contact L1 / PBCO L1 |
| EMV contact L2 / PBOC L2 |
| NFC |
EMV contactless L1 / qPBOC L1 |
| EMV contactless L2 / qPBOC L2 |
| Security |
PCI 5.0 |
| UPTS 2.0 |
| Operating environment |
Temperature |
-5 to +50 °C |
| Relative humidity |
10 % to 85 % RH |
| Storage environment |
Temperature |
-10 to +60 °C |
| Relative humidity |
10 % to 90 % RH |
| Size and Weigt |
Dimension and Weight |
203mm*85mm*53mm, 480g with battery |
| Micro Printer |
Printing method |
Thermal-line dot method |
| Paper |
Thermal roll paper (standard) 57*40 mm |
| Effective Printing area |
48mm |
| Speed |
Maximum 70mm/sec(480 dot line/sec) |
| Printing resolutions |
8 dots/mm |
| Character |
12*24dots and 24*48 dots |
| Number of columns |
32columns/line |
| Printing head life |
Pulse resistance:100 million pulses/dot (under our standard conditions); |
| Abrasion resistance: paper traveling distance 50km (print ratio:25% or less) |
FAQ:
1. Are you Manufacturer or Trading Company?
Re: We are professional manufacturer specialized in thermal printer OEM accepted, we have focused on the printers and printing solutions for 8 years.
2. What is the Minimum Order Quantity of POS terminal?
Re: We have no limit for MOQ, so you can even buy only 1 piece, Of course we can offer you a better price for large quantity.
3. Which Delivery Method can i choose?
Re: We accept all kinds of shipping ways including: express, air, sea, or pick up by customers' rep..
4. Can you offer driver/SDK for the POS terminal?
Re: Yes, we are supplying all windows driver, Win 9X/Win ME/Win 2000/WinNT/WinXP/Vista, and compatible with EPSON, SAMSUNG.
5. What language do the printers support?
Re: Our printer can support multiple language, e.g. English, Spanish, Arabic, Persian, Italian, Portuguese, French, Danish, Polish, Swedish, Vietnamese, German, Chinese, etc.(Customizable)
6. Can I get the product with my request?
Re: OEM and ODM products is available for you, as long as order meet the MOQ. We have engineers for logo and products design, it only needs a little extra cost.
7. What is the delivery date if I place the order?
Re: Most of the product are in stock, and can be sent to you within 3 days after payment received, bulk qty lead time is about 5-15 days
8. Do you support technical support?
Re: We supply free technical service, also Manual and Driver.
Company Information:
Wisecard (a WiseGroup company) is a global solution provider that has been providing innovative payment and secure solutions to financial institutions, government entities and telco operators worldwide.
Wisecard have been providing EMV smart card, EMV biometric card, EMV perso software, card issuance, EMV embossers, POS terminals, smart banking, smart teller machine, kiosk, vending machine, biometric POS, Hardware Secure Module, mobile payment platform, private label card solution, prepaid card solution, card management system to partners in more than 60 countries worldwide. Wisecard’s product suite empower large global financial institutions and government sectors as well as small to medium sized retail banks.
Wisecard solutions are adapting to the highest and latest secure standard, and the solutions have been fully tested and certified by international test labs, like FBI, STQC, EMV, PCI DSS, PA DSS, VISA, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay and etc.
