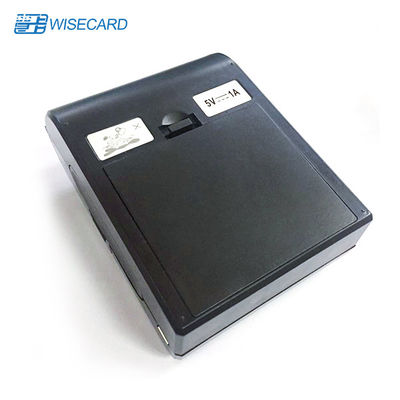

Portable Bluetooth Thermal Printer with IOS/Android Phones 58mm
Application:
Mobile POS/Retail
Hospitality
Packing citation
Deliveries
Field reparts/Installation
Warehouse/ logistics
Utility billing/meter reading
| Model |
PTP-II |
| Dimension |
79*110*45mm |
| Print method |
Line thermal printer |
| Paper width |
57mm |
| print width |
48mm |
| Weight ( g) |
235 (not including the paper roll) |
| Max diameter of paper roll |
40mm |
| Dot per lie |
384 dots/line |
| internal characters |
ASCII CH(8x16,9x17,9x24,12×24); GBK(16x16,24×24) |
| Print speed |
50~80mm/s |
| Life cycle time |
50km(printing density under 12.5%)/100 million pulses |
| text and graphic Support |
English, figure, symbol, Chinese, graph, curve, icon pre-stored, barcode |
| (CODE39EAN13EAN8 CODABARCODE128CODE93ITF) |
| QR code ,PDF417 |
| Dot pitch (resolution) |
203DPI/8 dots/mm |
| interface |
IrDa/Raw-IR/wifi/bluetooth+RS232+Mini USB |
| Power |
2000mAh 7.4V rechargeable Lithium battery |
| Recharge adapter |
Stand by recharging / AC adapter |
| Self-check |
Without paper / cover open |
| Black mark test |
Supported |
| Paper feeding |
Easy paper loading |
| commands |
ESC/POS compatible with order sets |
| Paper cut |
By hands |
| operate setting |
Temperature -10°C~50°C ; Humidity 20%~85% |
| Recharge Setting |
Temperature 5°C~40°C; Humidity 20%~85% |
| Storage Setting |
Temperature -20°C~70°C ; Humidity 5%~95% |
| Standard accessories |
Long-term preservable paper, AC adapter, li-ion battery. USB cable, leather coat |
| Optional accessories |
Serial interface cable/CD |
FAQ:
Q: Can you provide OEM or ODM service?
A: Yes, we have strong developing team to support OEM and ODM service. The products can be made according to your request.
Q: What’s your MOQ?
A: 1pcs. For our first cooperation, your small order is acceptable, but the price is a little highly, you know, the price is based on quantity.
Q: Do you provide samples? Is it for free?
A: Yes, we will offer free samples without shipping for testing.
Q: How can you provide technical support?
A: 7*24 Online support.
Q: Do you accept OEM?
A: We have our own Brand-Unidax. OEM is also acceptable.
Q: What is the cost for your OEM service?
A: No need to pay extra for our OEM service if order qty over 1000pcs. Further discussion of other quantity.
Q: What payment methods do you accept?
A: T/T.
Q: What is your warranty?
A: 12 months for our products.
Q: How can I become your agent?
A: Welcome to become our agent. Please contact with our sales for application form for our evaluation.
Company Information:
Wisecard (a WiseGroup company) is a global solution provider that has been providing innovative payment and secure solutions to financial institutions, government entities and telco operators worldwide.
Wisecard have been providing EMV smart card, EMV biometric card, EMV perso software, card issuance, EMV embossers, Smart POS machine, Android POS, POS terminals, smart banking, smart teller machine, kiosk, vending machine, biometric POS, Hardware Secure Module, mobile payment platform, private label card solution, prepaid card solution, card management system to partners in more than 60 countries worldwide. Wisecard’s product suite empower large global financial institutions and government sectors as well as small to medium sized retail banks.
Wisecard solutions are adapting to the highest and latest secure standard, and the solutions have been fully tested and certified by international test labs, like FBI, STQC, EMV, PCI DSS, PA DSS, VISA, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay and etc.
Notes: FBI, STQC, EMV, PCIDSS, PADSS, Visa, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay is a registered trademark. All trademarks referenced here are the property of the respective owners.
