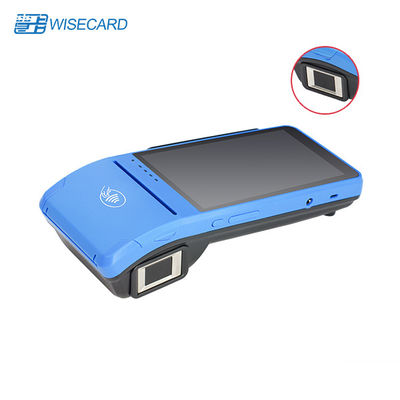

PCI EMV Android POS Terminal Point of Sale with FBI Certified Fingerprint Reader
WCT All in One Android Tablet POS Machine is an ideal android tablet pos system for all your daily tasks, providing laptop performance, tablet mobility, a stunning full HD and IPS touchscreen. The tablet is equipped with MT6797 10-core processor and boosts up to 2.3 GHz. Utilising Mali-T880 GPU and high config(4GB memory+64GB storage), WCT-T90FA brings a smooth software experience, high quality 4K media decoding and exceptional battery life.
★ 5.5 inch capacitive screen, less than 1kg, mainstream size of market mobile devices.
★ High-speed Printer
★ 5800mAH Large Battery Super Endurance
Applicable Industries:
★ Supermarket
★ Fresh Market
★ Restaurant Chain
★ Coffeehouse Chain
★ Franchise Store
★ Convenience Store
| WCT-S8 Android POS Configuration |
| Type |
Product Spec |
| Platform |
Processor |
MTK MT8735 ( 4-Core ARM Cortex-A53,1.3GHz ) |
| RAM |
1GB / 2GB LPDDR3 |
| FLASH |
8GB / 16GB EMMC, TF Card Supported |
| OS |
Android 7.0 Security Payment OS |
| Security Processor |
MAXIM MAX32555 (DeepCover Secure microcontroller) |
| Wireless |
Wireless Standard |
LTE-FDD/TDD-LTE/TDS-CDMA/WCDMA/CDMA2000/EDGE/GPRS |
| 4G |
LTE-FDD : B1/B3/B8 (TBD) |
| TDD-LTE : B38/B39/B40/B41 |
| 3G |
UMTS/HSPA/HSPA+/DC-HSPA+ : B1/B8 |
| TDS-CDMA : B34/B39 |
| EVDO : BC0 |
| 2G |
EDGE/GPRS : B3/B8 |
| WLAN |
2.4GHz ISM 2402MHz~2482MHz |
| BT 4.1 LE |
2.4GHz ISM 2402MHz~2480MHz |
| USIM |
Card Slots |
4 PSAM slots, 2 SIM slots |
| GPS |
GPS |
GPS, GLONASS |
| LCD and Touch Panel |
LCD Pixels |
720*1280 IPS |
| LCD |
5.5 inch |
| Touch Panel |
G+F+F, Capacitive Color Touch,Multi Touch, signature capable, video capable |
| Keypad |
Physical key |
Power ON/OFF, Volumn up, Volumn down. |
| Virtual Keypad |
Home Key, Function key, Numeric Keys. |
| Audio |
Speaker |
1 W x 1 |
| Microphone |
Voice input |
| USB |
USB Standard |
USB Type C 2.0 |
| Other |
Charge Battery, OTG support |
| Camera |
REAR |
8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video. |
| FRONT |
NA |
| NFC |
Standard |
ISO14443 type A/B ( ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support ) |
| Spectrum |
13.56MHz |
| IC card |
Contactless Card |
NFC 13.56 MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC 14443&7816 |
| EMV card |
Smart Card |
EMV & PBOC Compliant |
| MSR |
Magnetic Card |
ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec. |
| Battery |
Battery type |
Li-ion polymer battery |
| Capacity |
3.7V, 5800mAh |
| Charger |
5V/2A |
| Certification |
ICC |
EMV contact L1 / PBCO L1 |
| EMV contact L2 / PBOC L2 |
| NFC |
EMV contactless L1 / qPBOC L1 |
| EMV contactless L2 / qPBOC L2 |
| Security |
PCI 5.0 |
| UPTS 2.0 |
| Operating environment |
Temperature |
-5 to +50 °C |
| Relative humidity |
10 % to 85 % RH |
| Storage environment |
Temperature |
-10 to +60 °C |
| Relative humidity |
10 % to 90 % RH |
| Size and Weigt |
Dimension and Weight |
210mm*85mm*53mm, 480g with battery |
| Micro Printer |
Printing method |
Thermal-line dot method |
| Paper |
Thermal roll paper (standard) 57*40 mm |
| Effective Printing area |
48mm |
| Speed |
Maximum 70mm/sec(480 dot line/sec) |
| Printing resolutions |
8 dots/mm |
| Character |
12*24dots and 24*48 dots |
| Number of columns |
32columns/line |
| Printing head life |
Pulse resistance:100 million pulses/dot (under our standard conditions); |
| Abrasion resistance: paper traveling distance 50km (print ratio:25% or less) |
FAQ:
Q:How long is the warranty time for your products?
A: Our officially promised warranty time is one whole year after delivery at best.
Q: Do you have your own enclosure factory?
A:Yes we do have our own enclosure factory,and we have the best structural Engineer,we hope to provide you with best screen and shape,so OEM is also welcome.
Q:Do you give any discount ?
A: We are Manufacturer, so we are able to give you the best price and best service at the same time.
Q: Is your company a real manufacturer?
A: Our company is the professional manufacturer in Shenzhen, you are the mostly welcomed to visit our factory anytime.
Company Information:
Wisecard (a WiseGroup company) is a global solution provider that has been providing innovative payment and secure solutions to financial institutions, government entities and telco operators worldwide.
Wisecard have been providing EMV smart card, EMV biometric card, EMV perso software, card issuance, EMV embossers, POS terminals, smart banking, smart teller machine, kiosk, vending machine, biometric POS, Hardware Secure Module, mobile payment platform, private label card solution, prepaid card solution, card management system to partners in more than 60 countries worldwide. Wisecard’s product suite empower large global financial institutions and government sectors as well as small to medium sized retail banks.
Wisecard solutions are adapting to the highest and latest secure standard, and the solutions have been fully tested and certified by international test labs, like FBI, STQC, EMV, PCI DSS, PA DSS, VISA, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay and etc.
Notes: FBI, STQC, EMV, PCIDSS, PADSS, Visa, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay is a registered trademark. All trademarks referenced here are the property of the respective owners.
