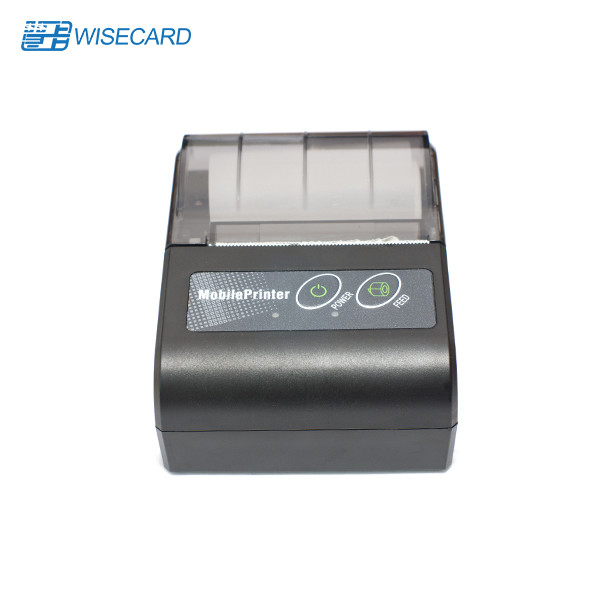

OEM 58mm Bluetooth Thermal Printer , Bluetooth Portable Mobile Printer
Contact Person : Steven Yao
Phone Number : +86-13424312532
WhatsApp : +8613424312532
| Minimum Order Quantity : | Negotiable | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | export carton | Delivery Time : | 1-4 weeks |
| Payment Terms : | T/T | Supply Ability : | 30000 Set/Sets per Month |
| Place of Origin: | China | Brand Name: | Wisecard |
|---|---|---|---|
| Certification: | CE Rohs | Model Number: | T30 |
|
Detail Information |
|||
| Type: | Thermal Printer | Application: | Receipt Printing |
|---|---|---|---|
| Charge: | USB Charging | Paper Roll: | 58mm |
| Color: | Dark | Interface Type: | Bluetooth+USB,USB+android And IOS Bluetooth System |
| Style: | Black And White,Color | Use: | Document Printer |
| High Light: | 58mm portable bluetooth wireless mini mobile printer,T30 portable bluetooth wireless mini mobile printer,Rohs portable receipt printer for android |
||
Product Description
| Model | PTP-II |
| Dimension | 79*110*45mm |
| Print method | Line thermal printer |
| Paper width | 57mm |
| print width | 48mm |
| Weight ( g) | 235 (not including the paper roll) |
| Max diameter of paper roll | 40mm |
| Dot per lie | 384 dots/line |
| internal characters | ASCII CH(8x16,9x17,9x24,12×24); GBK(16x16,24×24) |
| Print speed | 50~80mm/s |
| Life cycle time | 50km(printing density under 12.5%)/100 million pulses |
| text and graphic Support | English, figure, symbol, Chinese, graph, curve, icon pre-stored, barcode |
| (CODE39EAN13EAN8 CODABARCODE128CODE93ITF) | |
| QR code ,PDF417 | |
| Dot pitch (resolution) | 203DPI/8 dots/mm |
| interface | IrDa/Raw-IR/wifi/bluetooth+RS232+Mini USB |
| Power | 2000mAh 7.4V rechargeable Lithium battery |
| Recharge adapter | Stand by recharging / AC adapter |
| Self-check | Without paper / cover open |
| Black mark test | Supported |
| Paper feeding | Easy paper loading |
| commands | ESC/POS compatible with order sets |
| Paper cut | By hands |
| operate setting | Temperature -10°C~50°C ; Humidity 20%~85% |
| Recharge Setting | Temperature 5°C~40°C; Humidity 20%~85% |
| Storage Setting | Temperature -20°C~70°C ; Humidity 5%~95% |
| Standard accessories | Long-term preservable paper, AC adapter, li-ion battery. USB cable, leather coat |
| Optional accessories | Serial interface cable/CD |
1. About Price:
The price is negotiable. It can be changed according to your quantity or package. When you are making an inquiry, please let us know the quantity you want.
2. About Sample:
Sample is Free, but the air freight is collected or you pay us the cost in advance.
3. About language and operation system:
Our printers support 48 different languages include English, Russian, Spanish and so on. It backups IOS, Android, Windows, Linux, Oppos operation systems.
4. About warranty:
Each printer will have one year (12 months) warranty. Free components will be offered for repair in warranty period, if the issue caused by non-artificial damages.
5. About MOQ:
No MOQ limitation for the standard products, but the unit price is different. For customized production, you can discuss the MOQ with our sales rep.
6. About Shipment:
We accept all kinds of shipping ways including: express, air, sea, car, or pick up by customers personally.
7. About Payment:
Terms For mass order, you can pay us by using T/T.
About samples order, T/T is acceptable.
