Self Service Video Smart Teller Machine Touchscreen Card Reader Printer Scanner

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : export carton Delivery Time : 2-6 weeks
Payment Terms : T/T Supply Ability : 1000 units per month
Place of Origin: China Brand Name: Wisecard
Certification: CE, Rohs Model Number: 260T

Detail Information

Application: Bank Branch CPU: Industrial PC Core I Series
Display: 19 Inch TFT LED Touch Screen EPP: PCI 4.0 Certified 16 Buttons
Embossing: Support Embossing And Rear Indent, Tipping Camera: 720P
CardReader: Contactless, Contact, Magstripe Fingerprint: Capacitive Fingerprint Scanner
Highlight:

Self Service Smart Teller Machine

,

Rohs Smart Teller Machine

,

Bank branch video teller machine

Product Description

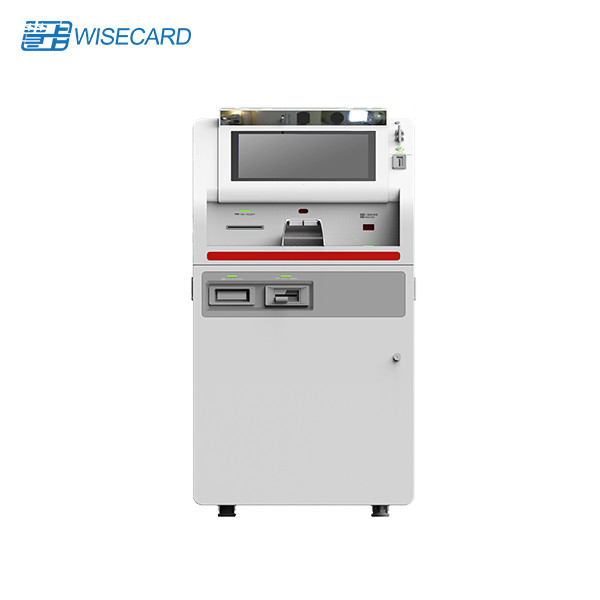

Self Service Kiosk Video Teller Machine Touchscreen Card Reader Printer Scanner



WCT-260T is the newest smart self service bank kiosk designed to improve branch efficiency and enhance user experience. Combined with Wisecard smart banking system and machine control platform it builds up a turn-key smart branch solution for commercial banks.



Financial institutions, service bureaus, retailers, governments and other card issuers can now issue in a highly secure manner personalized embossed cards on demand, either individually, or in low-volume batches with our instant issuance system. This lobby system empowers Banks to enhance their customer experience, or implement new forms of customer service provision.



Wisecard Smart Banking Solution

The Wisecard Smart Banking solution is highly compatible with numerous of CMS packages and Third Party systems.

Additionally we offer a Software Development Kit(SDK)to implement customizations inhouse,or customization service to meet a bank' s specific requirements.



FEATURES



SMART

Smart Terminals

Smart Kiosks

Smart Service

EFFICENCY

Better Efficiency

Cost Saving

High Performance

UNIFIED

Unified Platform

Unified Interface

Unified Business Process

PERSONALIZED

Personalized Design

Personalized Service

Personalized Culture



Function Description
Self-service card replacement Support replacing mag-stripe cards into chip cards with the same card number. The old card is stored in a separate compartment and managed safely
Enrollment and information collection ID card based enrollment with collection of customer data and its verification via internet is supported. The Device is equipped to collect the customer’s photograph, fingerprint data, electronic signature and more.
Self-Service interface for basic financial transactions Many common workflows for inquiries, payment transfers, top-up payment, electronic signing of contracts or agreements (for as E-banking, mobile banking) and more.
Intermediate agent business Securities, funds, foreign exchange, financial products marketing;
Utility Payments (water, electricity, gas, mobile phone), Payments to urban transport cards, ETC, medical cards top-up and etc.
Self-service card issuance Self-Service Issuance of cards for banking or other high security cards.
Complete range of flat and embossed printing of multi-process cards including magnetic stripe, contact IC and contactless IC cards can be issued within 60 seconds.
Supports instant debit and credit card dispensing;
Support of re-issuance of highly customized (DIY) cards of replacement or lost cards.
Self-service U-key dispensing (optional) Support U-key, Password Manager dispensing, scanning of bar-codes, separately lockable card cassettes





WCT-260T Smart Teller Machie Specification
Module Technical Specifications
Cabinet & Accessories Hard, thick and non-deforming materials
Surface treatment process: rust-proof, antiseptic, anti-friction
Neat internal wiring, using drag track and front door for easy maintenance
  Independent ventilation system in line with bank requirements
SIU Sensors and Indicators Unit
Industrial PC CPU: Core i series or equivalent technical indicators
Hard drive: 500G
Memory: 4G
Display Display: 19'' 4:3 TFT LED
Resolution: 1024*768 (inclusive) or more
Anti-glare (film): left and right viewing angle < = 30 degree
Touch Screen Touch Screen: 19''4:3
Resolution: 4096*4096
Special requirements: anti-dust/ riot/ scratch
Receipt Printer Support full graphic printing
Width: 80mm
Chinese font: Arial or traditional; English font
Support GB 18030 character set and GBK character set
Black spot recognition
Continuous paper printing, automatic cutting, to provide semi-cut/ full cut function
EPP PCI 4.0 certified
16 buttons
Flat Card Printer
(with card reader)
Support duplex printing
PASS BCTC test and certification
Support PBOC, EMV standards
Six card hoppers with independent lock
Print: picture, photo, name, validity, CVV and etc
Six card-dispensing box, total capacity are: 600 pcs flat card
Double card-collecting box: total capacity: 150 pcs flat card
Embosser Support Embossing and rear indent, Tipping
Pass BCTC test and certification
Support PBOC, EMV standars
Camera Support concealment
Support 720P
ID Card Reader Electrically load in card
Meet the requirements of the Ministry of Public Security
Compulsory return ID card
Fingerprint Scanner Capacitive
Detection of dermis
Contactless Card Reader Secure module avaliable
Follow ISO/ IEC 14443 standard
Support EMV standard requirements
Power fail safeguard function for the data stored in the card reader
Human Sensor Can sense that customer pis standing in front
OS WIN7, WIN10 or other OS
Digital Pen Handwriting fidelity; Integrated handwritten singnature board+electromagnetic induction pen
Bar Code Scanner Support both one dimension and two-dimension code (QR code)



Packaging & Delivery

Port: shenzhen shekou seaport

Lead Time :

Quantity(Units) 1 - 10000 >10000
Est. Time(days) 30 To be negotiated

Supply Ability: 1000 Unit/Units per Day









Self Service Video Smart Teller Machine Touchscreen Card Reader Printer Scanner 0Self Service Video Smart Teller Machine Touchscreen Card Reader Printer Scanner 1Self Service Video Smart Teller Machine Touchscreen Card Reader Printer Scanner 2Self Service Video Smart Teller Machine Touchscreen Card Reader Printer Scanner 3Self Service Video Smart Teller Machine Touchscreen Card Reader Printer Scanner 4Self Service Video Smart Teller Machine Touchscreen Card Reader Printer Scanner 5


Company Information:


Wisecard (a WiseGroup company) is a global solution provider that has been providing innovative payment and secure solutions to financial institutions, government entities and telco operators worldwide.



Wisecard have been providing EMV smart card, EMV biometric card, EMV perso software, card issuance, EMV embossers, Smart POS machine, Android POS, POS terminals, smart banking, smart teller machine, kiosk, vending machine, biometric POS, Hardware Secure Module, mobile payment platform, private label card solution, prepaid card solution, card management system to partners in more than 60 countries worldwide. Wisecard’s product suite empower large global financial institutions and government sectors as well as small to medium sized retail banks.



Wisecard solutions are adapting to the highest and latest secure standard, and the solutions have been fully tested and certified by international test labs, like FBI, STQC, EMV, PCI DSS, PA DSS, VISA, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay and etc.



Notes: FBI, STQC, EMV, PCIDSS, PADSS, Visa, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay is a registered trademark. All trademarks referenced here are the property of the respective owners.
