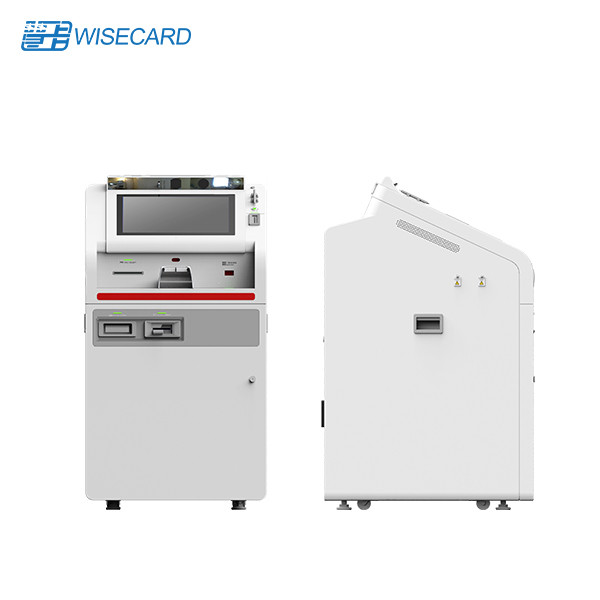

Touch Screen Intelligent Cash Deposit Machine Floor Standing

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : export carton Delivery Time : 2-6 weeks
Payment Terms : T/T Supply Ability : 1000 units per month
Place of Origin: China Brand Name: Wisecard
Certification: CE, Rohs Model Number: 260T

Detail Information

Application: Bank Branch CPU: Industrial PC Core I Series
Display: 19 Inch TFT LED Touch Screen EPP: PCI 4.0 Certified 16 Buttons
CardPrinter: Flat Card Printer With Card Reader Camera: 720P
CardReader: Contactless, Contact, Magstripe Fingerprint: Capacitive Fingerprint Scanner
Highlight:

Rohs intelligent cash deposit machine

,

Bank intelligent cash deposit machine

,

Touch Screen smart ATM machine

Product Description

Smart Teller Machine Bank ATM Card Issuer Reader Touch Screen Self Service Kiosk



1, Self service apply for a bank card.
2, Self service to check your account amount.
3, Self service to transfer money to other account.
4, With easy to operate smart touch screen and thermal receipte printer.
5, Easy for installation and maintenance.
6, With UPS power inside to avoid power faliure suddenly.
7, Floor standing can be put at any place.



Function Description

Self-service card replacement: Support replacing mag-stripe cards into chip cards with the same card number. The old card is stored in a separate compartment and managed safely

Enrollment and information collection: ID card based enrollment with collection of customer data and its verification via internet is supported. The Device is equipped to collect the customer’s photograph, fingerprint data, electronic signature and more.

Self-Service interface for basic financial transactions: Many common workflows for inquiries, payment transfers, top-up payment, electronic signing of contracts or agreements (for as E-banking, mobile banking) and more.

Intermediate agent business: 1. Securities, funds, foreign exchange, financial products marketing; 2. Utility Payments (water, electricity, gas, mobile phone), Payments to urban transport cards, ETC, medical cards top-up and etc.

Self-service card issuance: 1. Self-Service Issuance of cards for banking or other high security cards. 2.Complete range of flat and embossed printing of multi-process cards including magnetic stripe, contact IC and contactless IC cards can be issued within 60 seconds. 3.Supports instant debit and credit card dispensing; 4. Support of re-issuance of highly customized (DIY) cards of replacement or lost cards.

Self-service U-key dispensing (optional): Support U-key, Password Manager dispensing, scanning of bar-codes, separately lockable card cassettes





Instant Card Printer & Embosser

Compatible with all the features of unselectable card dispenser



Instant changing card with same card number

Instant personalized DIY card printing

(make new card with personalized picture/card number on spot)

Print and dispenser card according to spot customer' s needs(reduce sleep / inactive card)

Instant lost card replacement

Printing flat & embossed card within 60S

(debit card credit card, social security card, health card, business card, joint name card... )

Powerful capacity: 6 locked built in replaceable card cassette(600 cards)and2reject/old card collection box(150 cards)

Easy deployment: lobby, small floor space(66*77*120cm)



WCT-260T Smart Teller Machie Specification
Module Technical Specifications
Cabinet & Accessories Hard, thick and non-deforming materials
Surface treatment process: rust-proof, antiseptic, anti-friction
Neat internal wiring, using drag track and front door for easy maintenance
  Independent ventilation system in line with bank requirements
SIU Sensors and Indicators Unit
Industrial PC CPU: Core i series or equivalent technical indicators
Hard drive: 500G
Memory: 4G
Display Display: 19'' 4:3 TFT LED
Resolution: 1024*768 (inclusive) or more
Anti-glare (film): left and right viewing angle < = 30 degree
Touch Screen Touch Screen: 19''4:3
Resolution: 4096*4096
Special requirements: anti-dust/ riot/ scratch
Receipt Printer Support full graphic printing
Width: 80mm
Chinese font: Arial or traditional; English font
Support GB 18030 character set and GBK character set
Black spot recognition
Continuous paper printing, automatic cutting, to provide semi-cut/ full cut function
EPP PCI 4.0 certified
16 buttons
Flat Card Printer
(with card reader)
Support duplex printing
PASS BCTC test and certification
Support PBOC, EMV standards
Six card hoppers with independent lock
Print: picture, photo, name, validity, CVV and etc
Six card-dispensing box, total capacity are: 600 pcs flat card
Double card-collecting box: total capacity: 150 pcs flat card
Embosser Support Embossing and rear indent, Tipping
Pass BCTC test and certification
Support PBOC, EMV standars
Camera Support concealment
Support 720P
ID Card Reader Electrically load in card
Meet the requirements of the Ministry of Public Security
Compulsory return ID card
Fingerprint Scanner Capacitive
Detection of dermis
Contactless Card Reader Secure module avaliable
Follow ISO/ IEC 14443 standard
Support EMV standard requirements
Power fail safeguard function for the data stored in the card reader
Human Sensor Can sense that customer pis standing in front
OS WIN7, WIN10 or other OS
Digital Pen Handwriting fidelity; Integrated handwritten singnature board+electromagnetic induction pen
Bar Code Scanner Support both one dimension and two-dimension code (QR code)




FAQ:



Q:How long is the warranty time for your products?

A: Our officially promised warranty time is one whole year after delivery at best.



Q: Do you have your own enclosure factory?

A:Yes we do have our own enclosure factory,and we have the best structural Engineer,we hope to provide you with best screen and shape,so OEM is also welcome.



Q:Do you give any discount ?

A: We are Manufacturer, so we are able to give you the best price and best service at the same time.



Q: Is your company a real manufacturer?

A: Our company is the professional manufacturer in Shenzhen city, you are the mostly welcomed to visit our factory anytime.



Q:Do you have any certifitcations?

A: Yes,we have CE,CCC,FCC,RoHS.

Touch Screen Intelligent Cash Deposit Machine Floor Standing 0Touch Screen Intelligent Cash Deposit Machine Floor Standing 1Touch Screen Intelligent Cash Deposit Machine Floor Standing 2Touch Screen Intelligent Cash Deposit Machine Floor Standing 3Touch Screen Intelligent Cash Deposit Machine Floor Standing 4
