Self Service Video Smart Teller Machine Touchscreen Card Reader Printer Scanner
Contact Person : Steven Yao
Phone Number : +86-13424312532
WhatsApp : +8613424312532
| Minimum Order Quantity : | Negotiable | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | export carton | Delivery Time : | 2-6 weeks |
| Payment Terms : | T/T | Supply Ability : | 1000 units per month |
| Place of Origin: | China | Brand Name: | Wisecard |
|---|---|---|---|
| Certification: | CE, Rohs | Model Number: | 260T |
|
Detail Information |
|||
| Application: | Bank Branch | Standard: | EMV, PBOC, PCI |
|---|---|---|---|
| Display: | 19 Inch TFT LED Touch Screen | EPP: | PCI 4.0 Certified 16 Buttons |
| CardPrinter: | Flat Card Printer With Card Reader | Embossing: | Support Embossing And Rear Indent, Tipping |
| Camera: | 720P | Fingerprint: | Capacitive Fingerprint Scanner |
| High Light: | Smart virtual ATM machine,Touch Screen virtual teller machine,Video virtual teller machine |
||
Product Description

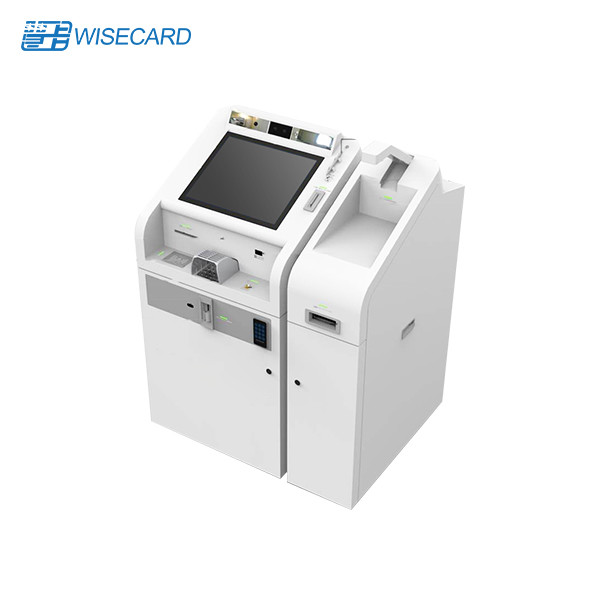

Touch Screen Smart Teller Machine Video Virtual Teller Machine for Bank Self Service
★ Minimizes Card Scheme operating expenses, reduce per-card costs, reduces dormant, or inactive cards
★ Reduced Security concerns and shipping costs due to shipment of blank cards to Bank branches
★ Instant Issuance of personalized cards, even with custom picture
★ Instant and painless replacement of expired or lost cards
★ Convenient front-facing single card input/output slot for easy operation
Quick Detail:
| Function Description | |
| Self-service card replacement | Support replacing mag-stripe cards into chip cards with the same card number. The old card is stored in a separate compartment and managed safely |
| Enrollment and information collection | ID card based enrollment with collection of customer data and its verification via internet is supported. The Device is equipped to collect the customer’s photograph, fingerprint data, electronic signature and more. |
| Self-Service interface for basic financial transactions | Many common workflows for inquiries, payment transfers, top-up payment, electronic signing of contracts or agreements (for as E-banking, mobile banking) and more. |
| Intermediate agent business | Securities, funds, foreign exchange, financial products marketing; |
| Utility Payments (water, electricity, gas, mobile phone), Payments to urban transport cards, ETC, medical cards top-up and etc. | |
| Self-service card issuance | Self-Service Issuance of cards for banking or other high security cards. |
| Complete range of flat and embossed printing of multi-process cards including magnetic stripe, contact IC and contactless IC cards can be issued within 60 seconds. | |
| Supports instant debit and credit card dispensing; | |
| Support of re-issuance of highly customized (DIY) cards of replacement or lost cards. | |
| Self-service U-key dispensing (optional) | Support U-key, Password Manager dispensing, scanning of bar-codes, separately lockable card cassettes |
| WCT-260T Smart Teller Machie Specification | |
| Module | Technical Specifications |
| Cabinet & Accessories | Hard, thick and non-deforming materials |
| Surface treatment process: rust-proof, antiseptic, anti-friction | |
| Neat internal wiring, using drag track and front door for easy maintenance | |
| Independent ventilation system in line with bank requirements | |
| SIU | Sensors and Indicators Unit |
| Industrial PC | CPU: Core i series or equivalent technical indicators |
| Hard drive: 500G | |
| Memory: 4G | |
| Display | Display: 19'' 4:3 TFT LED |
| Resolution: 1024*768 (inclusive) or more | |
| Anti-glare (film): left and right viewing angle < = 30 degree | |
| Touch Screen | Touch Screen: 19''4:3 |
| Resolution: 4096*4096 | |
| Special requirements: anti-dust/ riot/ scratch | |
| Receipt Printer | Support full graphic printing |
| Width: 80mm | |
| Chinese font: Arial or traditional; English font | |
| Support GB 18030 character set and GBK character set | |
| Black spot recognition | |
| Continuous paper printing, automatic cutting, to provide semi-cut/ full cut function | |
| EPP | PCI 4.0 certified |
| 16 buttons | |
| Flat Card Printer (with card reader) |
Support duplex printing |
| PASS BCTC test and certification | |
| Support PBOC, EMV standards | |
| Six card hoppers with independent lock | |
| Print: picture, photo, name, validity, CVV and etc | |
| Six card-dispensing box, total capacity are: 600 pcs flat card | |
| Double card-collecting box: total capacity: 150 pcs flat card | |
| Embosser | Support Embossing and rear indent, Tipping |
| Pass BCTC test and certification | |
| Support PBOC, EMV standars | |
| Camera | Support concealment |
| Support 720P | |
| ID Card Reader | Electrically load in card |
| Meet the requirements of the Ministry of Public Security | |
| Compulsory return ID card | |
| Fingerprint Scanner | Capacitive |
| Detection of dermis | |
| Contactless Card Reader | Secure module avaliable |
| Follow ISO/ IEC 14443 standard | |
| Support EMV standard requirements | |
| Power fail safeguard function for the data stored in the card reader | |
| Human Sensor | Can sense that customer pis standing in front |
| OS | WIN7, WIN10 or other OS |
| Digital Pen | Handwriting fidelity; Integrated handwritten singnature board+electromagnetic induction pen |
| Bar Code Scanner | Support both one dimension and two-dimension code (QR code) |
Q: What's your delivery time ?
A: Normally the delivery time is within 15 days. It also depends on your project and our schedule, such as the size, quantity, etc.
Q: How do you pack your products ?
A: Generally, shelves are flat packed by air bubble film/ film in standard export cartons. Other packing like wooden box are available to clients' requirement.
Q:How do you ensure the quality of your products ?
A: 1) High quality material:MDF ( the highest class), tempered glass, good stainless steel, high transparency Acrylic and UL/CE approval led lighting etc.
2) Skillful workers with rich experience: 90% workers have been in producing our goods for more than 10 years.
3) Professional QC: Our professional QC make inspections strictly during each process.
Q: Can you design store/shop for me ?
A: Yes, we have a experienced design team leaded by our director who work in shop display design for years.
Q: What's your MOQ ?
A: Our MOQ is 1 sets/pcs or 1 whole shop project.
Company Information:
Wisecard (a WiseGroup company) is a global solution provider that has been providing innovative payment and secure solutions to financial institutions, government entities and telco operators worldwide.
Wisecard have been providing EMV smart card, EMV biometric card, EMV perso software, card issuance, EMV embossers, Smart POS machine, Android POS, POS terminals, smart banking, smart teller machine, kiosk, vending machine, biometric POS, Hardware Secure Module, mobile payment platform, private label card solution, prepaid card solution, card management system to partners in more than 60 countries worldwide. Wisecard’s product suite empower large global financial institutions and government sectors as well as small to medium sized retail banks.
Wisecard solutions are adapting to the highest and latest secure standard, and the solutions have been fully tested and certified by international test labs, like FBI, STQC, EMV, PCI DSS, PA DSS, VISA, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay and etc.
Notes: FBI, STQC, EMV, PCIDSS, PADSS, Visa, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay is a registered trademark. All trademarks referenced here are the property of the respective owners.
